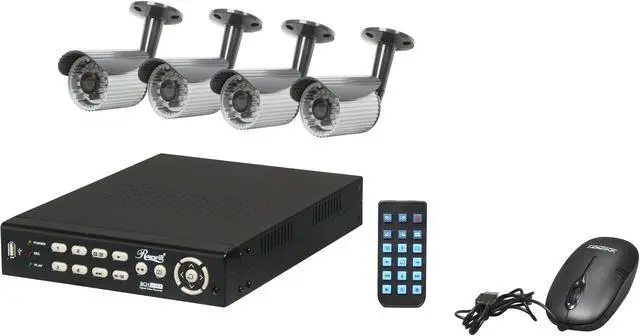

Rosewill RSVA-11001 8 channel + 4 Sony 1/4" CCD 21 IR LED Bullet Cameras, H.264 High performance DVR, Remote Monitoring/Real time record DVR Kit (HD Sold Separately)

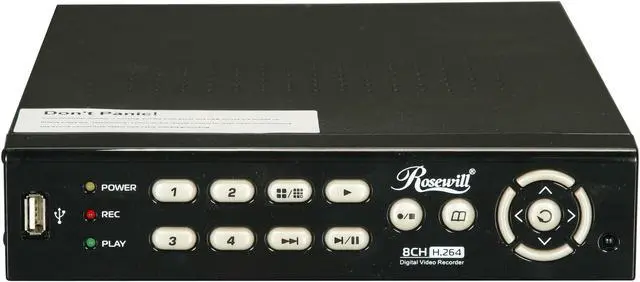

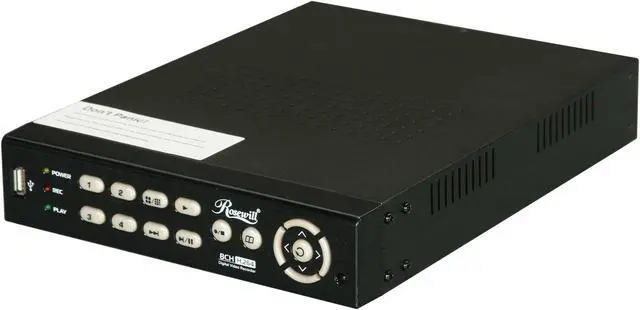

The Rosewill RSVA-11001 8-channel DVR is implemented with H.264, the latest video compression / decompression technology, to give users more flexibility and stability on monitoring their valuable personal and business assets. Comprehensive network support allows you to access the unit remotely from both Internet via PC running Internet Explorer and select portable devices including iPhone/iPad, Android, Blackberry, Windows Mobile and Symbian S60. The advanced operating system based on Linux packs features like editable watermark name, individual channel frame/resolution setup, individual schedule setup for each channel, picture snapshot in Playback Mode and PIP support.

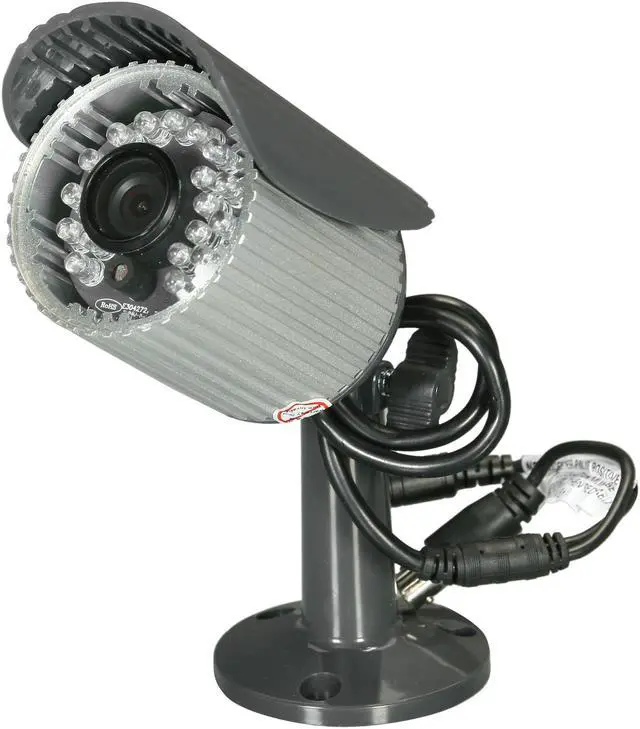

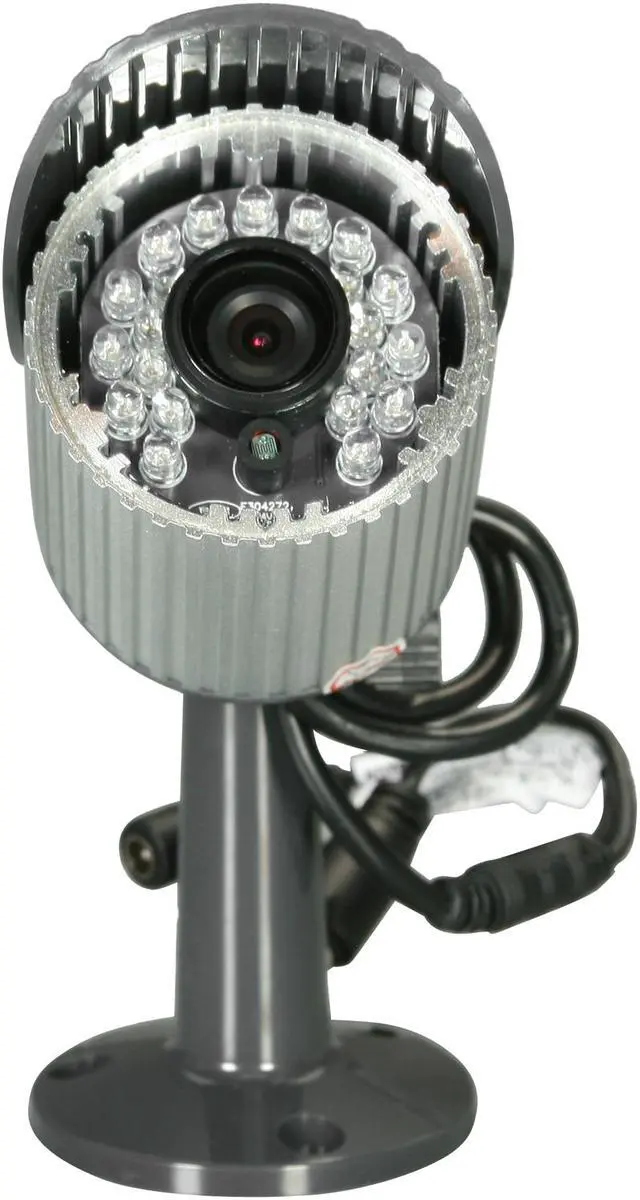

The 4 cameras utilize a 1/4" Sony CCD sensor to produce 420 TV lines of resolution and can be used indoors and/or outdoors with IP66 Weather Proof rating. The camera’s 21 powerful IR LEDs produce high quality image in complete darkness and clear crisp images throughout the day.
H.264 Compression TechnologyH.264 technology delivers stunning video quality at remarkably low data rates. An upgrade to the MPEG4 standard, this ultra-efficient technology gives you excellent results across a broad range of bandwidths. H.264 compression also allows you to save more video footage than traditional compression methods.
Remote MonitorAlways keep an eye on the situation with remote monitoring via network or 3G mobile technology. You can also take PTZ control when viewing on 3G smartphone.
Superior CamerasThe IP66 rated cameras come equipped with 1/4" Sony CCD and 21 IR LEDs to produce high quality image in both day and night.
Feature-Rich SystemThe powerful system packs a good list of features to facilitate your setup and operation, as well as optimize its performance and function. Powerful resolution & frame setting for each channel, up to D1 resolution recording enables, flexible schedule setup for each channel, simply to hold &drag the mouse to create the motion area, pause & snapshot all the images you require in playback, up to 1440 x 900 VGA resolution, Choosing the control side you want, hold & drag digital zoom-in area selection anywhere on the screen and up to 2x PIP support put you in the driver's seat for full control and setup of the system.
USB 2.0 external hard drive (Up to 2TB, FAT 32) / USB 2.0 flash drive / USB 2.0 CD/DVD-RW / Network
Network

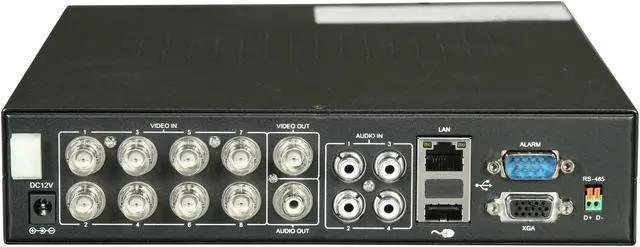

Network Connection
RJ45, 10M/100M
Network Protocol
TCP/IP, DHCP, DDNS, SMTP , PPPoE, 3G WCDMA
Features
Features
H.264 Compression Algorithm
3G USB Network Support: DVR can allow the user to use USB 3G modem to connect with Internet.
3G Smart Phone Surveillance Support: Synchronize Live Viewing PTZ control is available
Convenience Quick Menu Bar: Friendly for use
Watermark: Editable watermark name
Individual Channel FRAME/RESOLUTION Setup: Powerful resolution & frame setting for each channel Up to D1 resolution recording
Individual Schedule Setup for Each Channel: Flexible schedule setup for each channel
Unlimited Motion Area Setup: Simply to hold &drag the mouse to create the motion area
Powerful Individual Factory Default Setting: Default the single function you require only
Snapshoot Available in Playback Mode: Pause & snapshoot all the images you require in playback
Switchable Spot VGA/BNC Monitoring: Choose the control side you want Up to 1440 x 900 VGA resolution
Multi Level User Management: Maximum 17 users (ADMIN, USER1~16) Restriction for CHANNEL, MAIN MENU, SYSTME MENU, PTZ, LOG SEARCH, PLAY SEARCH, BACKUP, NETWORK
Digital Zoom-in in live & playback mode: Hold & drag digital zoom-in area selection anywhere on the screen
PIP (Picture in Picture): Up to 2 x PIP available
Smart Backup: Support external DVD-RW, Hard Drive (Up to 2TB, FAT 32) and USB flash drive
Support Touch Panel Screen
Powerful Event
ESD Surge-protection for video filter
Operating System
Linux
Power Supply
DC 12V/3A (AC100V~240V 50/60Hz)

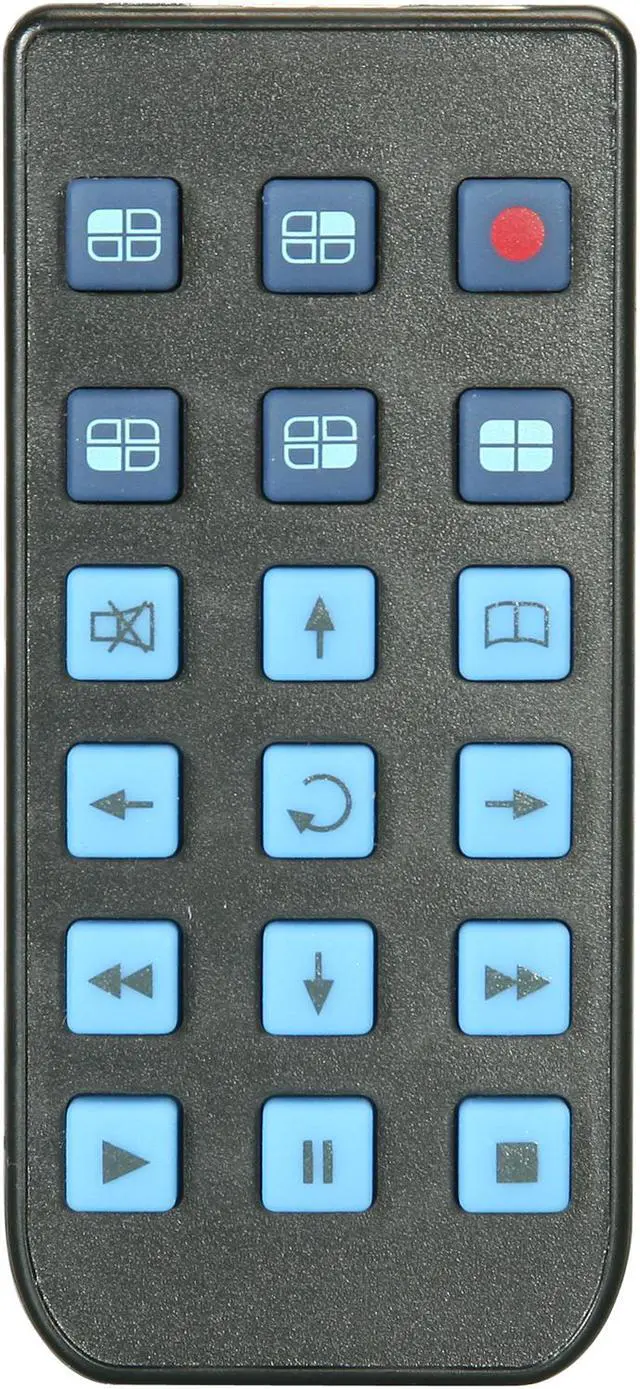

Remote Control
Yes
Bundle
Bundled Camera Number
4

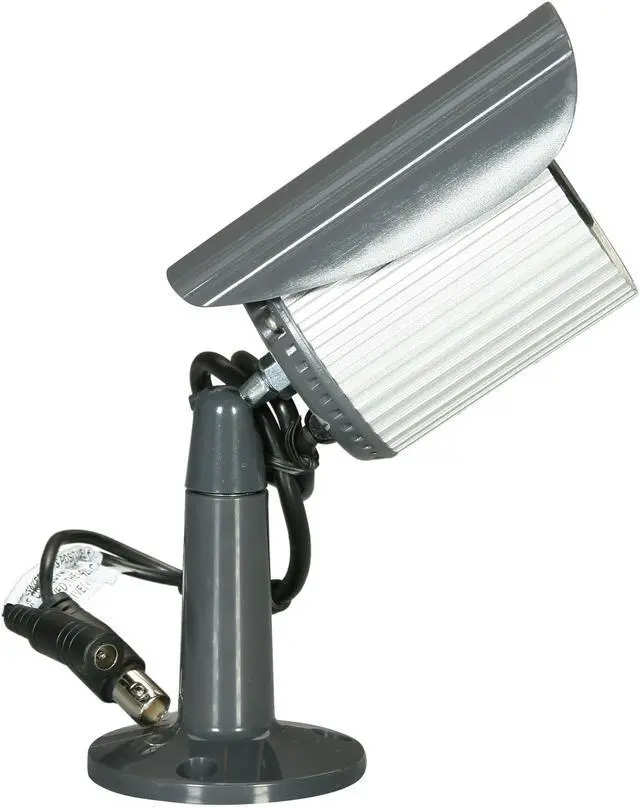

Bundled Camera Spec

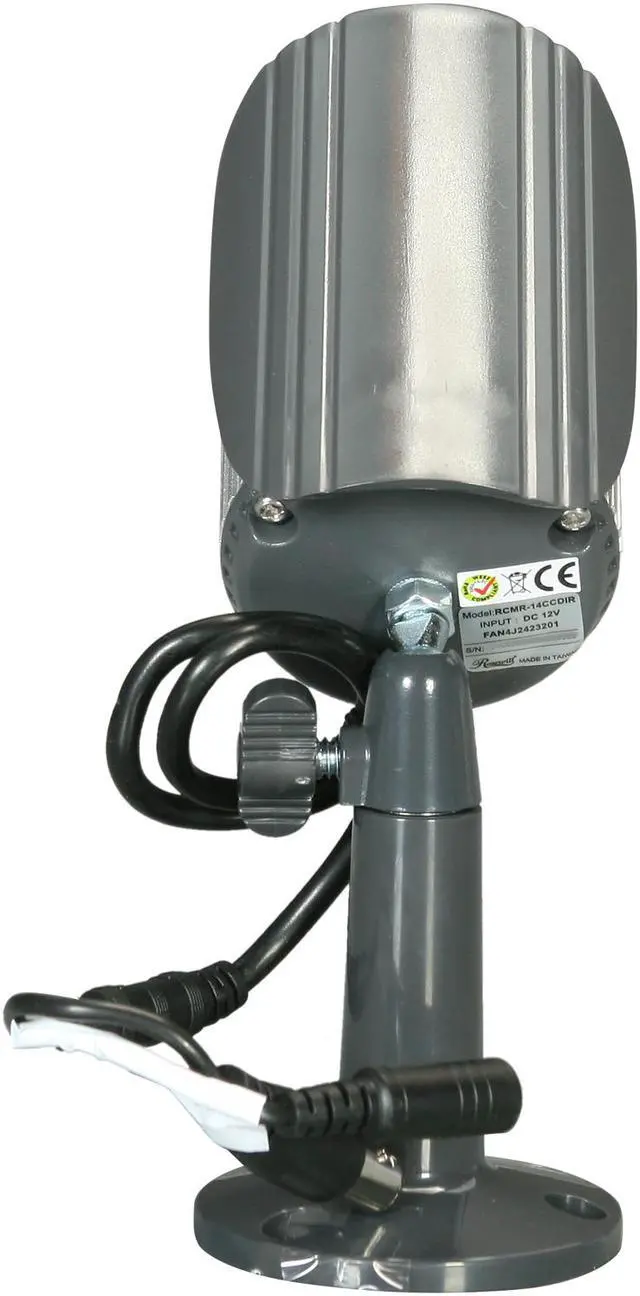

Image Sensor: 1/4" Sony CCD Len: 2.9mm View Angle: 75 Degree IR Distance: 49.2 ft. (15M) IR LED: 21pcs Min Illumination: 0 LUX / F1.2 TV System: NTSC Effective Pixels (NTSC): 510(H)X492(V) Horizontal Resolution: 420 TV Line Electronic Shutter (NTSC): 1/60-1/100.000sec S/N Ratio: Max. 48dB (AGC off) Backlight Compensation: Auto Video Output: 1.0Vp-p. 75ohm (BNC)
Kit Feature Other
Compatible OS: Windows 2000, XP, Vista and 7
PTZ Control: Built-in RS485, support PELCO-P & PELCO-D, MIKAMI
Audio Compression: 8kHz x 16bit ADPCM
Playback Mode: PLAY / FF / SLOW / FWD / Frame by frame
Playback Search: Date/time, Event list
Multi-Channel Playback: Local: Playback 8 channels at the same time Network: Playback 1 channels at the same time
Internet Viewing: Internet Explorer 6 or Higher (Max. 8 users at once)
Smart Phone Viewing (via 3G): iPhone, Android, Blackberry, Windows Mobile and Symbian S60
Tablet PC Viewing: iPad, Android
Dimensions & Weight
Dimensions
8.7" x 11.3" x 1.9"
Weight
3.5 lbs.
Packaging

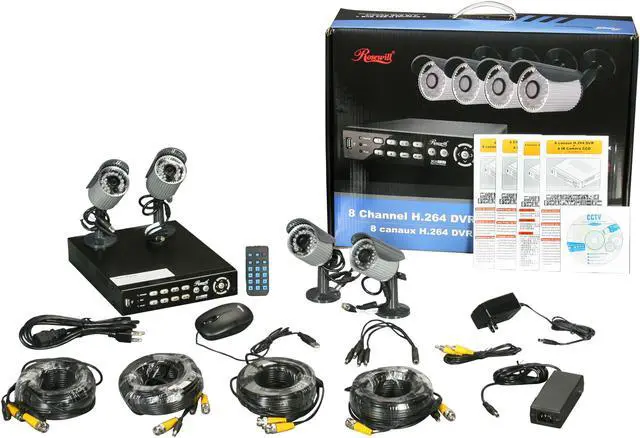

Package Contents
H.264 8CH DVR (RSVR-H08) x 1 1/4" CCD IR Camera (RCMR-14CCDIR) x 4 Slim Cable (82ft./25M) x 4 4 Way Power Cable Splitter x 1 Camera Bracket x 4 Camera Adapter (12V4.17A) x 1 DVR Adapter (12V3A) x 1 RCA Video Cable (2M) x 1 BNC TO RCA Convertor x 1 Remote Control x 1 USB Mouse x 1 Quick Manual x 1 Quick Installation Guide x 1 Software CD x 1
