Processor has 3 options suitable for the same motherboard:
1. Skylake 14nm CPU Intel Celeron 3855U 2 cores 2 threads 1.6GHz 2MB cache TDP 15W Intel HD Graphics 510.(also have 3867U, the price is higher $30)
2. Kaby Lake 14nm CPU Intel Core i3 7100U/I3 7020U 2 cores 4 threads 2.4/2.3G Ghz 3MB cache TDP 15W Intel HD Graphics 620. (Ship random per stock)
3. Kaby Lake 14nm CPU Intel Core i5 7200U 2 cores 4 threads 2.5Ghz 3MB cache TDP 15W Intel HD Graphics 620.
Choose the CPU, RAM, SSD as you want, place the order directly now.
1.Intel Kaby Lake Core i5 7200u Dual Core 2.5GHz. Intel Celeron Kaby Lake 3865U Dual Core 1.8Ghz, Intel Kaby Lake Core i3 7100U Dual Core 2.4Ghz.
2. Support 2*DDR41866/2133MHz, max 32G;
3.1*HD-MI+4*USB 3.0+6*intel LAN+1*RJ45 COM(support console)+1*Power switch;
4. 6*Intel i211AT 1000M lan card, support wake on lan;
5. 1*MSATA, 1*SATA3.0, 1*mini-PCIE( support wifi / bt);
6.AMI 64MB Flash ROM, support RPL/PXE diskless boot, electricity boot, WDT
7.DC-IN 12V power supply and AC power adapter;
8. High-quality Fanless pure aluminum Case;
9.Applied in Firewall, Network Server, Network Security, VPN Router etc.

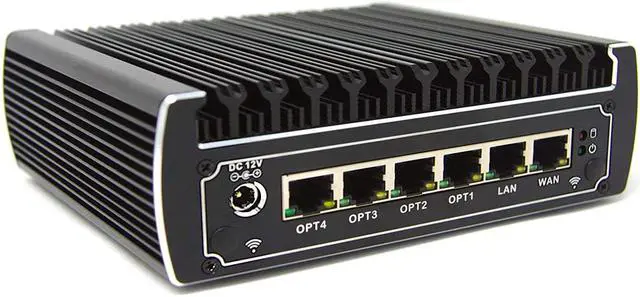

| Model | I7 Multi Lan Mini PC Firewall Aplliance |
|---|---|
| CPU | Intel Celeron 3855U, Intel Core i3 7100U, Intel Core i5 7200U |
| Chipset | Intel express chipset |
| Material of case | High quality pure aluminum mini pc case |
| Memory | support 2*DDR4 1866/2133MHz, supportmax 32G |
| Storage | 1*SATA3.0, 1*MSATA(32G/64G/128G/500G/1TB optional) |
| Network | 6*Intel I211-AT 10M/100M/1000M Lan |
| I/O | 4*USB3.0,1*RJ45 COM(support console),6*RJ45 Lan,1*HDMI(No sound output),1*DC-IN 12V,1*Power Switch |
| Built-in I/O | 1*Mini-PCIE Connector,1*Mini-SATA 3Gb/s connector,1*SATA port,1*MSATA port |
| BIOS | AMI 64Mbit Flash ROM |
| Expansion slot | 1*Mini-PCIE(support wifi/bt) |
| Mainboard | 120*120mm Nano ITX mainboard |
| Support OS | Windows 7, Windows 8, Windows 10, linux,pfsense |
| Power Supply | DC-IN 12V power supply and AC power adapter |
| Operation Temp | -10~60degC |
| Dimension | 155*126.5*52.5mm |
High quality aluminum case with exquisite
Cooling teech for quick heat disspation
Fanless design for dustproof and no noise during operation, give you a quite enviroment.
Stable Performance, Mostrueproof
No Noise, 24 Hours Running
Adopt Intel Celeron 3865U/Core i3 7100U/Core i5 7200U Dual Core, stable performance, lower power consumption, fast response
Dual Core Four Threads
64 Bit Processor
DDR4 Flash ROM
Power 15W
Support 2*SO-DIMM DDR4,
1*mSATA, 1*SATA3.0
1*Mini PCIE, 6*Intel Gigabit Lan
The pc can be mount on the back monitor by the vase bracket or put it on the desk, saving more space for you.
Rich interfaces to meet a variety of external devices.
155*126.5*52.5mm
Compact: only 6.1 x 5 x 2.1 inches
Low Power Usage: average of 15W
Simple design but not a simple function
Support Windows7/8/10/Linux/pfSense
More ports, more power
The 6 Port Vault is best for use in medium to large teams/companies.
Network Firewall
VPN
Support Multiple Management Funcations
Intelligent Flow Control Technology
Computer Room
Internet Cafes
Monitor
Network Server
