Specifications: Support Drive Size: 1 x M / B + M key M.2 PCIe NVMe SSD 2230/2242/2260/2280
Compatible Drive Type: NVMe M.2
Number of M.2: 1
Host Interface: 1 x SFF-8639
Transfer Rate: Up to 32Gbps
Support HDD Capacity: No Limitation
Structure / Material: Metal & ABS Plastic
Support Hot-Swap: Yes
Product Dimension (W x H x D): 2.76" x 0.37" x 3.98"
Product Net Weight: 0.15 lb.
SATA Connector Insertion Rate: 10,000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH

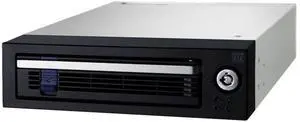

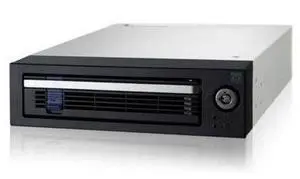

Mobile Rack Drives Support: Multi 2.5" Drives to 5.25" Bay
Mobile Rack Interface: SATA I/II/III
Specifications: Host Interface: 7 pin SATA x 4
Drive Fit: 2.5" SATA I / II / III SSD or hard drive x 4
Drive Bay: Single 5.25" half height device bay
Transfer Rate: Up to 6 Gb / sec. (depending on hard drive speed)
Insert& Extract connection Via: Direct SATA hard drive connection
Structure: SECC
Device Power: Single 4 pin Molex power
Drive Cooling:
Dual 40mm rear cooling fan + fan power switch
Metal heat dispersion
Power Indicator: Solid Green LED
HDD Access Indicator: Flashing Amber LED
Dimension (L x W x H): 6.70" x 5.75" x 1.63"
Weight: 1.77 lbs.
