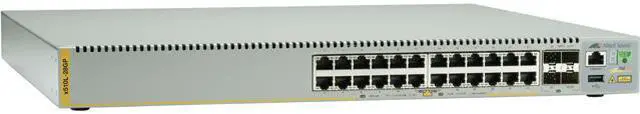

Allied Telesis x510 Series AT-X510L-28GP-50 Managed 24-port 10/100/1000T PoE+ Switch with 4 SFP+ Ports and a Fixed PSU

Be the first to review this product...
  • Up to 16K MAC addresses MAC Address Table
  • 2MB Buffer Memory
  • Managed
  • PoE
Specs
Reviews

Learn more about the Allied Telesis AT-X510L-28GP-50

Model
Brand Allied Telesis
Series x510 Series
Model AT-X510L-28GP-50
Switch Type Stackable Gigabit Switch
Format & Standards
Format Rackmount
Standards IEEE 802.2 Logical Link Control (LLC)
IEEE 802.3 Ethernet
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Static and dynamic link aggregation
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3u 100BASE-X
IEEE 802.3x Flow control - full-duplex operation
IEEE 802.3z 1000BASE-X
Network Management Type Managed
Ports & Interface
Primary Ports 24 x RJ45 + 4 x SFP
Primary Port Speed 10/100/1000Mbps
Data Transmission
MAC Address Table Up to 16K MAC addresses
VLAN Support Yes
Jumbo Frames Supports 13KB jumbo frames
Details
Buffer Memory 2MB
Security BPDU forwarding
Stacking ports can be configured as 10G Ethernet ports
Control Plane Prioritization (CPP) ensures the CPU always has sufficient bandwidth to process network control traffic
Dynamic link failover (host attach)
EPSRing (Ethernet Protection Switched Rings) with SuperLoop Protection (SLP)
EPSR enhanced recovery for extra resiliency
Long-Distance VCStack (LD-VCStack)
Loop protection: loop detection and thrash limiting
PVST+ compatibility mode
STP root guard
VCStack fast failover minimizes network disruption
Security Features
Access Control Lists (ACLs) based on layer 3 and 4 headers, per VLAN or port
Configurable ACLs for management traffic
Auth fail and guest VLANs
Authentication, Authorisation and Accounting (AAA)
Bootloader can be password protected for device security
BPDU protection
DHCP snooping, IP source guard and Dynamic ARP Inspection (DAI)
DoS attack blocking and virus throttling
Dynamic VLAN assignment
MAC address filtering and MAC address lock-down
Network Access and Control (NAC) features manage endpoint security
Port-based learn limits (intrusion detection)
Private VLANs provide security and port isolation for multiple customers using the same VLAN
Secure Copy (SCP)
Secure File Transfer Protocol (SFTP) client
Strong password security and encryption
Tri-authentication: MAC-based, web-based and IEEE 802.1x
RADIUS group selection per VLAN or port
RADIUS Proxy
PoE PoE+
Stackable Yes
SNMP Yes
QoS Yes
LACP Yes
Layer 3
Module Support Yes
LEDs Eco-friendly mode allows ports and LEDs to be disabled to save power
Features
Features Allied Telesis Autonomous Management Framework (AMF)
Virtual Chassis Stacking (VCStack)
Long-Distance Stacking
Ethernet Protection Switched Ring (EPSRing)
G.8032 Ethernet Ring Protection
Industry-leading Quality of Service (QoS)
Power over Ethernet Plus (PoE+)
High Reliability
Voice VLAN
Open Shortest Path First (OSPFv3)
sFlow
VLAN Mirroring (RSPAN)
Optical DDM
Active Fiber Monitoring
Tri-authentication
TACACS+ Command Authorization
Premium Software License
Software-Defined Networking (SDN)
VLAN ACLs
Upstream Forwarding Only (UFO)
VLAN Translation
Dimensions & Weight
Dimensions 17.32" x 12.80" x 1.73"
Weight 9.26 lbs.
