Antec TRUE CONTROL 550 550 W ATX Power Supply

(40) Write a Review
  • ATX
  • 115 / 230 V 50/60 Hz
  • +3.3V@32A; +5V@40A; -5V@0.5A; +12V@24A; -12V@1A; +5VSB@2A
Specs
Reviews (40)

Learn more about the Antec TRUE CONTROL 550

General
Brand Antec
Model TRUE CONTROL 550
Details
Type ATX
Maximum Power 550 W
Fans 2
PFC No

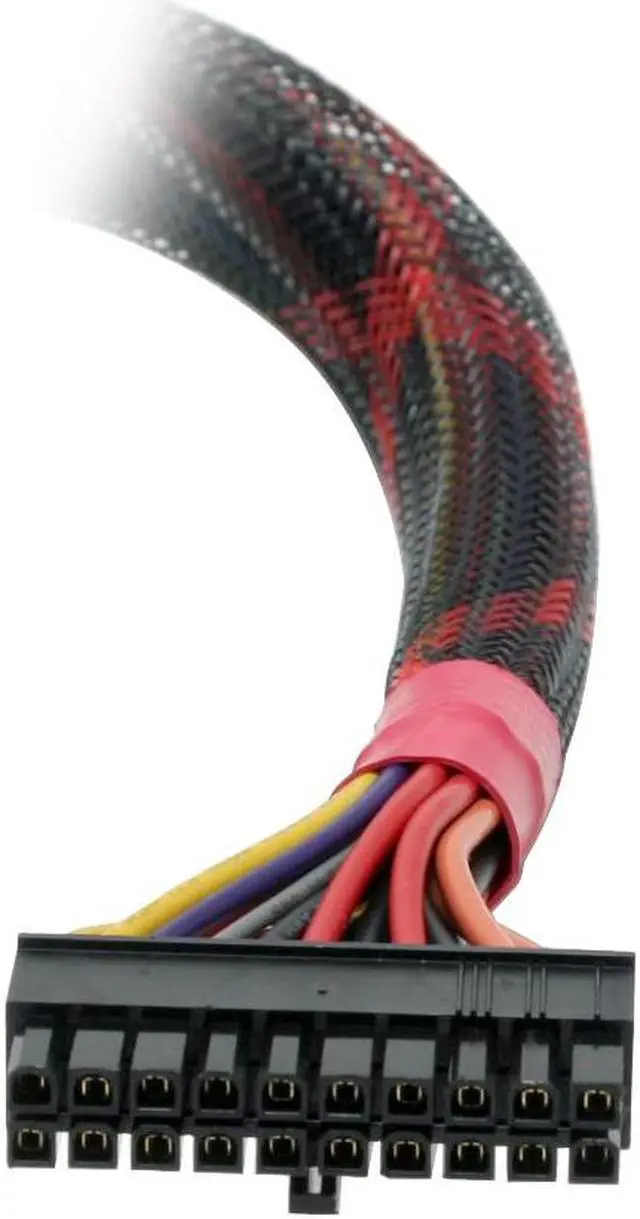

Main Connector 20Pin
+12V Rails Single
PCI-Express Connector No
SLI No
Modular No
Power Good Signal 100-500ms
Hold-up Time 17ms min.
Efficiency > 68%
Over Voltage Protection +5V trip point < +6.5V
+3.3V trip point < +4.1V
+12V trip point < +14.4V
Overload Protection Yes
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 12A @ 115V, 6A @ 230V
Output +3.3V@32A; +5V@40A; -5V@0.5A; +12V@24A; -12V@1A; +5VSB@2A
MTBF >80,000 Hours
Approvals UL, TUV, CB, VDE, FCC CLASS B, DEMKO, NEMKO, SEMKO, FIMKO
Additional Information
First Listed on Newegg March 13, 2003
