Antronix MRA1-15AC Amplifier, 1 Port,15dB Gain, Output 5-1002Mhz + Power Adapter
- The micro-housing allows all output ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces.
- Patented auto-seizing F-port features a Cam Activated Mechanism to provide full contact pressure (>2,000 grams) on the center conductor for maximum reliability.
- True 5-42 MHz return band and full 1 GHz downstream spectrum for more useable bandwidth.
- Unique surge protection on all ports without the use of arc gaps which may cause high impulse noise during discharge.
- Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.
+
+
Overview

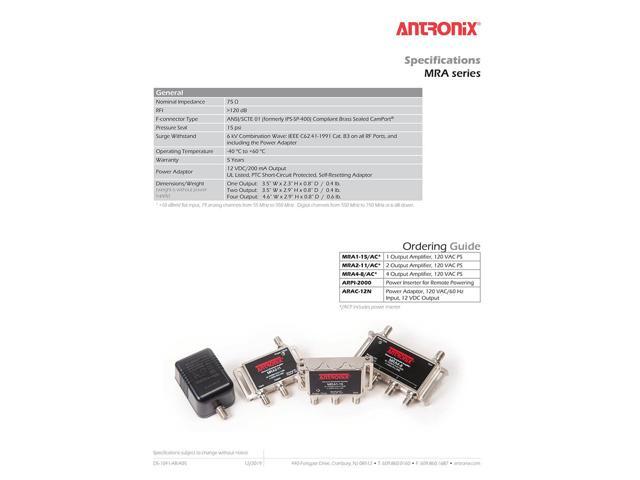

Specs
Reviews
The Antronix MicroAmp provides subscriber premise amplification in a small convenient package. The one output micro-housing allows all ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces.
Our patented CamPort® provides the only auto-seizing F-port for maximum contact area and reliability for multimedia applications. Ideal for both indoor and outdoor applications, the MRA was engineered to withstand the harshest environmental threats with the capability of enduring repeated high power surges.
• Micro-Housing
Our micro-housing offers the convenience of a small package without sacrificing
performance.
• Port Configuration Ideal for NID Enclosures
The micro-housing allows all output ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces.
• CamPort® Auto-Seizing F-port
Patented auto-seizing F-port features a “Cam Activated Mechanism” to provide full contact pressure (>2,000 grams) on the center conductor for maximum reliability.
• 3 dB Noise Figure
Provides clean amplification of weak signals to overcome the poor noise figure in TV tuners and converters.
• 6 kV Combination Wave Surge Protection
Unique surge protection on all ports without the use of arc gaps which may cause high impulse noise during discharge.
• 15 psi Sealed SCTE Compliant CamPort®
Sealed brass CamPort® prevents water migration.
