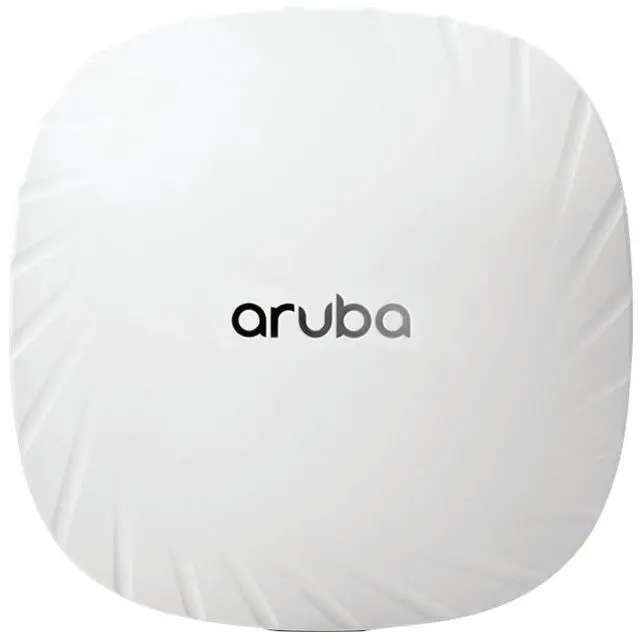

Internation Version HPE Aruba AP-505 (RW) - R2H28A Campus 1 x 1000Base-T - RJ-45 - wireless access point
- Networking: In-ceiling
- Antenna: Internal
- Internet of Things (IoT): Yes
- Expansion / Connectivity: 1 x 1000Base-T - RJ-45
- HPE Aruba AP-505 (RW) - Campus - wireless access point - Bluetooth 5.0 - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - in-ceiling
Overview
Specs
Reviews
Product
General
Device Type Wireless access point
Ruggedized Design Indoor
Networking
Form Factor In-ceiling
Connectivity Technology Wireless
Data Transfer Rate 1.2 Gbps
Line Coding Format CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Data Link Protocol IEEE 802.11 b, IEEE 802.11 a, IEEE 802.11 g, IEEE 802.11 n, IEEE 802.11 ac, Bluetooth 5.0, IEEE 802.11 ax (Wi-Fi 6)
Spread Spectrum Method OFDM, DSSS, OFDMA
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (
2.4 GHz): 574 Mbps | Maximum data rate (5
GHz): 1.2 Gbps | Aggregate throughput: 1.774 Gbps
Capacity Wireless clients per Wi-Fi radio: 256 | BSSI
Ds per radio: 16 | OFDMA units: 8
Status Indicators System, status
Features Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT)
Encryption Algorithm SSL, WPA, WPA2, WPA3
Compliant Standards IEEE 802.11 b, IEEE 802.11 a, IEEE 802.3 af, IEEE 802.11 g, IEEE 802.11 n, IEEE 802.3 at, IEEE 802.3 az, IEEE 802.11 ac, IEEE 802.11 ax, Wi-Fi CERTIFIED 6
Antenna
Antenna Internal
Antenna Qty 2
Directivity Omni-directional
Gain Level 5.7 dBi
Internet of Things (IoT)
Internet of Things (IoT) Compatible Yes
Communications Technology Bluetooth Low Energy (LE), Zigbee
Expansion / Connectivity
Interfaces 1 x 1000Base-T - RJ-45 | 1 x USB 2.0 - Type A | 1 x console - micro-USB
Specifications
General
Device Type Wireless access point
Ruggedized Design Indoor
Networking
Form Factor In-ceiling
Connectivity Technology Wireless
Data Transfer Rate 1.2 Gbps
Line Coding Format CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Data Link Protocol IEEE 802.11 b, IEEE 802.11 a, IEEE 802.11 g, IEEE 802.11 n, IEEE 802.11 ac, Bluetooth 5.0, IEEE 802.11 ax (Wi-Fi 6)
Spread Spectrum Method OFDM, DSSS, OFDMA
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (
2.4 GHz): 574 Mbps | Maximum data rate (5
GHz): 1.2 Gbps | Aggregate throughput: 1.774 Gbps
Capacity Wireless clients per Wi-Fi radio: 256 | BSSI
Ds per radio: 16 | OFDMA units: 8
Status Indicators System, status
Features Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT)
Encryption Algorithm SSL, WPA, WPA2, WPA3
Compliant Standards IEEE 802.11 b, IEEE 802.11 a, IEEE 802.3 af, IEEE 802.11 g, IEEE 802.11 n, IEEE 802.3 at, IEEE 802.3 az, IEEE 802.11 ac, IEEE 802.11 ax, Wi-Fi CERTIFIED 6
Antenna
Antenna Internal
Antenna Qty 2
Directivity Omni-directional
Gain Level 5.7 dBi
Internet of Things (IoT)
Internet of Things (IoT) Compatible Yes
Communications Technology Bluetooth Low Energy (LE), Zigbee
Expansion / Connectivity
Interfaces 1 x 1000Base-T - RJ-45 | 1 x USB 2.0 - Type A | 1 x console - micro-USB
