    $299.99
  • Limit 5 per customer.
    Add to PC build list
    NEW
    Price alert
    Add to wish list(Found on 16 wish lists)
    Sold by Newegg

    Shipped by Newegg

    Newegg PC Builder
    Shop it at NeweggBusiness.
    Shop All ASRock Products

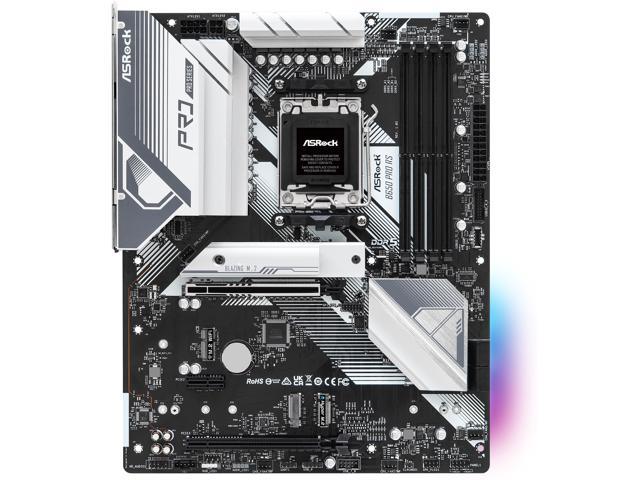

    ASRock PRO B650 PRO RS AM5 ATX Mainboard , 4 slots DDR5, PCIE 4.0 x16, 3 M.2 slots, 2.5Gb Lan, 7.1 Nahimic Audio , Rear USB3.2 Gen2X2 Type_C , 14+2+1 Power Phase, bios flash back.

    (659)(73) Write a Review
    • B650 PG LIGHTNING
    • B650M PG RIPTIDE WIFI
    • B650E STEEL LEGEND WIFI
    • B650E TAICHI
    • B650E PG RIPTIDE WIFI
    • B650 PRO RS
    • B650M-HDV/M.2
    • B650M Pro RS WiFi
    • B650M Pro RS
    • AMD B650
    • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors.
    • 14+2+1 Power Phase, SPS with Enlarged Heatsink Armor.
    • Supports DDR5 6200MHz (OC).
    • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E.
    • Graphics Output Options: HDMI, DisplayPort.
    • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
    • 4 SATA, 1 Blazing M.2 (PCIe Gen5x4): 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (SATA & PCIe Gen3x2).
    • 1 USB 3.2 Gen2x2 Front Type-C: 2 Rear USB 3.2 Gen2 (Type A + Type-C).
    • 4 USB 3.2 Gen1 (2 Rear, 2 Front): 9 USB 2.0 (6 Rear, 3 Front).
    • Dragon 2.5G LAN.
    • Supports ASRock Auto Driver Installer, BIOS Flashback.
    +
    +
    Specs
    Reviews (659)

    Learn more about the ASRock B650 PRO RS

    Model
    Brand ASRock
    Series PRO
    Model B650 PRO RS
    Supported CPU
    CPU Socket Type AM5
    CPU Type Supports AMD Ryzen 7000 Series Processors
    Chipsets
    Chipset AMD B650
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    ECC Supported Yes
    Buffer Supported Un-buffered
    Memory Feature Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
    Expansion Slots
    PCI Express 4.0 x16 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    PCI Express 3.0 x16 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*

    * Supports NVMe SSD as boot disks
    Storage Devices
    SATA 6Gb/s 2 x SATA 6Gb/s
    M.2 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
    1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    SATA RAID Supports RAID 0 and RAID 1 for SATA storage devices
    Additional RAID Controller Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
    * Requires additional M.2 NVMe expansion cards to support RAID 10
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Dragon RTL8125BG
    Max LAN Speed 2.5Gbps
    Rear Panel Ports
    Back I/O Ports 2 x Antenna Mounting Points
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
    1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
    2 x USB 3.2 Gen1 Ports
    6 x USB 2.0 Ports
    1 x RJ-45 LAN Port
    1 x BIOS Flashback Button
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
    Other Connectors 1 x SPI TPM Header
    1 x Power LED and Speaker Header
    1 x RGB LED Header*
    3 x Addressable LED Headers**
    1 x CPU Fan Connector (4-pin)***
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    1 x Front Panel Audio Connector
    1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    **** CPU_FAN2/WP supports the fan power up to 2A (24W).
    ***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
    ***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use
    Physical Spec
    Form Factor ATX
    Power Pin 1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector
    1 x 4 pin 12V Power Connector
    Software Feature
    Windows 11 Supported
    Packaging
    Package Contents 1 x User Manual
    2 x SATA Data Cables
    3 x Screws for M.2 Sockets
    Additional Information
    Date First Available October 10, 2022

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 3 years
    • Limited Warranty period (labor): 3 years
