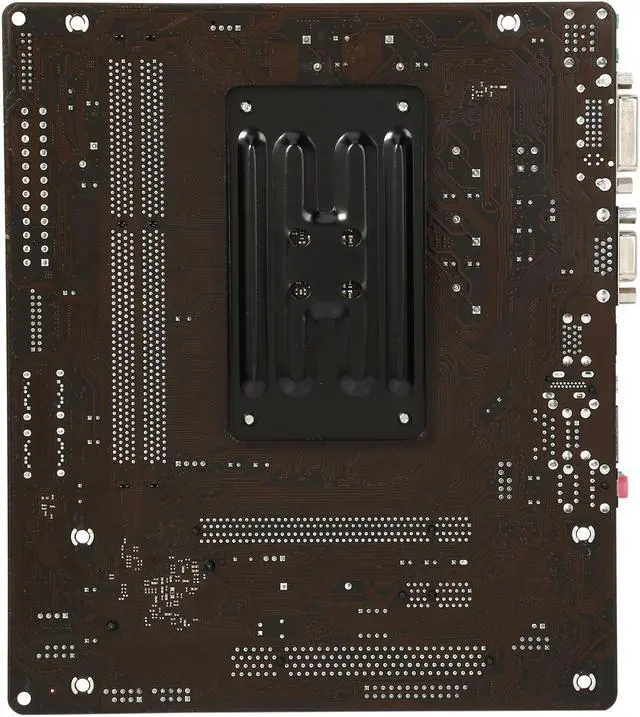

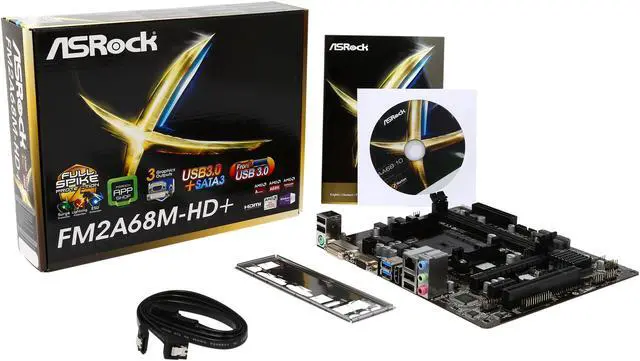

ASRock FM2A68M-HD+ FM2+ / FM2 AMD A68H (Bolton-D2H) USB 3.0 HDMI Micro ATX AMD Motherboard
- AMD A68H (Bolton-D2H)
- Socket FM2+ 95W / FM2 100W processors
- DDR3 2400+(OC)/ 2133(OC)/ 1866(OC)/ 1600/ 1333/ 1066 non-ECC, un-buffered
Specs
Reviews (11)
Learn more about the ASRock FM2A68M-HD+
| Brand | ASRock |
|---|---|
| Model | FM2A68M-HD+ |
| CPU Socket Type | FM2+ / FM2 |
|---|---|
| CPU Type | Socket FM2+ 95W / FM2 100W processors |
| Chipset | AMD A68H (Bolton-D2H) |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 2400+(OC)/ 2133(OC)/ 1866(OC)/ 1600/ 1333/ 1066 non-ECC, un-buffered |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE1@ x16 mode) *PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0. |
|---|---|
| PCI Express x1 | 1 x PCI Express 2.0 x1 Slot |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| SATA RAID | RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| Onboard Video Chipset | Integrated AMD Radeon R7/R5 Series Graphics in A-series APU DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU. Max. shared memory 2GB Three graphics output options: D-Sub, DVI-D and HDMI Ports Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports Blu-ray Stereoscopic 3D with HDMI Port Supports AMD Steady Video 2.0: New video post processing capability for automatic jitter reduction on home/online video Supports HDCP with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *Only FM2+ APU can support up to 4096x2160 resolution display via HDMI port. |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 5.1 Channels |
| LAN Chipset | Realtek RTL8111GR |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.0 | 2 x USB 3.0 Ports (AMD A68H (Bolton-D2H)) (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 1.1/2.0 | 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header by ASMedia ASM1042A (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
|---|---|
| Other Connectors | 1 x Print Port Header 1 x COM Port Header 1 x Chassis Intrusion Header 1 x TPM Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin) 1 x Power Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector |
| Form Factor | Micro ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | Support for Socket FM2+ 95W / FM2 100W processors All Solid Capacitor Design Supports Dual Channel DDR3 2400+(OC) 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1, 1 x PCI, Supports AMD Dual Graphics Integrated AMD Radeon R7/R5 Series Graphics in A-series APU Graphics Output Options: D-Sub, DVI-D, HDMI 5.1 CH HD Audio (Realtek ALC662 Audio Codec) 1 x Print Port Header, 1 x COM Port Header 4 x SATA3, 4 x USB 3.0 (2 Front, 2 Rear), 8 x USB 2.0 (4 Front, 4 Rear) Supports ASRock APP Shop, Full Spike Protection, X-Boost Unique Feature: ASRock Full Spike Protection ASRock APP Shop BIOS: - 64Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliant wake up events - Supports jumperfree - SMBIOS 2.3.1 support - DRAM, CPU Voltage multi-adjustment Software - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI - ASRock X-Boost UEFI - ASRock Interactive UEFI - ASRock Instant Boot - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Dehumidifier Function - ASRock Easy RAID Installer - ASRock Easy Driver Installer Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial) Hardware Monitor: - CPU temperature sensing - Chassis temperature sensing - CPU Fan Tachometer - Chassis Fan Tachometer - CPU/Chassis Quiet Fan - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, Vcore OS: Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certifications: - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| First Listed on Newegg | March 16, 2015 |
|---|
