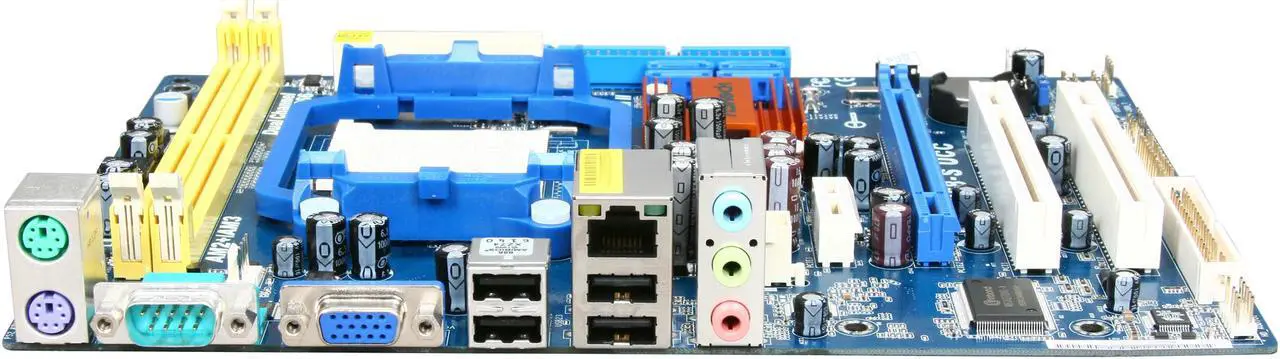

ASRock N68-S UCC AM3/AM2+/AM2 NVIDIA GeForce 7025 / nForce 630a Micro ATX AMD Motherboard

(76) Write a Review
  • NVIDIA GeForce 7025 / nForce 630a
  • Phenom II / Phenom / Athlon II / Athlon64 /Sempron
  • DDR2 1066(OC)/800/667/533
Specs
Reviews (76)

Learn more about the ASRock N68-S UCC

Model
Brand ASRock
Model N68-S UCC
Supported CPU
CPU Socket Type CPU Socket TypeAM3/AM2+/AM2
CPU Type Phenom II / Phenom / Athlon II / Athlon64 /Sempron
FSB 1000 MHz
Chipsets
Chipset ChipsetNVIDIA GeForce 7025 / nForce 630a
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 1066(OC)/800/667/533
Maximum Memory Supported 8GB
Channel Supported Channel SupportedDual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s SATA 3Gb/s4 x SATA 3Gb/s
SATA RAID 0/1/0+1/5/JBOD
Onboard Video
Onboard Video Chipset Onboard Video ChipsetNVIDIA GeForce 7025
Onboard Audio
Audio Chipset Audio ChipsetVIA VT1708S / VT1705
Audio Channels Audio Channels6 Channels
Onboard LAN
LAN Chipset Realtek PHY RTL8201EL / 8201CL
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 PS/22
COM 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.0"
Power Pin 24 Pin
Features
Features Phenom II X6 6-Core CPU Ready

Maximum CPU TDP (Thermal Design Power) : 95Watt

Supports UCC feature (Unlock CPU Core)

Hyper Transport 2000 MT/s

Supports Dual Channel DDR2 1066

Integrated NVIDIA GeForce 7025 graphics, DX9.0 VGA, Pixel Shader 3.0, Max. shared memory 256MB

Supports ASRock Instant Boot, Instant Flash, OC DNA, ASRock OC Tuner (Up to 132% CPU frequency increase)

Supports Intelligent Energy Saver (Up to 20% CPU Power Saving)
Additional Information
Date First Available May 25, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
