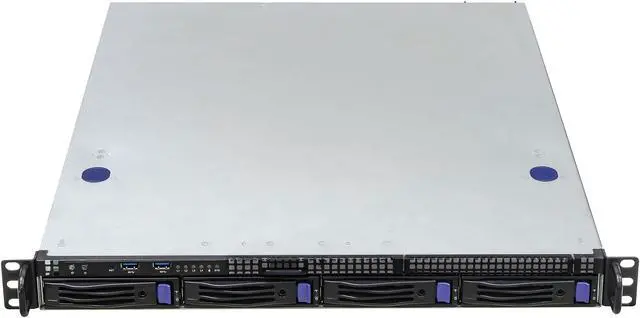

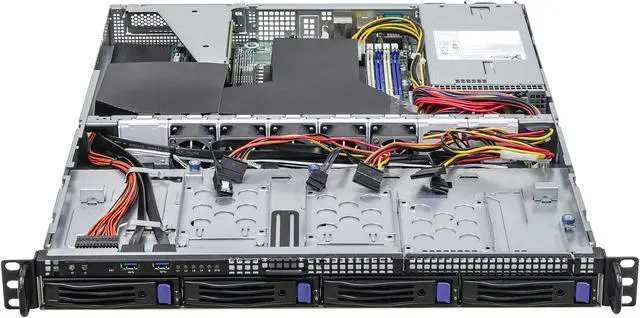

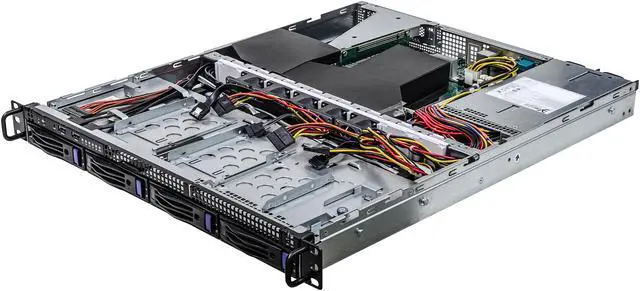

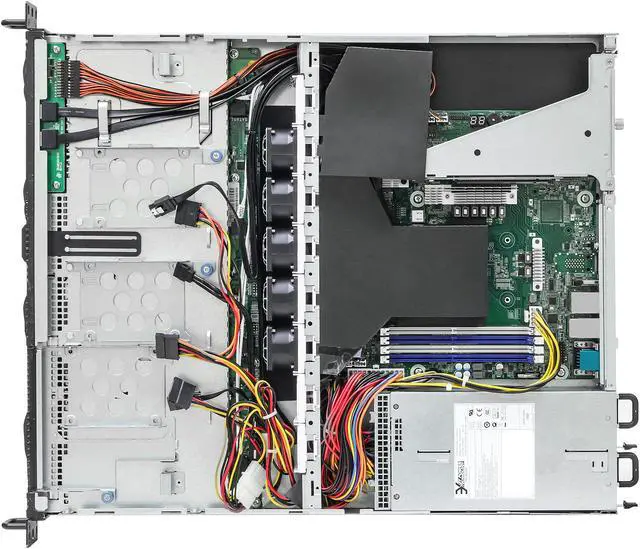

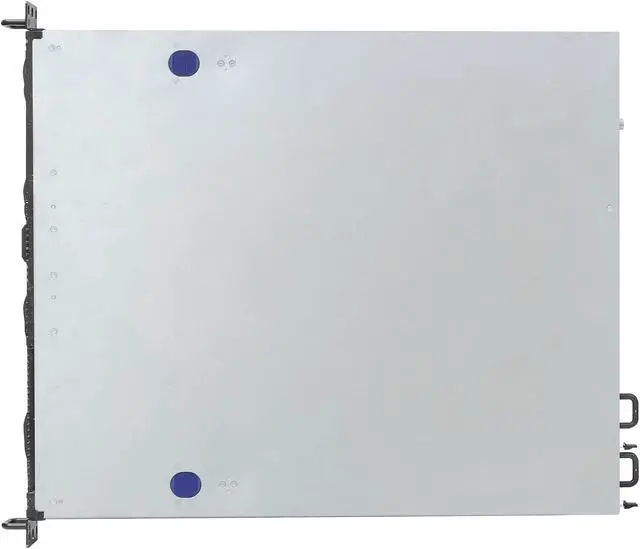

Asrock Rack 1U4LW-X570 RPSU 1U Rackmount Server Barebone 4 Bays Single Socket AM4 PGA 1331 AMD Ryzen 5000 Series
- 1U Rackmount with 450W Redundant PSU (1+1), 100-240V, 50-60Hz
- Support AMD Ryzen 5000 Series Desktop Processors
- Support 4 x DDR4 ECC/ non-ECC UDIMM, up to 32GB each
- Support 4 x Hot-swap 3.5" HDD/SSD bays, 3 fixed 2.5" HDD/SSD bays
- Support 1 x FHHL PCIe4.0 x16
- Support 2 x RJ45 (1GbE) by Intel i210 + 1 x dedicated IPMI
- SMB and Web Hosting
Specs
Reviews
Learn more about the ASRock Rack 1U4LW-X570 RPSU
| Brand | ASRock Rack |
|---|---|
| Model | 1U4LW-X570 RPSU |
| Form Factor | 1U Rackmount |
| CPU Type | Supports: AMD Ryzen 5000 and 3000 Series Desktop Processors AMD Ryzen 4000 and 3000 G-Series Desktop Processors with Radeon Graphics AMD Ryzen PRO 5000, 4000 and 3000 Series Desktop Processors |
|---|---|
| CPU Socket | AM4 |
| Installed CPU | No CPU Installed |
| North Bridge | AMD X570 |
|---|
| Memory Slots | 4 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | Up to 3200 MHz* * AMD Ryzen 3000 G-Series Desktop Processors with Radeon Graphics support up to 2666 MHz |
| Installed HDD | No Storage Installed |
|---|---|
| M.2 | 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH] *Supports PCIe3.0 when using AMD Ryzen 4000 and 3000 G-Series Desktop Processors with Radeon Graphics |
| GPU/VPU | Aspeed AST2500 |
|---|
| PCI Express | Supports 1 FHHL PCIe4.0 x16* via RB1UX16_G4 *Supports PCIe3.0 x8 when using AMD Ryzen 3000 G-Series Desktop Processors with Radeon Graphics *Supports PCIe3.0 x16 when using AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics |
|---|
| First LAN | Intel I210 |
|---|---|
| Max. LAN Speed | 1 Gigabit |
| 2.5" Bays | 3 fixed 2.5" HDD/SSD (SATA 6Gb/s) bays |
|---|---|
| 5.25" Bays | 1 Slim ODD (BTO) |
| Hot-Swap Bays | 4 Hot-swap 3.5" HDD/SSD (SATA 6Gb/s) bays |
| Front USB | 2 x USB 3.2 Gen1 Type-A |
|---|---|
| COM | 1 |
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen2 |
| RJ45 | 2 RJ45(1GbE) by Intel i210 1 dedicated IPMI |
| Max. Power | 450W 1+1 Redundant PSU, 100-240V, 50-60Hz |
|---|
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
|---|---|
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |

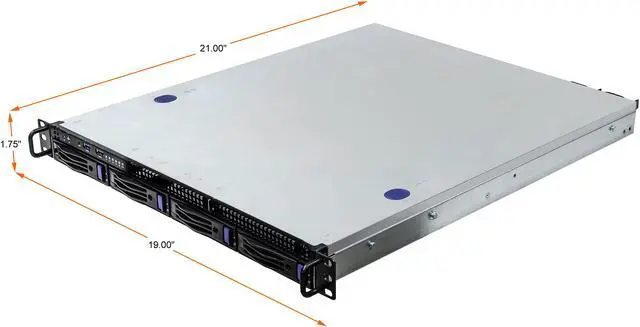

| Dimensions | 1.75" x 21.00" x 19.00" |
|---|
| First Listed on Newegg | March 17, 2022 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.ca's Standard Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 909-590-8308
- Support Website
- View other products from ASRock Rack
