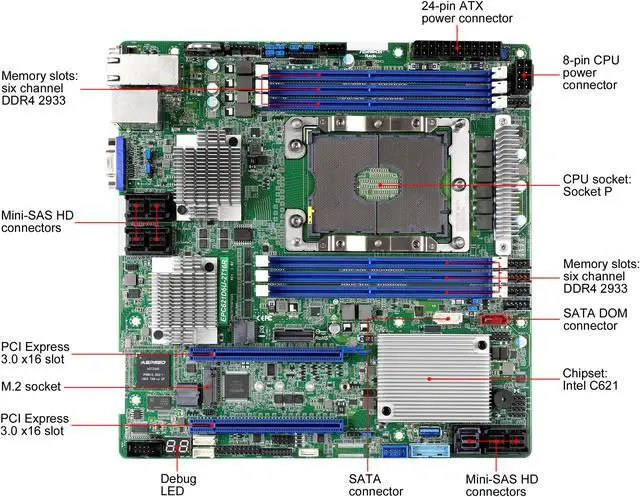

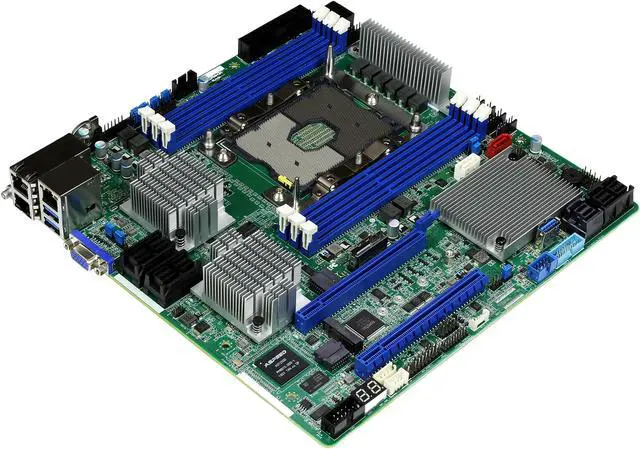

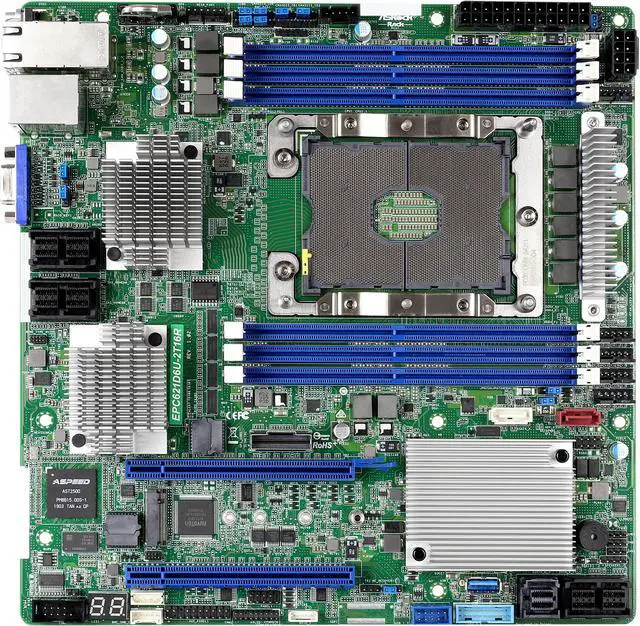

AsRock Rack EPC621D6U-2T16R Micro ATX Server Motherboard LGA3647 Intel C621 Dual 10 GLAN LSI3616

Be the first to review this product...
  • mATX 9.6'' x 9.6''
  • Support Intel Xeon Scalable Processors / 2nd Gen. Intel Xeon Scalable Processors
  • Support 6 x DDR4 DIMM slots, Six Channel, DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Support 30 x SATA3 6Gb/s (including 1 x SATA DOM port (SSATA_5),shared with M.2 (PCIE3.0(x4))/ SATA3)), 7 x MiniSAS HDconnectors (SATA_0_3 / SATA_0_7 / SAS_NVMEA0_7 /SAS_NVMEB0_7), and 1 x SATA port (SSATA_4)), support RAID 0, 1, 5, 10
  • Support 2 x PCIe 3.0 x16 (The SAS_NVMEA0_7 and SAS_NVMEB0_7 are shared with the PCIE4 slot. When PCIE4 is populated with a PCIE card, SAS_NVMEA0_7 and SAS_ NVMEB0_7 are disabled.)
  • Support 1 x Slimline x8 from CPU1
  • Support 2 x 10GBase-T + 1 x IPMI Dedicated LAN
  • Compact networking appliance/Web hoting/storage
Specs
Reviews

Learn more about the ASRock Rack EPC621D6U-2T16R

Model
Brand AsRock Rack
Model EPC621D6U-2T16R
Supported CPU
CPU Socket Type Socket P
CPU Type Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
Chipsets
North Bridge Intel C621
Memory
Number of DDR4 Slots 6 x 288-pin
DDR4 Standard DDR4 2933
Maximum Memory Supported 64GB
Channel Supported Six Channel
Expansion Slots
PCI Express 3.0 x16 PCIE6: Gen3 x16 link
PCIE4: Gen3 x16 link*

*EPC621D6U-16R / EPC621D6U-2T16R only:
The SAS_NVMEA0_7 and SAS_NVMEB0_7 are shared with the PCIE4 slot. When PCIE4 is populated with a PCIE card, SAS_NVMEA0_7 and SAS_ NVMEB0_7 are disabled.
Storage Devices
SATA 30 x SATA3 6Gb/s (including 1 x SATA DOM port (SSATA_5), shared with M.2 (PCIE3.0(x4))/ SATA3)), 7 x MiniSAS HD connectors (SATA_0_3 / SATA_0_7 / SAS_NVMEA0_7 / SAS_NVMEB0_7), and 1 x SATA port (SSATA_4)), support RAID 0, 1, 5, 10
SATA RAID 0/1/10/5
Onboard Video
Onboard Video Chipset Aspeed AST2500
Onboard LAN
LAN Chipset Intel X550
LAN Speed 10Gbps
Second LAN Chipset RTL8211E
Max LAN Speed 10Gbps

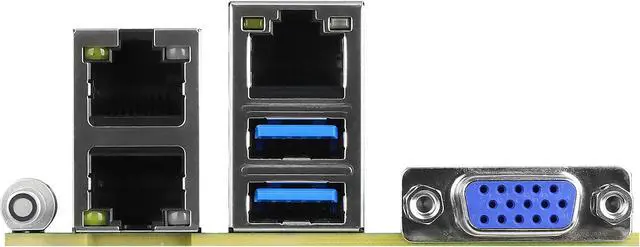

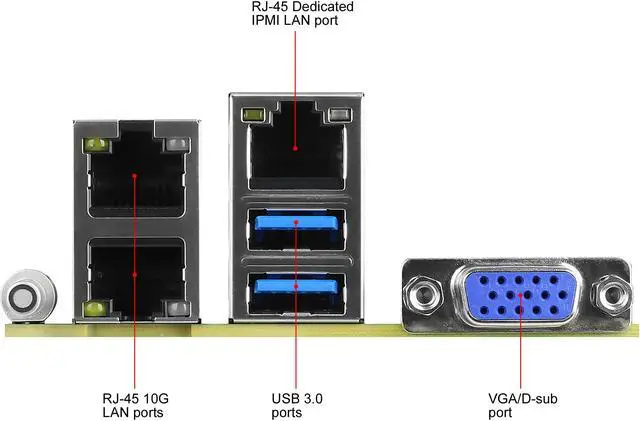

Rear Panel Ports
Video Ports 1 x D-Sub
USB 3.0 2 x USB 3.0
Onboard Ports
Other Connectors COM Header: 1
SATA DOM: 1 (SSATA_5, shared with M.2)
M.2: 1 (2230/2242/2260/2280), supports PCIE3.0(X4)/SATA3 (SATA type is shared with SSATA_5)
Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front LAN LED)
TR1 Header: 1
TPM Header: 1
IPMB Header: 1
Buzzer: 1
Fan Header: 6 Fans x (6-pin) (CPU/4Front/Rear)
ATX Power: 1 (24-pin) + 1 (8-pin)
USB 3.1 (Gen1) Header: 1 (supports 2 USB 3.0 ports)
USB 2.0 Header: 1 (supports 2 USB 2.0 ports)
Type A USB 3.1 (Gen1) Port: 1
PWR SMB Header: 1
NMI Button: 1 (Header)
Front Panel: 1 (RST, PWRBTN, HDDLED, PWRLED)
Speaker Header: 1 (4pin)
BMC_SMB Header: 1
SGPIO Header: 1
ME/SPS Recovery: 1
Clear CMOS: 1 (short pin)
Features
Features Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
Supports 6 Channel, DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane DC Persistent Memory in memory mode (Cascade Lake only), 8 dimm slots
IntelC621: 12 x SATA3 ( 12 port from 3 mini SAS HD, 1x SATA DOM, 1 SATA 7pin, 1 x M.2 ; Broadcom SAS 3616: 16 x SAS/SATA3 (from 4 mini SAS HD) or 4 x NVME ( by jumper setting)
Supports dual 10GBase-T by Intel X550-BT2
Supports 2 x PCIe 3.0 x16
4 x USB 3.0 ports (2 ports in Rear side, 2 ports internal header) +1 Type A USB 3.0

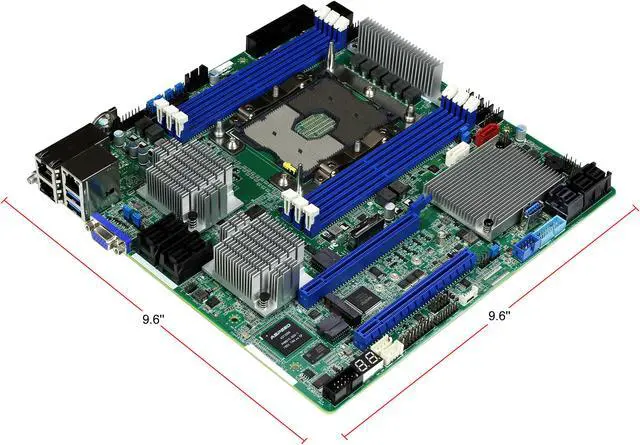

Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
Date First Available August 26, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
