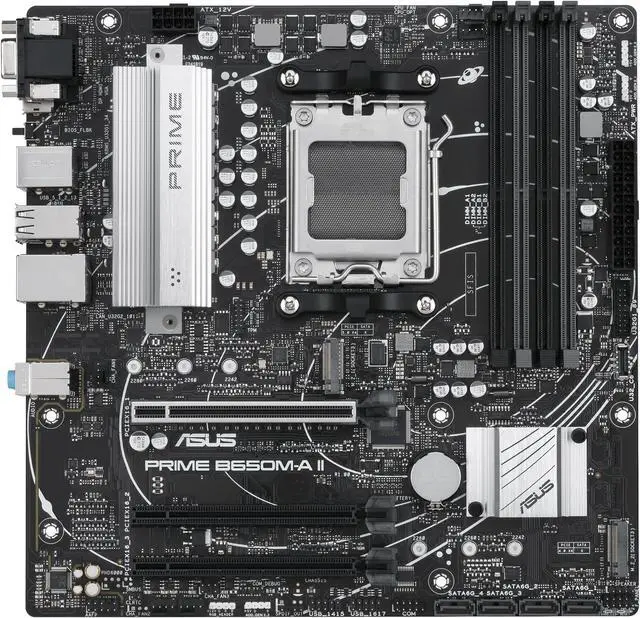

Alt view image 2 of 6 - ASUS PRIME B650M-A II-CSM Micro-ATX commercial motherboard, DDR5 6400+(OC), PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, Arua Sync

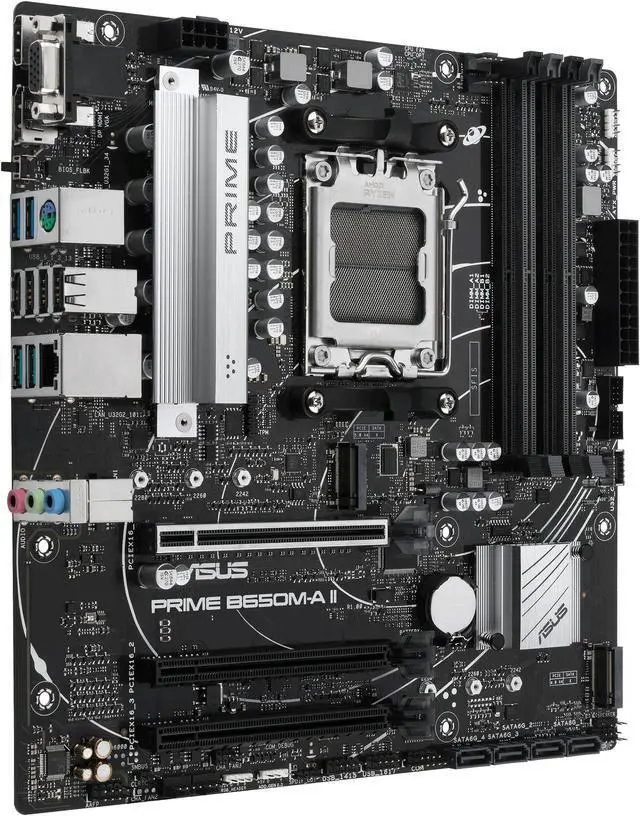

Alt view image 3 of 6 - ASUS PRIME B650M-A II-CSM Micro-ATX commercial motherboard, DDR5 6400+(OC), PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, Arua Sync

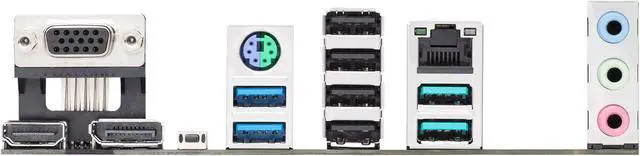

Alt view image 4 of 6 - ASUS PRIME B650M-A II-CSM Micro-ATX commercial motherboard, DDR5 6400+(OC), PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, Arua Sync

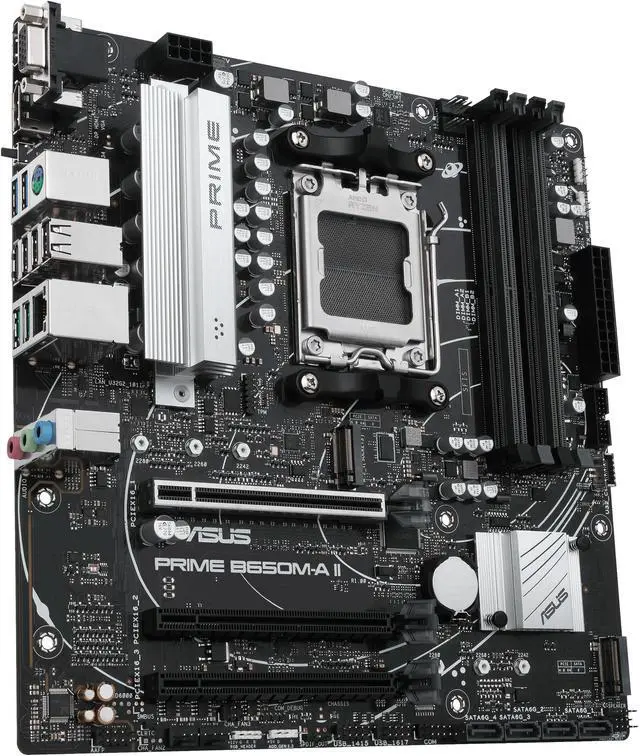

Alt view image 5 of 6 - ASUS PRIME B650M-A II-CSM Micro-ATX commercial motherboard, DDR5 6400+(OC), PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, Arua Sync

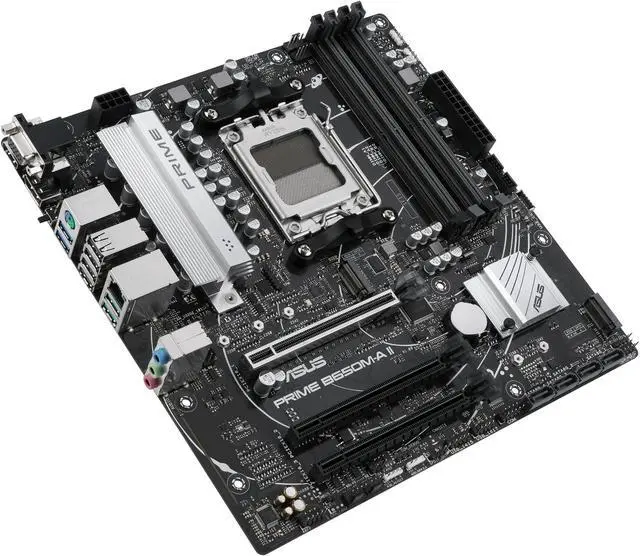

Alt view image 6 of 6 - ASUS PRIME B650M-A II-CSM Micro-ATX commercial motherboard, DDR5 6400+(OC), PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, Arua Sync

Shop All ASUS Products

ASUS PRIME B650M-A II-CSM Micro-ATX commercial motherboard, DDR5 6400+(OC), PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, Arua Sync

Name: PRIME B650M-A II-CSM Micro-ATX commercial motherboard, DDR5 6400+OC, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6
Brand: ASUS
SKU: N82E16813119632
Rating: 5 (1 reviews)

(1) Write a Review

AMD AM5 Socket: Ready for AMD Ryzen 7000 Series Desktop Processors.
Ultrafast Connectivity: DDR5 6400+(OC) 600M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C.
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
Comprehensive Cooling: 6-layer 2Oz PCB design, VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
Memory:DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/
5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/

Overview

Specs

Reviews (1)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2025 and December 31, 2025 you will have until January 31, 2026 to return your product.

Return for refund until: January 31, 2026

Return for replacement until: January 31, 2026

This item is covered by Newegg.ca's Extended Holiday Return Policy.
Read full return policy for details.

CPU Socket Type	AM5
CPU Type	Supports AMD Ryzen 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered
Memory Feature	Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
Audio Channels	7.1 Channels

Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

ASUS PRIME B650M-A II-CSM Micro-ATX commercial motherboard, DDR5 6400+(OC), PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, Arua Sync

Learn more about the ASUS PRIME B650M-A II-CSM

Customer Reviews of the ASUS PRIME B650M-A II-CSM

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Brand	ASUS
Model	PRIME B650M-A II-CSM
Part Number	90MB1EH0-M0AAYC

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
