"PCIe 4.0"

"WIFI 6"

"Dual, addressable and non-addressable RGB headers"

"Digital readout module for troubleshooting"

"Supports two m.2 drives"

"Flash bios button on the rear panel"

"I/O shield is built onto the rear panel"

"Ability to work with multiple versions of RAM"

"Great overclocking headroom"

Review Bytes

See more

Shop All ASUS Products | Visit Volcanic electron Store

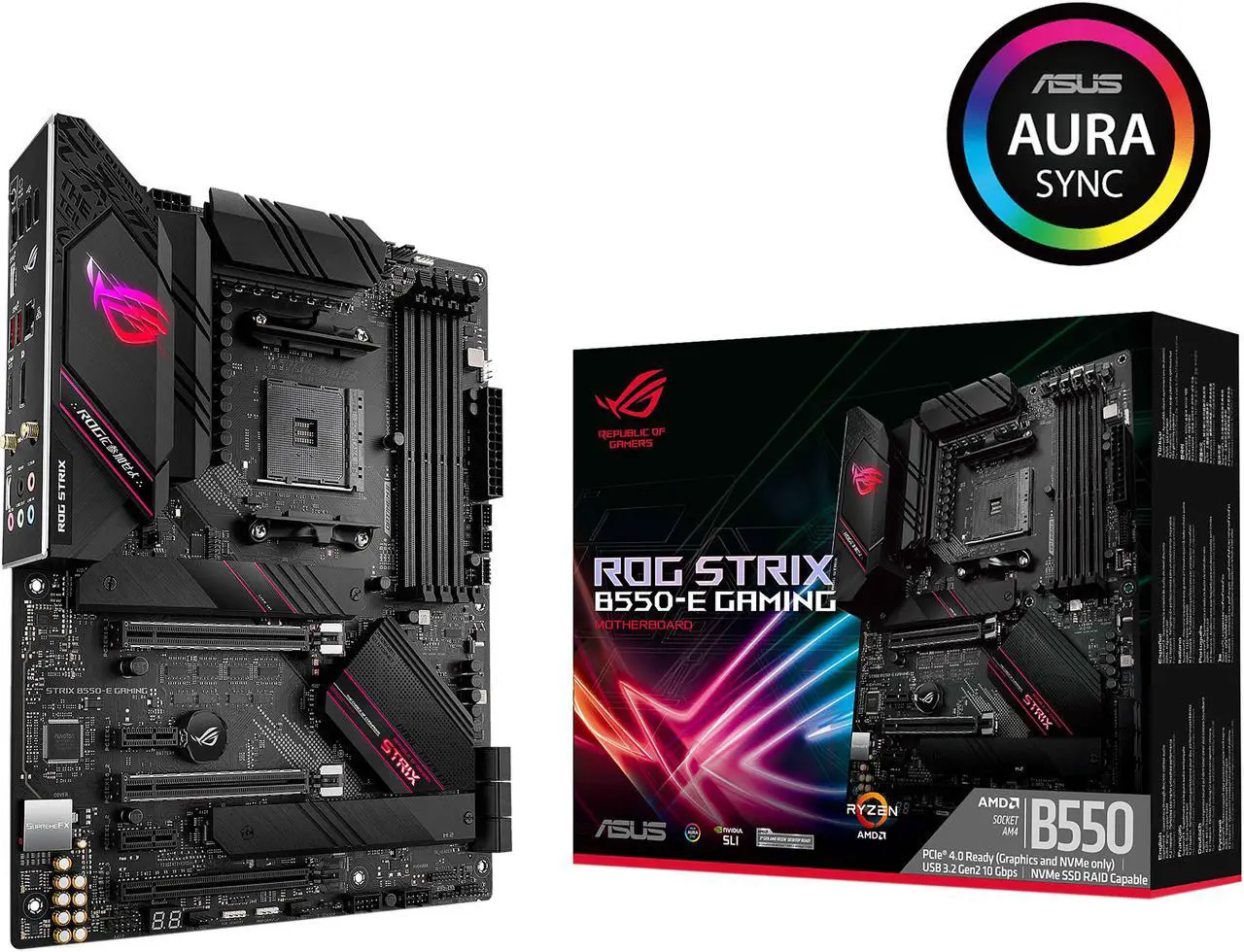

ASUS ROG Strix B550-E Gaming AMD AM4 (3rd Gen Ryzen) ATX Gaming Motherboard (PCIe 4.0, NVIDIA SLI, WiFi 6, 2.5Gb LAN, 14+2 Power Stages, Front USB 3.2 Type-C, Addressable Gen 2 RGB and AURA Sync)

Name: ASUS ROG STRIX B550-E GAMING AM4 ATX AMD Motherboard
Brand: ASUS
SKU: N82E16813119310
Price: 519.99 CAD
Availability: InStock
Rating: 4 (1790 reviews)

(1,790)(108) Write a Review

Option: ROG STRIX B550-E GAMING

PRIME B550-PLUS
PRIME B550M-K
ROG STRIX B550-E GAMING
ROG STRIX B550-F GAMING
ROG STRIX B550-F GAMING (WI-FI)
ROG STRIX B550-F GAMING WIFI II
ROG STRIX B550-I GAMING
TUF GAMING B550-PLUS
TUF GAMING B550M-PLUS
TUF GAMING B550M-PLUS (WI-FI)
TUF GAMING B550-PLUS WIFI II
PRIME B550-PLUS AC-HES

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU

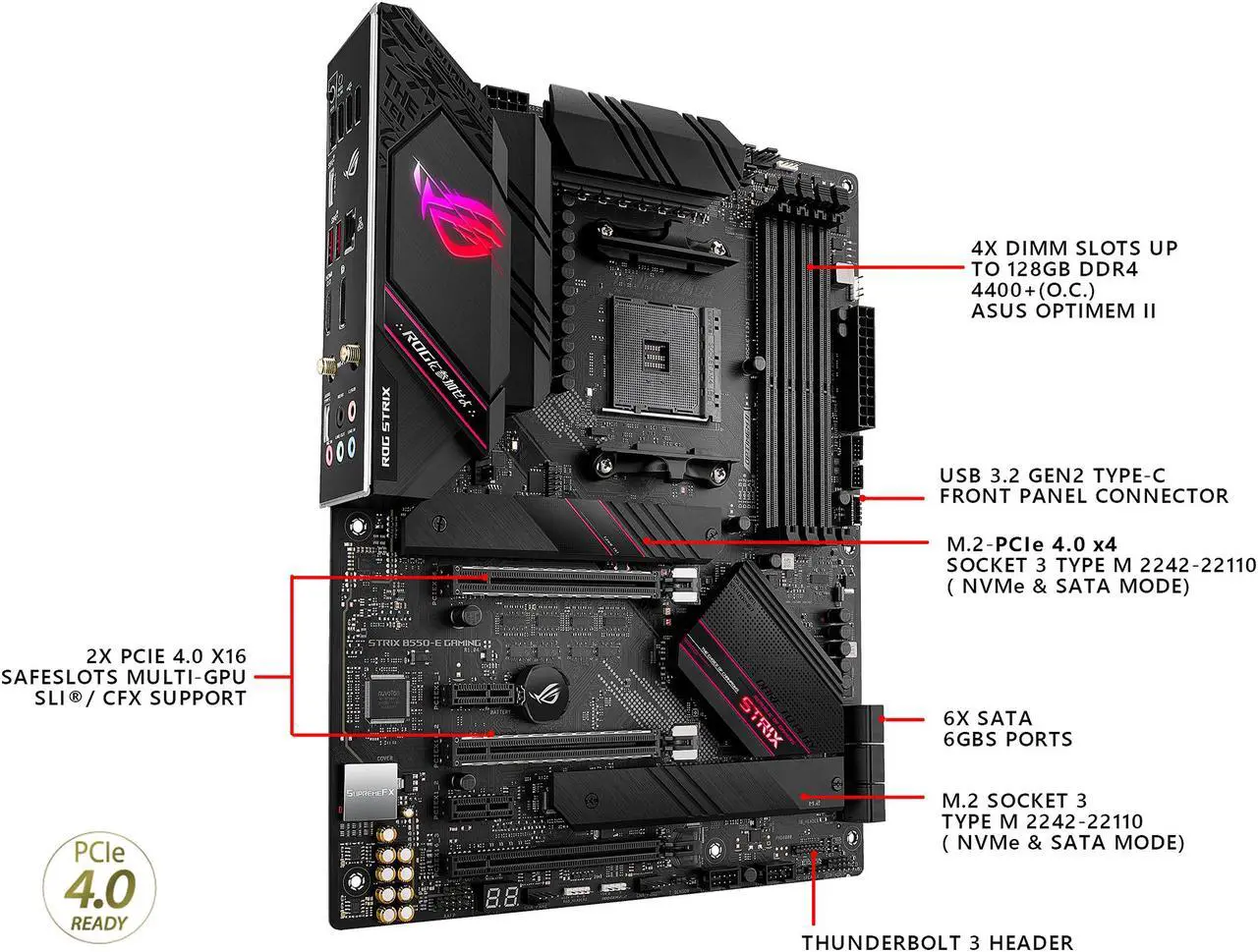

AMD AM4 Socket and PCIe 4.0: The perfect pairing for 3rd Gen AMD Ryzen CPUs

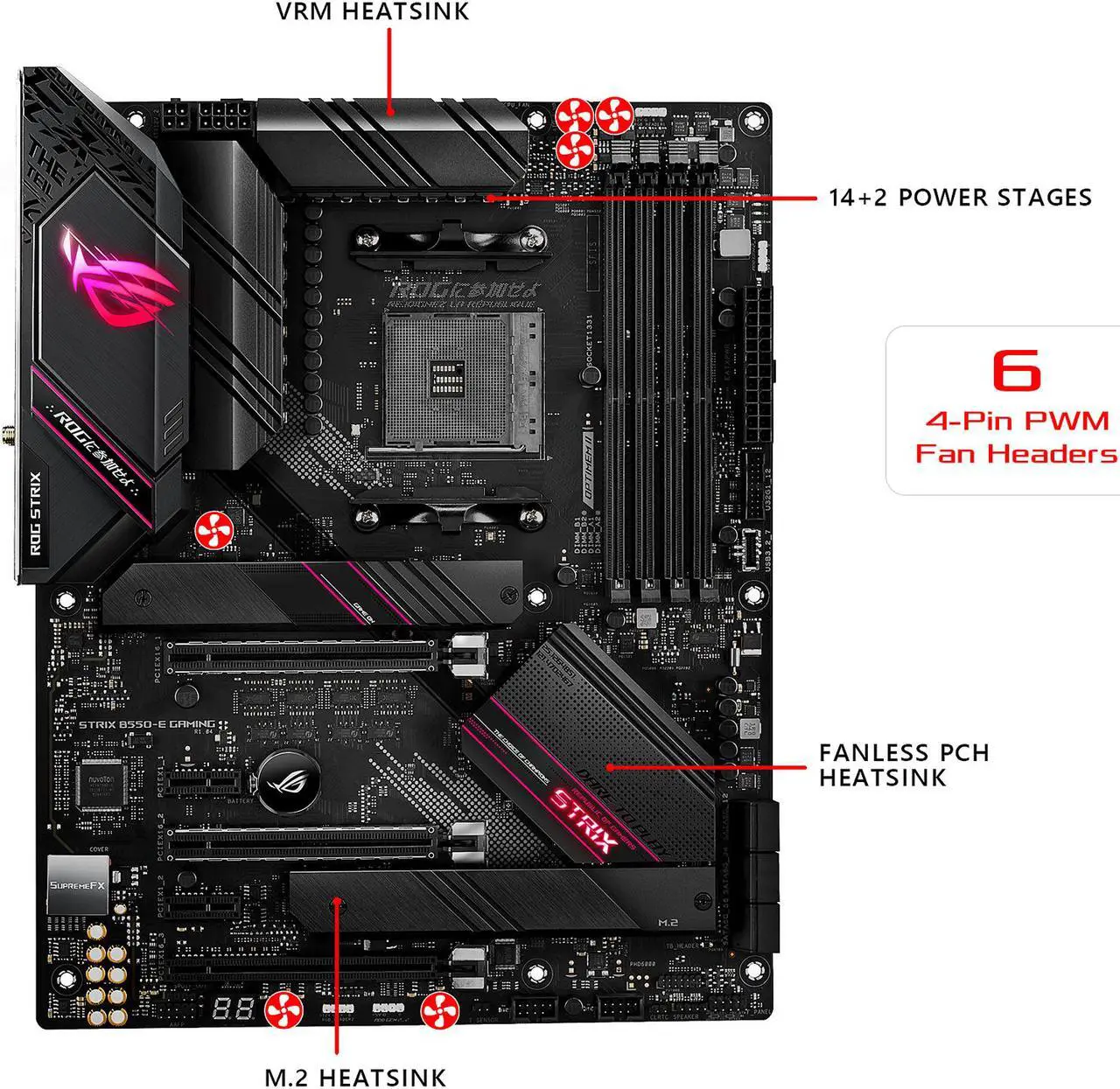

Robust Power Design: 14+2 DrMOS power stages with high-quality alloy chokes and durable capacitors provide reliable power for the latest high-core-count AMD CPUs
Optimized Thermal Solution: Fanless VRM and chipset heatsinks with ASUS Stack Cool 3+ design keep your system running reliably under heavy load by enhancing passive cooling capacity for critical onboard components.
High-performance Gaming Networking: On-board WiFi 6 (802.11ax), Bluetooth V5.1 and 2.5 Gb LAN with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI 2.1 (4K@60HZ) and DisplayPort 1.2 output, featuring dual M.2 slots (NVMe SSD) - one with PCIe 4.0 x4 connectivity, USB 3.2 Gen 2 front panel Type-C connector, USB 3.2 Gen 2 Type-C port, USB Audio Type-C bundled with 3.5mm adapter cable and Thunderbolt 3 header

Overview

Specs

Reviews (1,790)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Volcanic electron Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type CPU Socket Type	AM4
CPU Type	BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Gen AMD Ryzen Processors DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory Next Generation AMD Ryzen PRO Processors DDR4 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported Channel Supported	Dual Channel

PCI Express 4.0 x16	3rd Gen AMD Ryzen Processors 2 x PCIe 4.0 x16 (x16 or dual x8)
PCI Express 3.0 x16 PCI Express 3.0 x16	AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2
PCI Express x1	2 x PCIe 3.0 x1

SATA 6Gb/s SATA 6Gb/s	6 x SATA 6Gb/s
M.2	3rd Gen AMD Ryzen Processors: 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode) AMD B550 Chipset: 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)* * When the M.2_2 Socket 3 is populated, SATA6G_5/6 ports will be disabled.
SATA RAID	0/1/10

Audio Chipset Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels Audio Channels	7.1 Channels * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio.

Meet Your Seller

ASUS ROG Strix B550-E Gaming AMD AM4 (3rd Gen Ryzen) ATX Gaming Motherboard (PCIe 4.0, NVIDIA SLI, WiFi 6, 2.5Gb LAN, 14+2 Power Stages, Front USB 3.2 Type-C, Addressable Gen 2 RGB and AURA Sync)

Learn more about the ASUS STRIX B550-E GAMING

Customer Reviews of the ASUS STRIX B550-E GAMING

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Sponsored ads from outside of Newegg

Return Policy For Volcanic electron

Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth	Bluetooth v5.1* * BT 5.1 function will be ready in Windows 10 build 19041 or later.

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen2 connector support additional 1 USB ports (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 1 x Thunderbolt header(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Q-Code

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)
