ASUS ROG Strix X470-F Gaming AM4 AMD X470 SATA 6Gb/s ATX AMD Motherboard

Name: ASUS ROG Strix X470-F Gaming AM4 ATX AMD Motherboard
Brand: ASUS
SKU: N82E16813119099
Price: 500.99 CAD
Availability: InStock
Rating: 4 (283 reviews)

(283) Write a Review

Option: Strix X470-F Gaming

Strix X470-F Gaming
Strix X470-I Gaming
TUF X470-Plus Gaming

AMD X470
AMD AM4 Socket AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation / 7th Generation A-series/Athlon X4 Processors
AMD Ryzen 2nd Generation Processors
DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors
DDR4 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
DDR4 2400/ 2133 MHz Un-buffered Memory

Overview

Specs

Reviews (283)

AMD X470 ATX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED lighting, DDR4 3600MHz support, dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2

Powered by AMD® Ryzen™ 2 AM4 and 7th generation Athlon™ processors to maximize connectivity and speed with dual NVMe M.2, front-panel USB 3.1 Gen2 and Gigabit LAN
5-Way Optimization with Auto-Tuning and Fan Xpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
Unmatched personalization with ASUS exclusive Aura Sync RGB lighting, two RGB headers and one addressable RGB header
Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
Industry-leading 8-channel HD audio driven by Japanese capacitors features an onboard LED-illuminated design

ROG Strix X470-F Gaming is the perfect fusion of performance and panache. It's an ATX motherboard packed with easy-to-use tuning tech and understated aesthetics for those who demand great gaming experiences and refined style. Strix X470-F Gaming keeps the pedal down on performance, and its rich customization options let you push your rig from subtle to standout in seconds.

GAMER'S GUARDIAN

1 Pre-Mounted I/O

ROG's patent-pending I/O shield is finished in sleek matte black, and it's pre-mounted to make it easy to install the motherboard.

2 High-Quality Solid Capacitors

High-quality capacitors withstand extreme temperatures of -55°C to 105°C — a range that's 110% better than the industry standard.

3 SafeSlot

ASUS SafeSlot is the PCIe slot reinvented. Featuring a new single-step, insert-molding manufacturing process that integrates fortifying metal and additional solder points, SafeSlot provides stronger PCIe device retention and greater shearing resistance.

4 Q-LEDs

Onboard LEDs indicate power status as well as potential problems with the CPU, memory, graphics card, or boot device.

5 Overcurrent Protection

Onboard resettable fuses protect all connection ports and DRAM modules against overcurrent and short-circuit damage, extending the lifespan of your motherboard.

6 Digi+ VRM

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring smooth power delivery to the CPU.

Overview

Pre-mounted I/ Shield
2 x USB 3.1 Gen 2 ports
‧ 2 x Type A
Display Port
‧ HDMI
‧ DP
Intel® I211-AT Gigabit LAN
‧ ROG GameFirst technology
‧ LANGuard
Multi-GPU SLI/CFX support
2 x PCIe 3.0 x 16 (supports x 16, x8/x8)

1 x PCIe 2.0 x 16 (at x4 mode)

3 x PCIe 2.0 x 1

SupremeFX S1220A CODEC
‧ Impedance sense
‧ High quality output and input
‧ SupremeFX shielding
‧ Dual OP amplifiers
DDR4 3600 MHz(O.C.)
‧ 4 x DIMM, dual-channel
AM4 socket for AMD 2^nd/1^st Generation Ryzen™ / Ryzen™ with Radeon™ Vega Graphics / 7th Generation A-Series /Athlon X4 Processors

1 x USB 3.1 Gen 2 front panel connector
6 x SATA 6Gb/s
2 x M.2 Socket 3
‧ 1 x Type 2242-22110, supports SATA & PCIe 3.0 x 4 mode, with heatsink
‧ 1 x Type 2242-2280, supports SATA & PCIe 3.0 x 2 mode
1 x Thermal sensor header

2 x AURA RGB headers

1 x AURA Addressable RGB header

AESTHETICS

Up your aesthetic horizons with a new cyber-text design and Aura illumination — to create a personalized gaming with immersion that extends from the inside out.

ID Design

CYBER OUTLOOK

The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a satisfying premium touch.

PRE-MOUNTED I/O SHIELD

The patent-pending ROG pre-mounted I/O shield offers increased protection against electrostatic discharge of up to 12kV and is pre-fitted to make it even easier to install the motherboard. Its sleek new design makes it look as good as it performs.

Aura Sync

OUTSHINE THE COMPETITION

ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

^{*The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.

**RGB extension cables are included. LED strips and Aura Sync-compatible devices are sold separately.}

AURA SYNC X PHILIPS HUE

Strix X470-F Gaming takes ASUS Aura into the home, with the all-new ability to synchronize effects with Philips® Hue* personal wireless lighting. Now you can control Hue light bulbs, strips and lamps from the intuitive Aura app. Create immersive illumination that extends beyond your rig — make the whole room part of your gaming experience.

GAMING STYLE

LIFE STYLE

PERFECT SYNCHRONIZATION

The ASUS Aura ecosystem is in the ascendancy, with an extensive and growing list of ASUS products now offering Aura Sync compatibility — along with loads of compatible accessories and kits available through partners. Your ROG Strix motherboard's built-in Aura RGB lighting can be easily synced with PC cases, memory modules, coolers and RGB LED strips from a broad selection of well-known manufacturers. And they can all be easily managed via the intuitive ASUS Aura software.

PERFORMANCE

Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies that enhance memory reliability and speed.

Memory

IMPROVED DDR4 STABILITY

Tuned to take full advantage of Ryzen's capabilities, and ready for the latest memory kits, ROG Strix X470 Series motherboards are built specifically for high-performance gaming rigs. Intelligent firmware delivers the plug-and-play experience that first-time DIYers demand and the essential tuning options that performance-addicts need. Maximize frame rates with a high-bandwidth memory kit, or leverage a host of tuning options to extract peak performance potential from a modest setup. Load up any way you want, and get into the game with Strix X470 Series motherboards.

RAMCACHE II

RAMCache II turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.

Optimization

ONE-CLICK OVERCLOCKING AND COOLING

Take care of complex tuning with just one click. ASUS 5-Way Optimization makes your PC smart by dynamically optimizing essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig.

An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
Fans stay whisper-quiet during everyday computing, and deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks.
An all-new stress test allows users to optimize and overclock for CPU- or memory-centric workloads.

TPU
CPU PERFORMANCE BOOST

Unleash your PC's full performance potential with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclocking.

EPU
ALL-ROUND ENERGY EFFICIENCY

With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

FAN XPERT 4
FLEXIBLE COOLING CONTROLS FOR AIR OR LIQUID

ROG Strix X470-F Gaming gives you comprehensive control over fans, water pumps and all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all.

DIGI+ POWER CONTROL
PRECISE DIGITAL POWER CONTROL

ROG's Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

TURBO CORE APP
OPTIMIZE PER-CORE PERFORMANCE FOR EVERY APP

AMD's latest processors feature per-core tuning, and the ASUS Turbo Core app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.

MEDIA-ACCLAIMED UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your Ryzen-based rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

Designed for easy setup, the EZ Mode presents all the vital settings and stats on a single page. With guided wizards, drag and drop capability that takes the hassle out of complex tasks, and one-click convenience to apply important settings, your rig will be up and running in no time.

① Fast Clock Adjustment: Use mouse controls to change the time and date.
② Intuitive graphical fan control: Fine-tune individual fans simply by dragging a curve with the mouse.
③ EZ Tuning Wizard: OC and RAID. Select your hardware and apply different scenarios to tune system performance, or streamline your RAID configuration for faster data retrieval and backups.
④ SATA Information: View SATA port details for easy device recognition.
⑤ AURA on/off/stealth: Optimize performance and cooling, monitor stats, enable and disable onboard features, and configure which ports and drives have priority.

When you're ready to take a deeper dive into the configuration of your gaming rig, Advanced Mode grants total control. Each section is intuitively organized, and a built-in search feature makes it easy to find the option you need. Tweak cooling parameters, save profiles, apply overclocks, and unleash the full potential of your Ryzen-based gaming rig.

① SATA Port Renaming: Rename SATA ports for easy identification.
② EZ Flash 3: Flash the latest BIOS via the internet from within the BIOS.
③ Secure Erase: Restore your SSDs to factory-fresh condition.
④ ASUS User Profile: Port configuration settings between different BIOS versions or share them with friends.
⑤ GPU POST: Automatically detect selected ASUS graphics cards to view detailed information.
⑥ My Favorites: Quickly find tuning options and add preferred tools to the list.
⑦ S.M.A.R.T.: Check your storages devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.
⑧ Search Function: Quickly and easily find the option or setting you're looking for.
⑨ Last Modified Log: Track the latest changes and save preferred profiles onto a USB drive.

Cooling

COOLER BY DESIGN

ROG Strix X470-F Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.

Multiple temperature sources

Each header can be set to monitor and react to three user-configurable thermal sensors, for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

Water pump+

A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

4-pin PWM/DC fan

Every onboard header supports auto-detection of PWM or DC fans.

^{*W_PUMP+ and AIO PUMP are also PWM/DC controllable.}

Smart protection

A dedicated circuit protects each fan header from over-temperature and over-current.

AIO pump

A dedicated PWM/DC header for self-contained water-cooling setups.

DUAL M.2 WITH PERFECTED COOLING

ROG Strix X470-F is equipped with a stylish, angular M.2 heatsink that keeps your SSD cool. By efficiently dissipating heat away from the M.2 area, Strix X470-F minimizes the possibility of performance-sapping throttling, which can occur when drives become too warm.

AUDIO

Built-in gaming audio means you're ready to play, chat, stream or kick back with videos — right out of the gate. And included smart routing technology allows you to direct various audio streams to different devices.

Sonic Studio III

SONIC STUDIO III

Intuitive Audio-Tuning Suite

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

1 APP-SPECIFIC PROFILES

Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.

2 SURROUND SOUND

Surround sound for a truly immersive audio experience.

3 Sonic Studio Link

New Sonic Studio Link VR functionality extends its HRTF effects to headsets like the Oculus Rift and HTC Vive.

^{*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.}

GAMING
In-game sound effects and music are adjusted automatically to increase the feeling of immersion, so audio pulls you further into the game.

MOVIE
The Voice Clarity and Smart Volume sliders are set high to emphasize dialog, so you'll hear the softest whispers and experience minimum distortion at maximum volume.

MUSIC
Voice Clarity, Bass Boost and Treble Boost are carefully balanced so your music-listening experience feels like a live performance.

COMMUNICATION
Soft sounds are accentuated by Smart Volume for enhanced listening, while Voice Clarity boosts speech for crystal-clear conversations.

VIRTUAL REALITY
Sonic Studio Link applies Sonic Studio III effects to your VR headset, boosting immersion in virtual worlds.

MULTITASKING
Easy-to-use routing assigns different audio streams to different outputs, such as browser effects to headphones and game audio to speakers.

Sonic Radar III

SONIC RADAR III

Scan and Detect to Dominate

The new Sonic Radar III has an evolved audio engine to process sounds more accurately than ever, ensuring you're always aware of what's going on around you. It now also includes an on-screen arrow — to help you instantly pinpoint the enemy's position! See the origin of key in-game sounds and hone your enemy-pinpointing skills. Plus the new Audio Boost feature provides filters that let you hear even the faintest sounds, so you can become the hunter, not the hunted!

Improved Audio Algorithm

The new Sonic Radar III audio algorithm offers improved accuracy that helps you pinpoint the enemy.

3D Engine

Sonic Radar III is built around an all-new HUD, and it includes an in-game 3D arrow for a more intuitive experience.

Audio Boost

Hit hotkeys to briefly increase bass, midrange or treble frequencies to improve focus during different parts of your game.

Audio Radar

A visual cue to ensure Sonic Radar III is effective regardless of surrounding noise and chaos.

Supreme FX

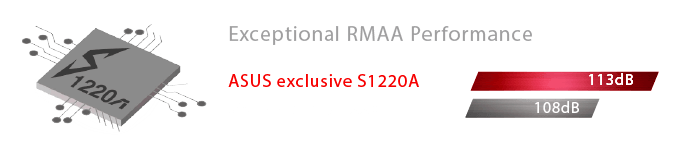

SUPREMEFX

Shielded audio, superior sound

Immerse yourself in sound with ROG Strix's SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. The addition of two op amps on the front-panel headphone output ensures adequate voltage and current to drive headphones to their full potential.

A.
Audio cover

Effective shielding against electromagnetic interference preserves the integrity of audio signals for the best quality.

B.
Audio-line shielding

Intelligent shielding blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

C.
Dual Op Amplifiers

Two onboard op amps pump exceptional audio to your favorite cans, with 32-600Ω headphone impedance.

D.
Premium Nichicon™ audio capacitors

High-quality Japanese-made components produce warm, natural audio with exceptional clarity and fidelity.

ROG Strix Gives You More

Design, build, tweak and show off your style — with ROG Strix behind you every step of the way.

GameFirst IV

GAMEFIRST IV

Team Up to Banish Lag

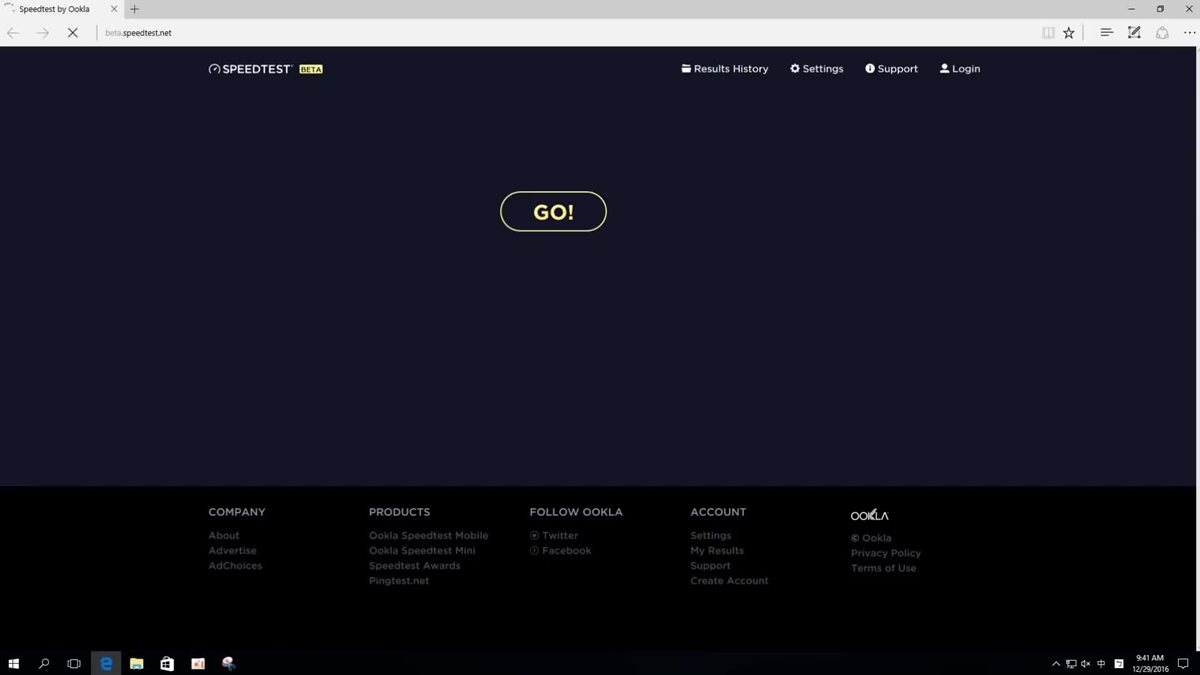

GameFirst IV optimizes network traffic for faster, lag-free online gaming. New Multi-Gate Teaming brings together all your networks to create gargantuan bandwidth and smoothest-ever gameplay. You'll also enjoy all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimized for best performance.

2:10

OverWolf

OVERWOLF

Stay in the Game

Overwolf is a clever, unobtrusive overlay that lets you browse the internet, email, IM, and stream or record gameplay – all while you're in the game. Color-matched ROG skins that display your status as a member of an elite pack are also available for download from the Overwolf App Store.

1:19

Beyond VR Ready

BEYOND VR READY

ROG Strix X470-F isn't just VR ready — it goes way beyond! The ASUS ROG Beyond VR Ready marque means that Strix X470-F has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS ROG Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

THE POWER OF AMD

AM4 socket for AMD Ryzen™ 2nd Generation / Ryzen™ with Radeon™ Vega Graphics / Ryzen™ 1st Generation / 7th Generation A Series / Athlon X4 processors.

The high-performance Ryzen processor supports up to eight cores, and is based on the innovative Zen core architecture. The 7th Generation A Series APUs feature integrated AMD Radeon R Series graphics. AMD AM4-socket processors feature dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes for superb performance.

AMD X470 chipset

The AMD X470 chipset delivers outstanding overclocking capabilities for the latest AMD AM4-socket Ryzen™ processors, 7th Generation A Series APUs and Athlon™ CPUs. It is optimized for multiple GPU configurations including NVDIA SLI™ and AMD CrossFireX™. It also provides two 10Gbps USB 3.1 Gen 2 ports and six 6Gbps SATA ports for faster data retrieval.

^{Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.}

^{Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
*Precise specifications and features vary by model . Please refer to the specification page
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.}

^{About ASUS

ASUS aspires to deliver the incredible in everything it does. With more than 17,000 employees around the globe with a world-class R&D team of 5,500 engineers, ASUS is dedicated to the design and manufacture of products that perfectly meet the needs of today’s (and tomorrow’s) digital home and office. ASUS’ broad portfolio includes motherboards, graphics cards, displays, desktop PCs, all-in-one PCs, laptops, servers, wireless networking devices, tablets, smartphones and wearables. Driven by innovation and committed to quality, the company won 4,385 awards and earned approximately US$13.3 billion of revenue in 2016.

© 2019 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.}

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	AMD Ryzen 2nd Generation Processors DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory * Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors DDR4 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory * AMD 7th Generation A-Series/Athlon X4 Processors DDR4 2400/ 2133 MHz Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported Channel Supported	Dual Channel

PCI Express 3.0 x16 PCI Express 3.0 x16	AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors 2 x PCIe 3.0 x16 (x16 or dual x8) AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (max at x4 mode)
PCI Express 2.0 x16	1 x PCI Express 2.0 x16 slot (max. at x4 mode)* * PCIeX16_3 slot shares bandwidth with PCIeX1_1 and PCIeX1_3.
PCI Express x1	3 x PCI Express 2.0 x1 slots

SATA 6Gb/s SATA 6Gb/s	6 x SATA 6Gb/s
M.2	AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode) AMD 7th Generation A-series/Athlon Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) AMD Athlon with Radeon Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) AMD X470 chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)* * M.2_2 socket shares PCIe clock with PCIeX1_1, when PCIeX1_1 or PCIeX1_3 are occupied, M.2_2 only can support SATA mode.
SATA RAID	0/1/10

Audio Chipset Audio Chipset	SupremeFX S1220A High Definition Audio CODEC
Audio Channels Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

LAN Chipset	Intel i211AT
Max LAN Speed	1Gbps

Meet Your Seller

ASUS ROG Strix X470-F Gaming AM4 AMD X470 SATA 6Gb/s ATX AMD Motherboard

Learn more about the ASUS Strix X470-F Gaming

Customer Reviews of the ASUS Strix X470-F Gaming

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

More Buying Options

Sponsored ads from outside of Newegg

Return Policy For Volcanic electron

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen2 front panel connector 1 x USB 3.1 Gen1 headers support additional 2 x USB 3.1 Gen1 ports 2 x USB 2.0 header supports additional 4 x USB 2.0 ports
Other Connectors	1 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Header(s) 1 x TPM connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX power connector 1 x 8-pin ATX 12V power connector

Item#: 9SIBWH4KA17932

Meet Your Seller

ASUS ROG Strix X470-F Gaming AM4 AMD X470 SATA 6Gb/s ATX AMD Motherboard

Learn more about the ASUS Strix X470-F Gaming

Customer Reviews of the ASUS Strix X470-F Gaming

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

More Buying Options

Sponsored ads from outside of Newegg

Return Policy For Volcanic electron
