Asus ROG Strix X570-E Gaming AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard with PCIe 4.0, Aura Sync RGB Lighting, 2.5 Gbps and Intel Gigabit LAN, WI-FI 6 (802.11Ax), Dual M.2 with Heatsinks, SATA 6 GB/S and USB 3.2 Gen 2

AMD AM4 Socket and PCIe 4.0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs
Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
Gaming networking: 2.5Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS Flashback™ for a friendlier building experience

The ROG Strix X570-E Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Next-generation wireless networking delivers the smoothest online gameplay and a comprehensive cooling options ensure stable performance. Topped off with futuristic styling with onboard illumination, ROG Strix X570-E Gaming equips you with all you need to build a formidable weapon to rise above the rest.

① ROG Patented Pre-Mounted I/O Shield.

‧ BIOS FlashbackTM button

‧ HDMI 2.0

‧ DisplayPort 1.2

② 2.5G LAN

Intel® I211-AT Gigabit LAN

‧ ROG GameFirst V

‧ Anti-surge LANGuard

USB 3.2 Gen 2

‧ 7 x Type-A

‧ 1 x Type-C

③ Intel® Wi-Fi 6 AX200

④ Gold-Plated Audio Jacks

⑤ Multi-GPU SLI®/CFX support

‧ 2 x PCle 4.0 x 16 Safeslots(x16,x8 x8)[CPU]

‧ 1 x PCIe 4.0 x 16 slot (x4)

‧ 2 x PCIe 4.0 x 1 slots

⑥ SupremeFX S1220A CODEC

‧ Dual Op Amplifiers

‧ Impedance sense for font and rear

‧ 120dB SNR stereo playback output

‧ 113dB SNR recording input

Sonic Studio III Sonic Studio Virtual Mixer
Sonic Radar III
DTS® Sound Unbound

⑦ Q-Code

⑧ ASUS NODE Connector

⑨ ProCool II

⑩ 2 x 4-pin Aura RGB headers

2 x 3-pin Addressable Gen 2 headers

⑪ AMD AM4 Socket

for 3rd and 2nd Gen AMD Ryzen™/2nd

and 1st Gen AMD Ryzen™ with Radeon™

Vega Graphics Processors

⑫ 4x DDR4 DIMM

‧ OptiMem

⑬ 1 x USB 3.2 Gen 2

‧ front panel connector

⑭ Active PCH Heatsink

⑮ 2 x M.2 Socket 3 with M Key.

Type 2242/2260/2280/22110 storage devices support

(PCIe 4.0 and SATA modes)

⑯ 8 x SATA 6Gb/s

⑰ FlexKey

⑱ 2 x USB 3.2 Gen 1

4 x USB 2.0

The specifications depend on different CPU types. The listed specifications are based on 3rd Gen AMD Ryzen™ Processors.

SOLID HARDWARE SPECS

With comprehensive cooling options and upgraded power delivery to fuel Ryzen CPUs with more cores, plus faster storage and networking, ROG Strix X570-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

Power

POWER DESIGN

Digital power control and an array of power stages ensures ROG Strix X570-E Gaming has the muscle to control the latest AMD Ryzen CPUs.

Power Connector

ProCool II Power Connector

ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

Power Connector

Digi+ Power Control

The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.

Driver & MOSFET

12+4 Power Stages

ROG Strix X570-E Gaming has a CPU VRM with 12+4 power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD processors demand.

Choke

Thermal Solution

ROG Strix X570-E Gaming uses efficient alloy chokes and high-quality thermal pads to help transfer heat from the VRM array to a sink with ample surface area for the latest processors.

Capacitor

High Quality Chokes and Caps

Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

Cooling

COOLING INNOVATION

MOS Heatsink With 8mm Heatpipe

A MOS heatsink provides a large contact area for the MOSFETs and chokes, and a heatpipe enables more efficient cooling of the west and north MOS heatsink for better performance and wattage resistance.

Thermal Pad

A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.

6-Layer PCB

The 6-layer PCB quickly dissipates heat around the VRM, improving overall system stability and giving the CPU more overclocking headroom.

Active Chipset Heatsink

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. ROG Strix X570-E Gaming features an actively cooled heatsink to prevent throttling during sustained transfers.

Dual M.2 Heatsinks

The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

ACTIVE CHIPSET HEATSINK

Custom Delta Superflo Fan

The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.
* L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.

Air Duct
A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

Finned Heatsink
The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.

COOLER BY DESIGN

ROG Strix X570 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.

CPU

CPU Fan Header

A dedicated PWM/DC fan header for CPU coolers.

AIO Pump Fan Header

A dedicated PWM/DC header for self-contained water-cooling setups.

Water Pump + Header

A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

M.2

M.2 Heatsink

The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

M.2 Fan Header

A dedicated M.2 fan header helps keep temperatures low for improved performance and longevity.
* The M.2 fan holder is 3D-printable

Chassis

4-pin PWM/DC Fan Header

Every onboard header supports auto-detection of PWM or DC fans.

Storage & Memory

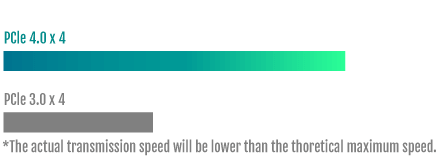

DUAL PCIE 4.0 M.2

Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

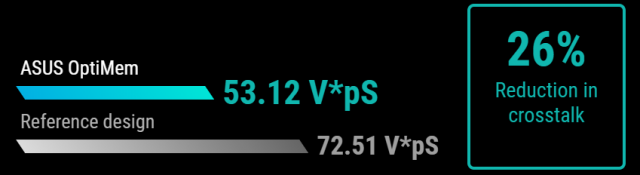

ASUS OptiMem

ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.

ASUS OptiMem advantage:

ASUS OptiMem benefits:

Improved memory stability and compatibility
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin

Tested by using Synopsys HSPICE simulation software

Networking

NEXT-GEN CONNECTIVITY

ROG Strix X570-E Gaming amps up networking with 2.5G Ethernet and next-gen Intel® Wi-Fi 6 (802.11ax) that surpasses gigabit speeds to take your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.

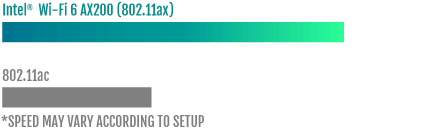

Wi-Fi 6 (802.11 ax)

Wi-Fi 6 (802.11 ax) The latest 802.11ax standard delivers high efficiency wireless connectivity for better gaming enjoyment. As well as providing better network pings in multi-user environments, 802.11ax also greatly improves throughput and coverage over earlier standards.

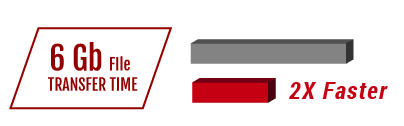

2.5G Ethernet

2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.

Intel Gigabit Ethernet

ROG Strix X570-E Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.

Audio

SUPREMEFX

Shielded Audio, Superior Sound

ROG Strix X570-E Gaming amps up networking with 2.5G Ethernet and next-gen Intel® Wi-Fi 6 (802.11ax) that surpasses gigabit speeds to take your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.

Audio line shielding

Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

Dual Op Amplifiers

With two op-amps onboard you're able to pump exceptional audio to your favorite cans, with 32-600Ω-headphone impedance for great flexibility.

Premium Nichicon® audio capacitors

Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

DESIGN & CUSTOMIZATION

The arrival of ROG Strix X570-E Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. Together with the most diverse ecosystem of components in the industry that you can easily makes creating and customizing your gaming rig that reflects your personal style wonderfully easy.

ID Design

STRIKING NEW DESIGN

ROG Strix X570-E Gaming boasts a striking new design with an intricate rainfall pattern that cuts diagonally across the board and, along with the iconic ROG logo, is infused with Aura RGB lighting that glows in a brilliant array of vibrant colors. Futuristic cyber-text patterns provide an additional stylish accent, rounding out a design that proudly proclaims the board's gaming identity.

DIY Friendly

ROG Patented Pre-Mounted I/O Shield

ROG's patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

Safeslot

2X slot
Provides stronger PCIe device retention and greater shearing resistance.

ESD Guards

2X greater
Electrostatic protection than the industry standard. ESD Guards cover the USB, audio and LAN ports.

BIOS Flashback™

BIOS Flashback™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS Flashback™ port and press the button. Updates can even be performed without having memory or a CPU installed.

Q-SLOT

3 clip
To Swap or secure your graphic cards.

Q-DIMM

1 sided
Clips for super-simple, super-secure handling of memory modules.

Q-LED

Onboard LEDs to indicate the power status, and problems with the CPU, memory, graphics card or boot device for quick diagnosis.

Q-Code

Diagnostic codes provide a reference for fast and easy look up of common installation and component problems.

FlexKey

The front-panel header lets you customize the reset button on the front-panel of your chassis to provide quick access to your choice of Aura lighting controls, DirectKey or system reset.

Aura Sync

OUTSHINE THE COMPETITION

ROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

ADDRESSABLE GEN 2 RGB HEADER

ROG Strix X570-E Gaming's Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Addressable Gen 2 device: Effect is perfectly matched to the LEDs on the strip, moving smoothly from end to end.

Addressable Gen 1 device: In most cases, effect will move beyond the physical number of LEDs on the strip, resulting in periods of darkness.

PERFECT
SYNCHRONIZATION

The ASUS Aura ecosystem is in the ascendancy, with an extensive and growing list of ASUS products now offering Aura Sync compatibility — along with loads of compatible accessories and kits available through partners. Your ROG Strix motherboard's built-in Aura RGB lighting easily syncs with PC cases, memory modules, coolers and RGB LED strips from a broad selection of well-known manufacturers. ASUS Aura software provides simple and intuitive lighting management.

Certified Compatibility

CERTIFIED COMPATIBILITY

Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. That's why ROG Strix undergoes an extensive certification program focused on providing the very best compatibility with the widest range of components and devices. Our extensive list of guaranteed-compatible components is an invaluable aid to building a ROG Strix gaming rig. It specifies thousands of compatible parts, and it includes a dedicated Qualified Vendor List (QVL) for memory — so you can build fuss-free.

ROG Strix Ecosystem

THE ROG STRIX ECOSYSTEM AWAITS

Gear up with ROG Strix components, from graphics and sound cards, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility — and enjoy more choice than any competing brand.

TUNE YOUR RIG YOU WANT

The ROG Strix X570-E Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.

Intelligent Control

5-WAY OPTIMIZATION

Take care of complex tuning with just one click. ASUS 5-Way Optimization makes your PC smart by dynamically optimizing essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig.

TPU INSIGHT

CPU-PERFORMANCE BOOST

The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.

EPU GUIDANCE

ALL-AROUND ENERGY EFFICIENCY

With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

FAN XPERT 4

FLEXIBLE COOLING CONTROLS FOR AIR OR LIQUID

Enjoy comprehensive control over fans, water pumps and all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

DIGI+ POWER CONTROL

PRECISE DIGITAL POWER CONTROL

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

TURBO APP

TURBO APP

AMD's processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

EZ MODE

EZ Tuning Wizard
Streamline your RAID configuration for faster data retrieval and backups.
Intuitive graphical fan control
Fine-tune individual fans simply by dragging a curve with the mouse.
SATA Information
View SATA port details for easy device recognition.
Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.

ADVANCED MODE

My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
SMART
Check your storage device Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75°C.

GameFirst V

GAMEFIRST V NETWORK CONTROL

GameFirst V is an ROG-exclusive tool that let you build an ROG networking ecosystem with an ROG router. Select the best Wi-Fi channel for maximum stability and minimum interference, optimize network traffic and your connection for lag-free online gaming, team your gateways and keep tabs on bandwidth-hogging apps, all from an intuitive interface that enables easy, on-the-fly adjustments.

CHANNEL SWITCH

Channel Switch is a brand-new GameFirst feature that scans the Wi-Fi network and helps you select a clear channel on your router that gives the best connection with minimal interference and maximum stability. The result is an ultrafast online gaming and networking experience.

EXTREME MODE

Extreme Mode prioritizes network packets for the application of your choice above traffic bound for other applications, ensuring faster, lag-free performance for online gaming, file transfers and more.

PRIORITIZATION
Auto & Manual Mode
Automatically optimize network settings for games and game-related apps with intelligent tools powered by AI and machine-learning, or manually control the prioritization of each type application based on your preference.

STATUS OVERLAY
View or adjust network settings during your game, without interrupting play.

ROG FIRST

ROG First searches for ROG routers on the network and lets you automatically optimize their adaptive QoS settings for the best gaming performance, so you don't have to log in and configure the router manually.

Gaming Audio

SONIC STUDIO III

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

^{*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.}

SONIC STUDIO VIRTUAL MIXER

A virtual audio device that lets streamers combine sound output and output from different apps. This allows you to mix your voice and video game audio within streaming software. A variety of adjustment and monitoring tools provide a high level of digital control.

SONIC STUDIO LINK

The new Sonic Studio Link now allows you to apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback devices.

APP-SPECIFIC PROFILES

Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.

Armoury Crate

Armoury Crate is a new software utility designed to give you centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for uniﬁed system lighting effects. The software also provides control of settings for a select and growing number of ROG products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and ROG news areas to help you stay in touch with the ROG gaming community.

AURA SYNC

DEVICE CONFIGURATION

DRIVER & MANUAL DOWNLOAD

GAMING HIGHLIGHT

ACCOUNT MANAGEMENT

RamCache III

RAMCACHE III

RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.

Smart mode: Automatically caches all your storage devices to maximize your system's resources.

The intuitive interface displays real-time drive information, such as current read/write speeds.

And allows you to quickly check the health status of assigned memory.

THE POWER OF AMD

AMD X570 chipset

The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX™. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.

AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen™ / 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors.

The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.

^{Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.

Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.

PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.}

^{Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

*Precise specifications and features vary by model . Please refer to the specification page.
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.}

^{About ASUS

ASUS aspires to deliver the incredible in everything it does. With more than 17,000 employees around the globe with a world-class R&D team of 5,500 engineers, ASUS is dedicated to the design and manufacture of products that perfectly meet the needs of today’s (and tomorrow’s) digital home and office. ASUS’ broad portfolio includes motherboards, graphics cards, displays, desktop PCs, all-in-one PCs, laptops, servers, wireless networking devices, tablets, smartphones and wearables. Driven by innovation and committed to quality, the company won 4,385 awards and earned approximately US$13.3 billion of revenue in 2016.

© 2019 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.}

Shop All ASUS Products | Visit Volcanic electron Store

ASUS AMD AM4 ROG Strix X570-E Gaming ATX Motherboard with PCIe 4.0, WiFi 6, 2.5Gbps LAN, Dual M.2, SATA 6Gb/s, USB 3.2 Gen 2

Name: ASUS AMD AM4 ROG Strix X570E Gaming ATX Motherboard with PCIe 4.0, WiFi 6, 2.5Gbps LAN
Brand: ASUS
SKU: N82E16813119111
Price: 588.99 CAD
Availability: InStock
Rating: 4 (2761 reviews)

(2,761)(177) Write a Review

Option: ROG STRIX X570-E GAMING

PRIME X570-P
PRIME X570-PRO
Pro WS X570-ACE
ROG CROSSHAIR VIII FORMULA
ROG CROSSHAIR VIII HERO (WI-FI)
ROG STRIX X570-E GAMING
ROG STRIX X570-E GAMING WIFI II
ROG STRIX X570-F GAMING
TUF GAMING X570-PLUS
TUF GAMING X570-PLUS (Wi-Fi)

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 headers
Comprehensive cooling: Active PCH heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
Gaming networking: 2.5Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11 ax) with MU-MIMO, and gateway teaming via GameFirst V
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
Gaming audio: High fidelity audio with SupremeFX S1220A, DTS Sound Unbound and Sonic Studio III to draw you deeper into the action

Overview

Specs

Reviews (2,761)

AMD AM4 Socket and PCIe 4.0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs
Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
Gaming networking: 2.5Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS Flashback™ for a friendlier building experience
