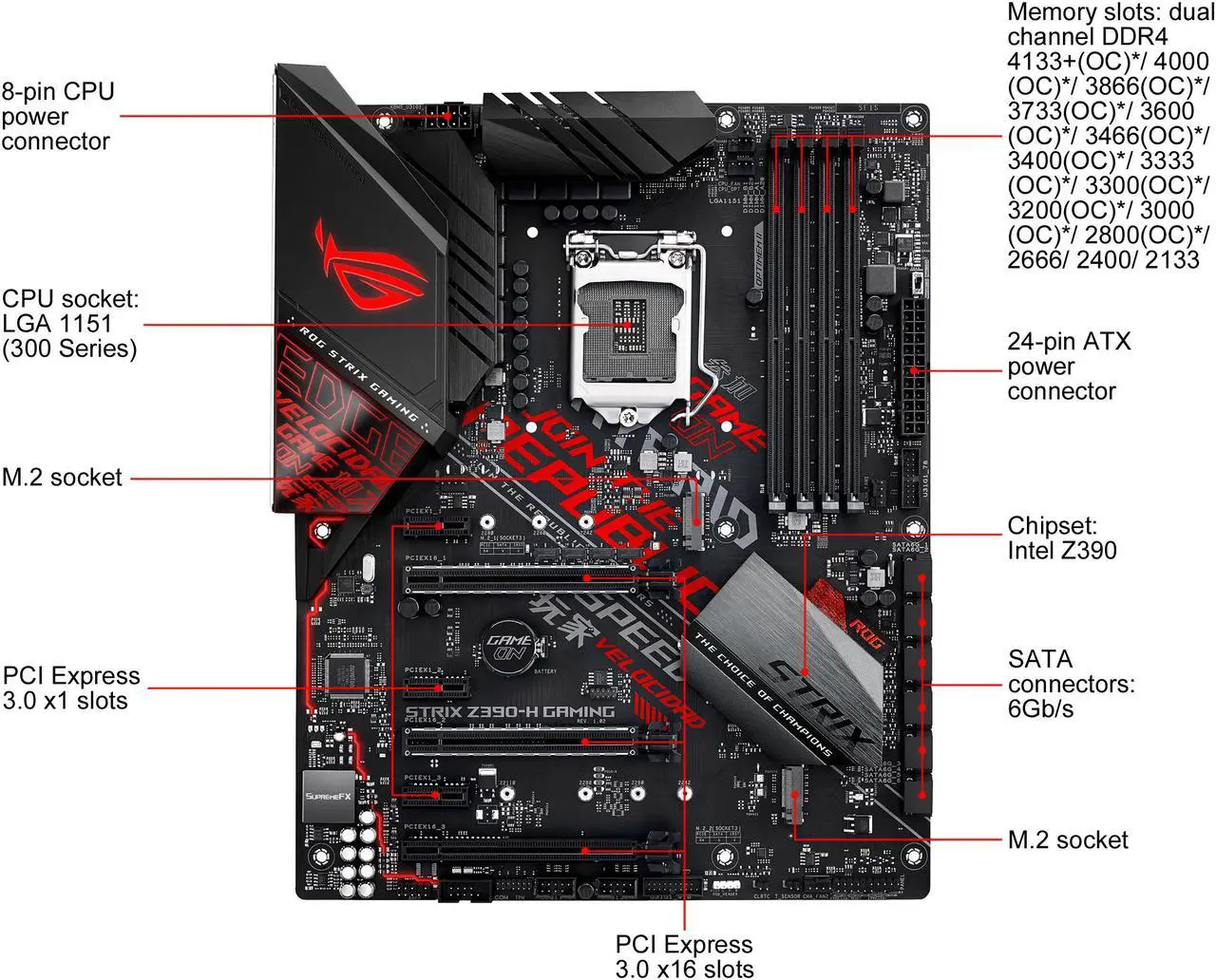

ASUS ROG Strix Z390-H Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 DP HDMI M.2 USB 3.1 Gen2 Gigabit LAN

Name: ASUS ROG Strix Z390-H Gaming Motherboard LGA 1151 (Intel 8th and 9th Gen) ATX Gigabit LAN
Brand: ASUS
SKU: N82E16813119158
Rating: 4 (1161 reviews)

(1,161)(38) Write a Review

Option: ROG Strix Z390-H Gaming

Prime Z390-A
Prime Z390-P
ROG Maximus XI Apex
ROG Maximus XI Extreme
ROG Maximus XI Formula
ROG Maximus XI Hero (Wi-Fi)
ROG Strix Z390-E Gaming
ROG Strix Z390-F Gaming
ROG Strix Z390-H Gaming
ROG Strix Z390-I Gaming
TUF Z390-Plus Gaming
TUF Z390-Plus Gaming (Wi-Fi)
WS Z390 PRO

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, and ASUS OptiMem II for better DRAM overclocking stability
8-channel HD audio with ROG exclusive SupremeFX S1220A codec driven by Japanese capacitors for warm and rich sound
Gamer's Guardian ensures component longevity with SafeSlot, ESD Guards and DRAM Overcurrent Protection
Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

Overview

Specs

Reviews (1,161)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

CPU Socket Type CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 for Intel Core 9000 series, 8th Generation Core i7/i5/i3, Pentium and Celeron processors * Not backward compatible with older generation of LGA 1151 CPUs ** Refer to www.asus.com for Intel CPU support list
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0* * Intel Turbo Boost Technology 2.0 support depends on the CPU type

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4133+(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported	64GB
Channel Supported Channel Supported	Dual Channel

PCI Express 3.0 x16	8th Gen Intel Core Processors 2 x PCIe 3.0 x16 slots (support x16, x8/x8) Intel Z390 Chipset 1 x PCIe 3.0 x16 slot (max. at x2 mode)
PCI Express x1	3 x PCIe 3.0 x1 slots

SATA 6Gb/s SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes) 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
SATA RAID	0/1/5/10

Audio Chipset Audio Chipset	ROG SupremeFX S1220A High Definition Audio CODEC
Audio Channels Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

Meet Your Seller

ASUS ROG Strix Z390-H Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 DP HDMI M.2 USB 3.1 Gen2 Gigabit LAN

Learn more about the ASUS Strix Z390-H Gaming

Customer Reviews of the ASUS Strix Z390-H Gaming

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

More Buying Options

Sponsored ads from outside of Newegg

Return Policy For TECHJUNKIE

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Rear Panel Ports
PS/2 PS/2	1 x PS/2 keyboard/mouse port
HDMI HDMI	1 x HDMI
RJ45	1 x Anti-surge LAN (RJ45) port
DisplayPort	1 x DisplayPort
USB 3.1	2 x USB 3.1 Gen1 ports [blue] 4 x USB3.1 Gen2 ports (4 x Type-A [red])
S/PDIF Out S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.1 Gen 1 header supports additional 4 USB 3.1 Gen 1 ports 2 x USB 2.0 header supports additional 4 USB 2.0 ports
Other Connectors	1 x 4-Pin CPU_FAN connector 1 x 4-Pin CPU_OPT fan connector 2 x 4-Pin Chassis fan connectors 1 x 4-Pin AIO_PUMP connector 1 x CPU_OV 1 x Thermal sensor connector 1 x Aura RGB headers 1 x MemOK!_II switch 1 x COM port 1 x TPM connector 1 x Front panel audio connector (AAFP) 1 x System panel connector 1 x Clear CMOS jumper

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX power connector 1 x 8-pin EATX 12V power connector

Item#: 9SIBJK3JVN2694
