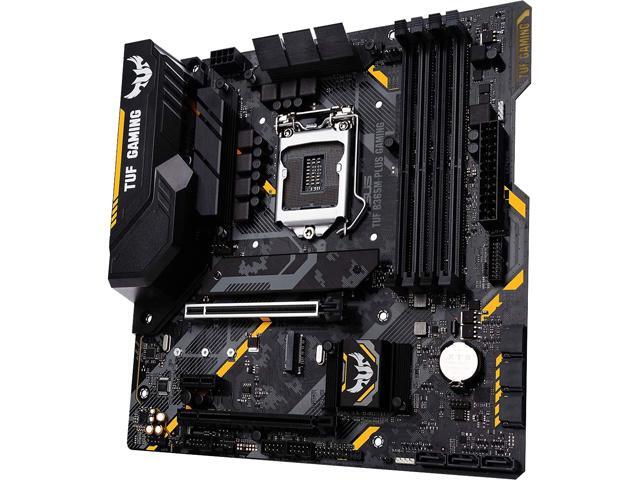

ASUS TUF B365M-Plus Gaming (Wi-Fi) LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

Be the first to review this product...
  • Intel B365
  • Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
  • DDR4 2666/2400/2133 MHz
Specs
Reviews

Learn more about the ASUS B365M-Plus Gaming (Wi-Fi)

Model
Brand ASUS
Series TUF
Model B365M-Plus Gaming (Wi-Fi)
Supported CPU
CPU Socket Type CPU Socket TypeLGA 1151 (300 Series)
CPU Type Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipsets
Chipset ChipsetIntel B365
Onboard Video
Onboard Video Chipset Onboard Video ChipsetIntel HD Graphics
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 2666/2400/2133 MHz
Maximum Memory Supported 64GB
Expansion Slots
PCI Express 3.0 x16 1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (max at x4 mode)
PCI Express x1 1 x PCIe 3.0/2.0 x1
Storage Devices
SATA 6Gb/s SATA 6Gb/s6 x SATA 6Gb/s
M.2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Audio ChipsetRealtek ALC1200 8-Channel High Definition Audio CODEC
Audio Channels Audio Channels8 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 Type-A up to 5Gbps
2 x USB 2.0
1 x 8-channel Audio I/O
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors 1 x Addressable RGB header
1 x Aura RGB Strip Header
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.60" x 9.50"
Power Pin 1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
Features
Features TUF Protection: ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability

Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability

Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

Intel Optane memory ready: Exploit the latest high-speed storage technology

Native M.2: Lightning-fast storage speeds

Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability

Bundle a PCIE TO M.2 WIFI CARD
Packaging
Package Contents Accessories:
User's manual
ASUS 1T1R Single Band Wi-Fi antenna
USB 2.0 cable
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
Additional Information
Date First Available October 14, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
