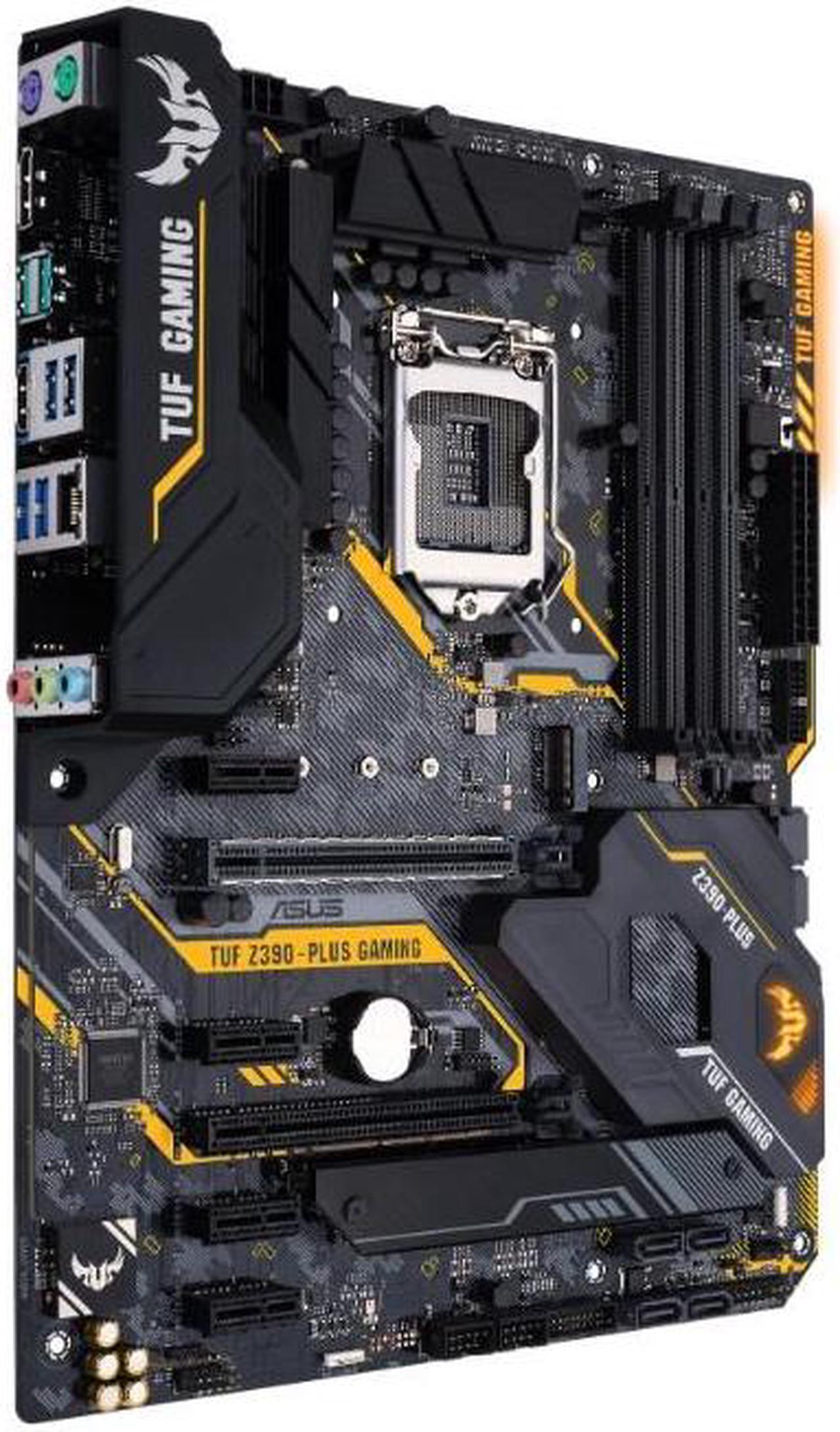

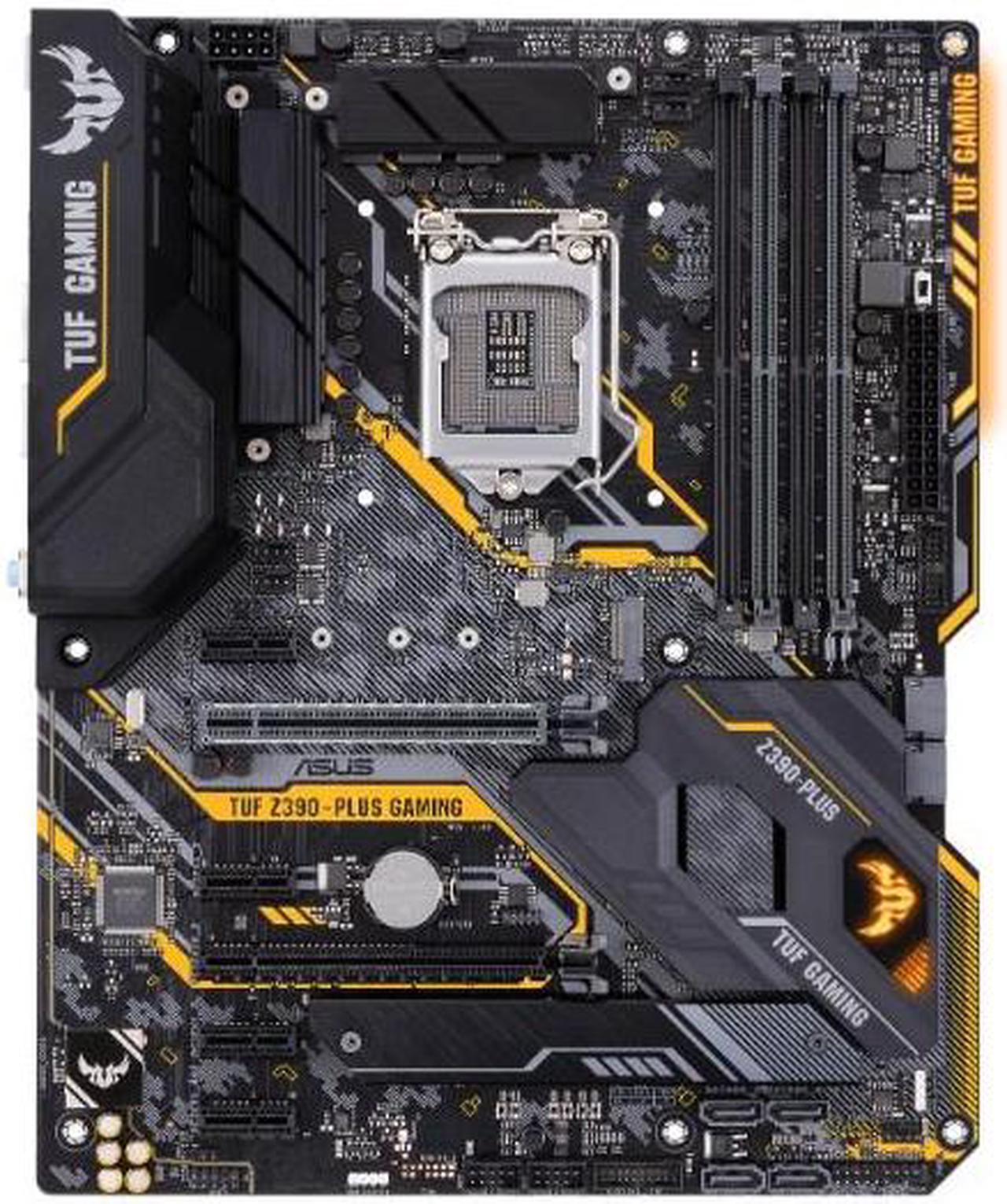

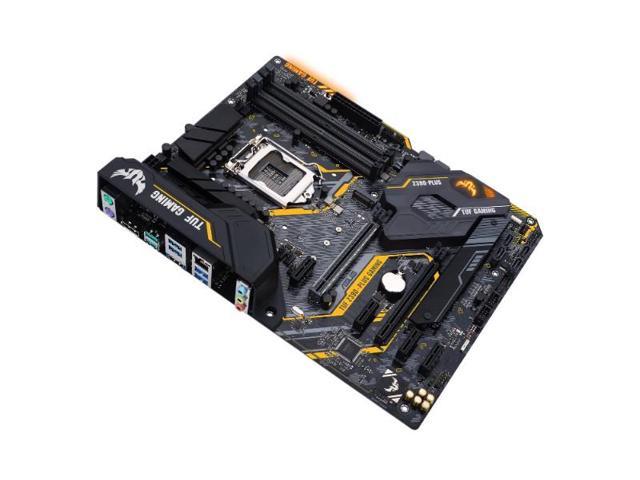

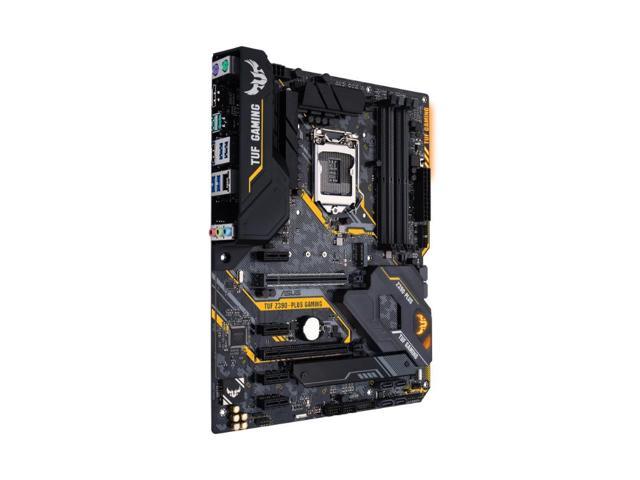

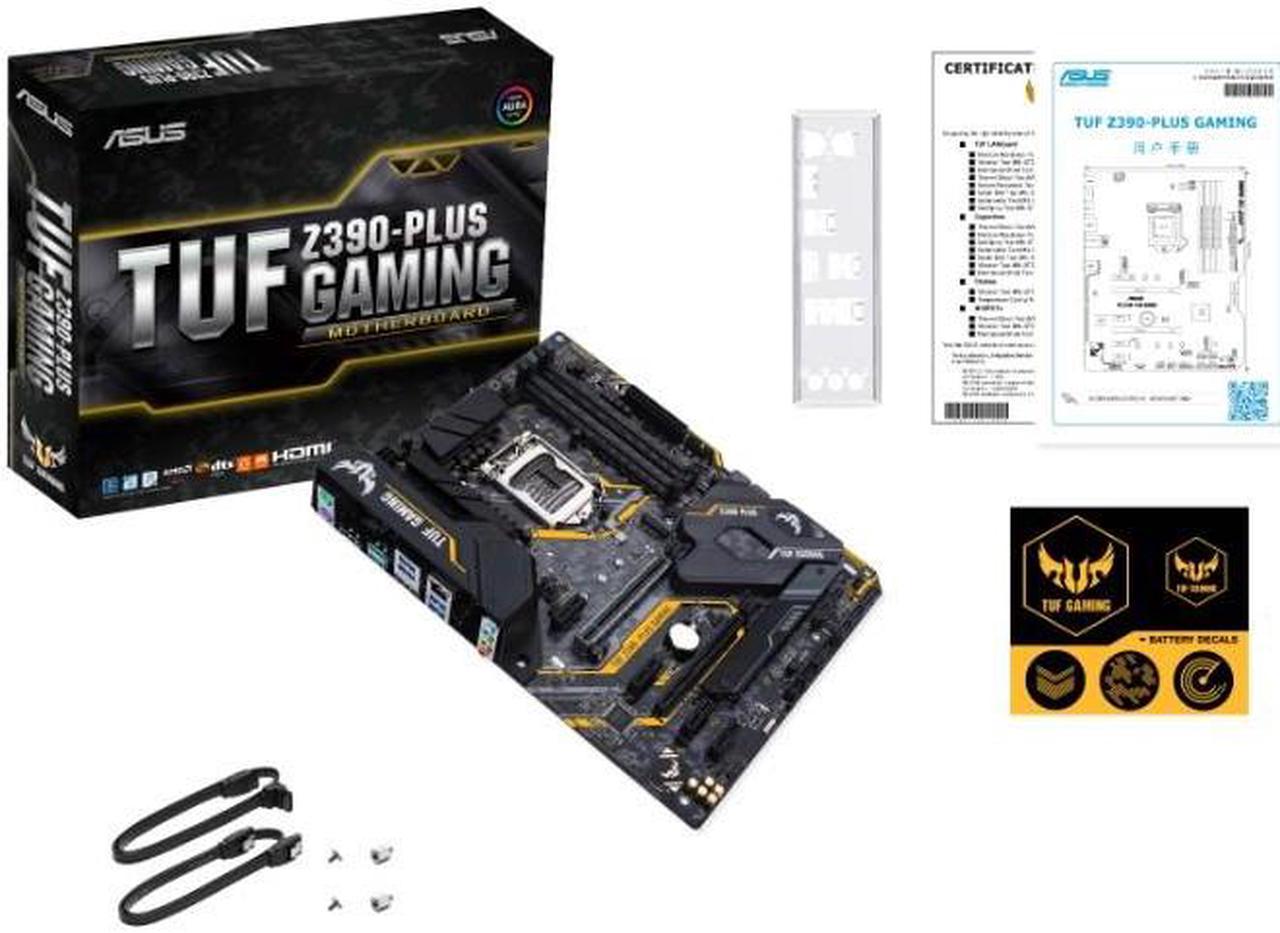

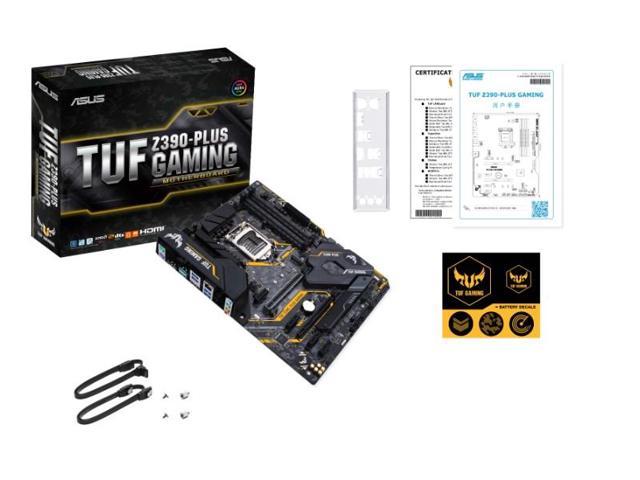

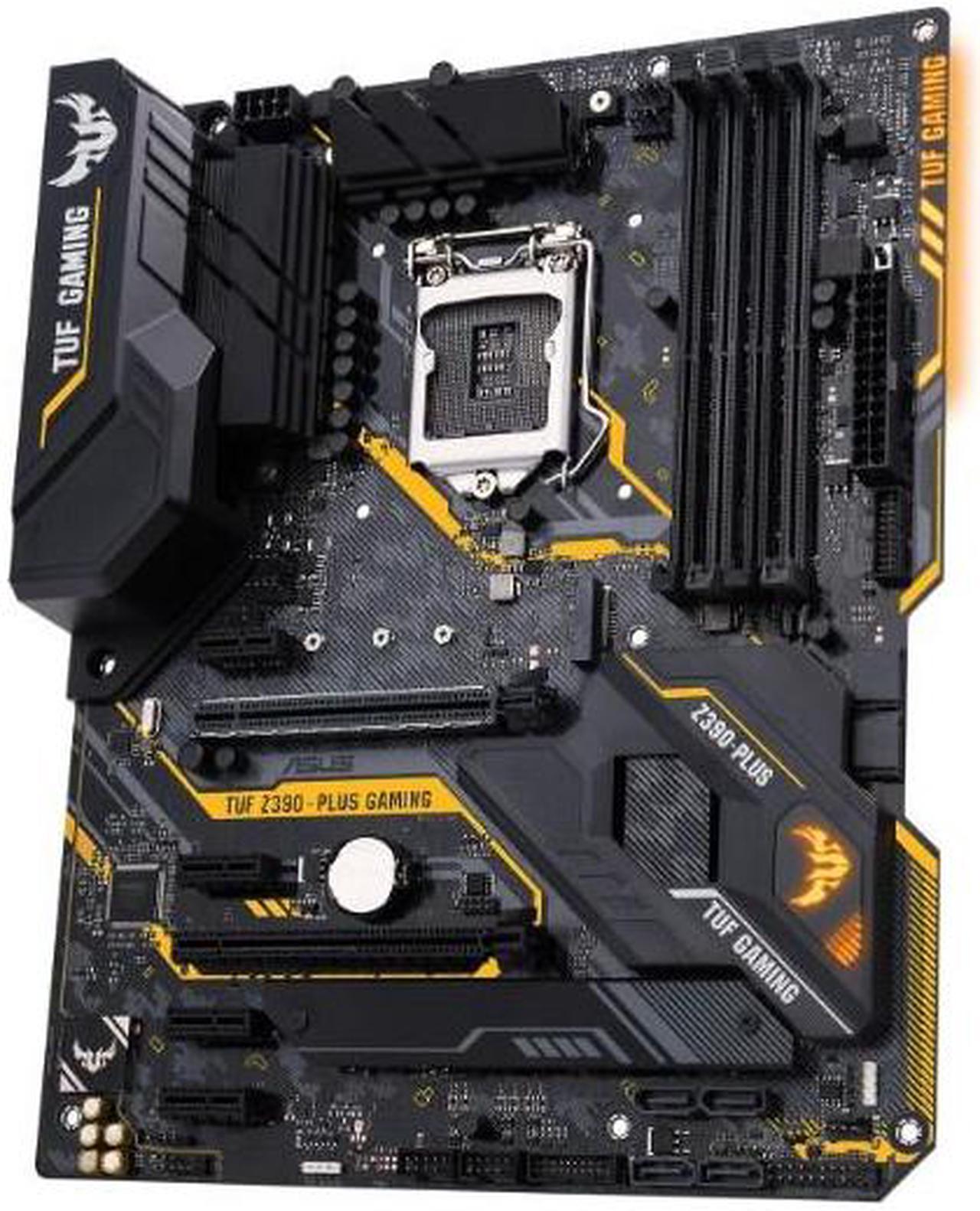

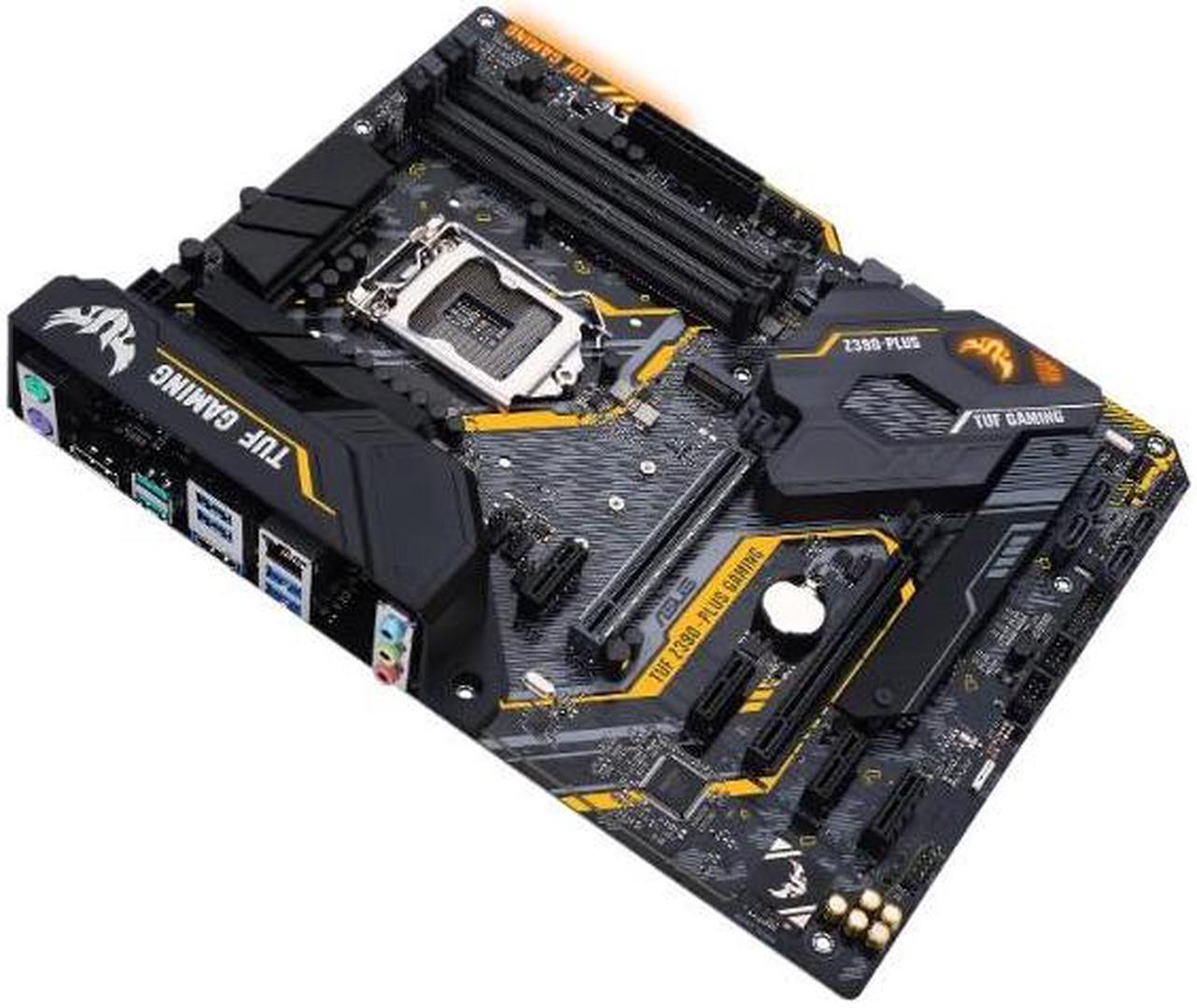

ASUS TUF Z390-PLUS GAMING LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

Name: ASUS TUF Z390-PLUS GAMING LGA 1151 (300 Series) ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813119177
Price: 449.99 CAD
Availability: InStock
Rating: 4 (1161 reviews)

(1,161)(38) Write a Review

Option: TUF Z390-Plus Gaming

Prime Z390-A
Prime Z390-P
ROG Maximus XI Apex
ROG Maximus XI Extreme
ROG Maximus XI Formula
ROG Maximus XI Hero (Wi-Fi)
ROG Strix Z390-E Gaming
ROG Strix Z390-F Gaming
ROG Strix Z390-I Gaming
TUF Z390-Plus Gaming

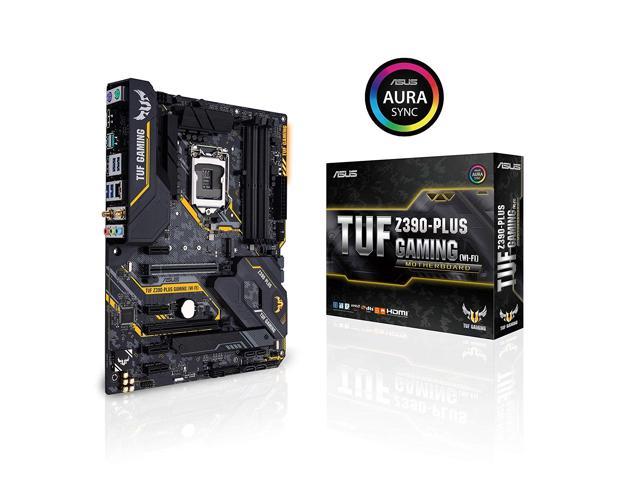

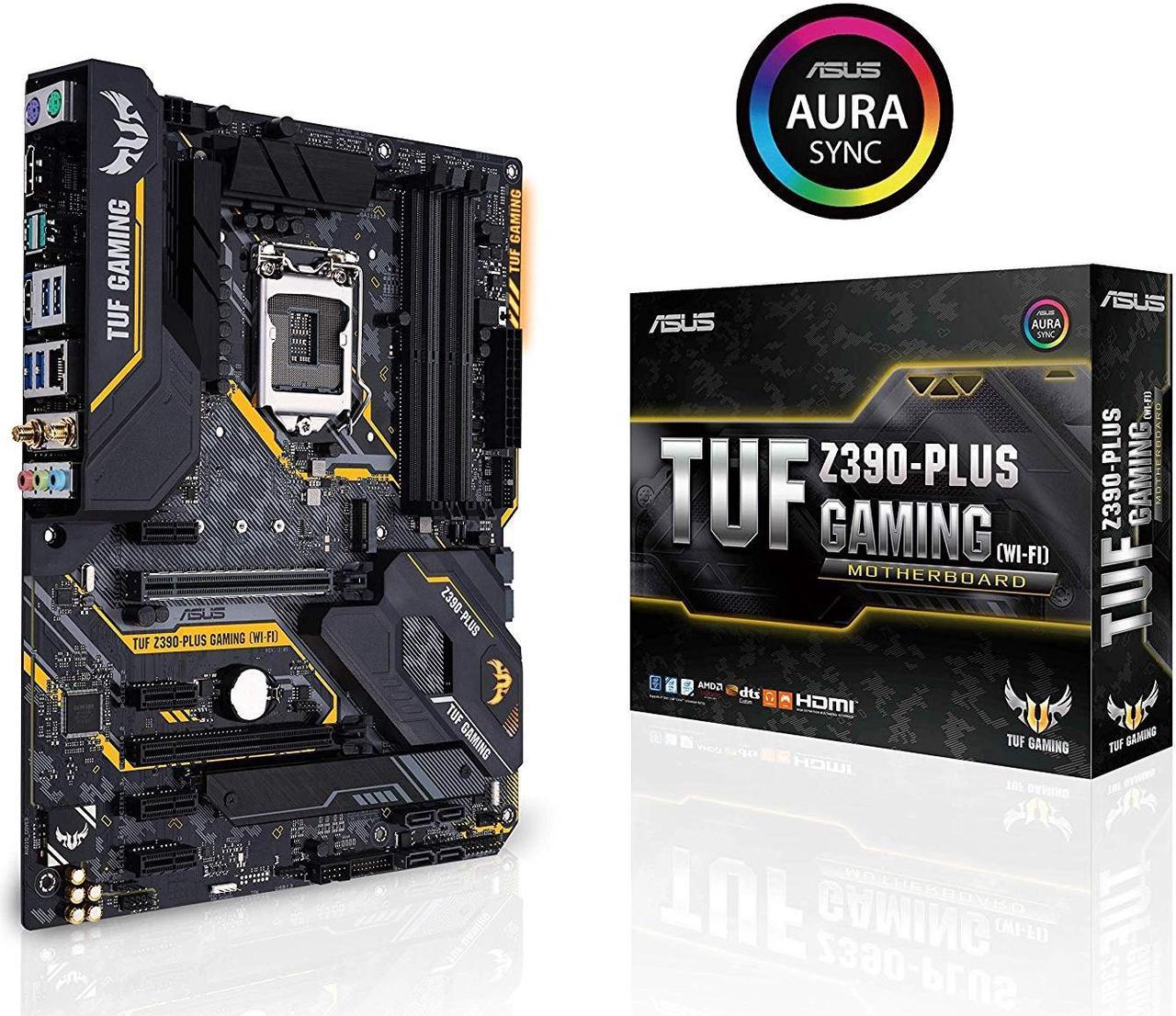

TUF Z390-Plus Gaming (Wi-Fi)
WS Z390 PRO

Intel Z390
Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
* Refer to www.asus.com for CPU support list
* Not backward compatible with older generation of LGA 1151 CPUs
DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.

Overview

Specs

Reviews (1,161)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Volcanic electron Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors * Refer to www.asus.com for CPU support list * Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies	Supports Intel Turbo Boost Technology 3.0 * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Maximum Memory Supported	64GB
Channel Supported Channel Supported	Dual Channel

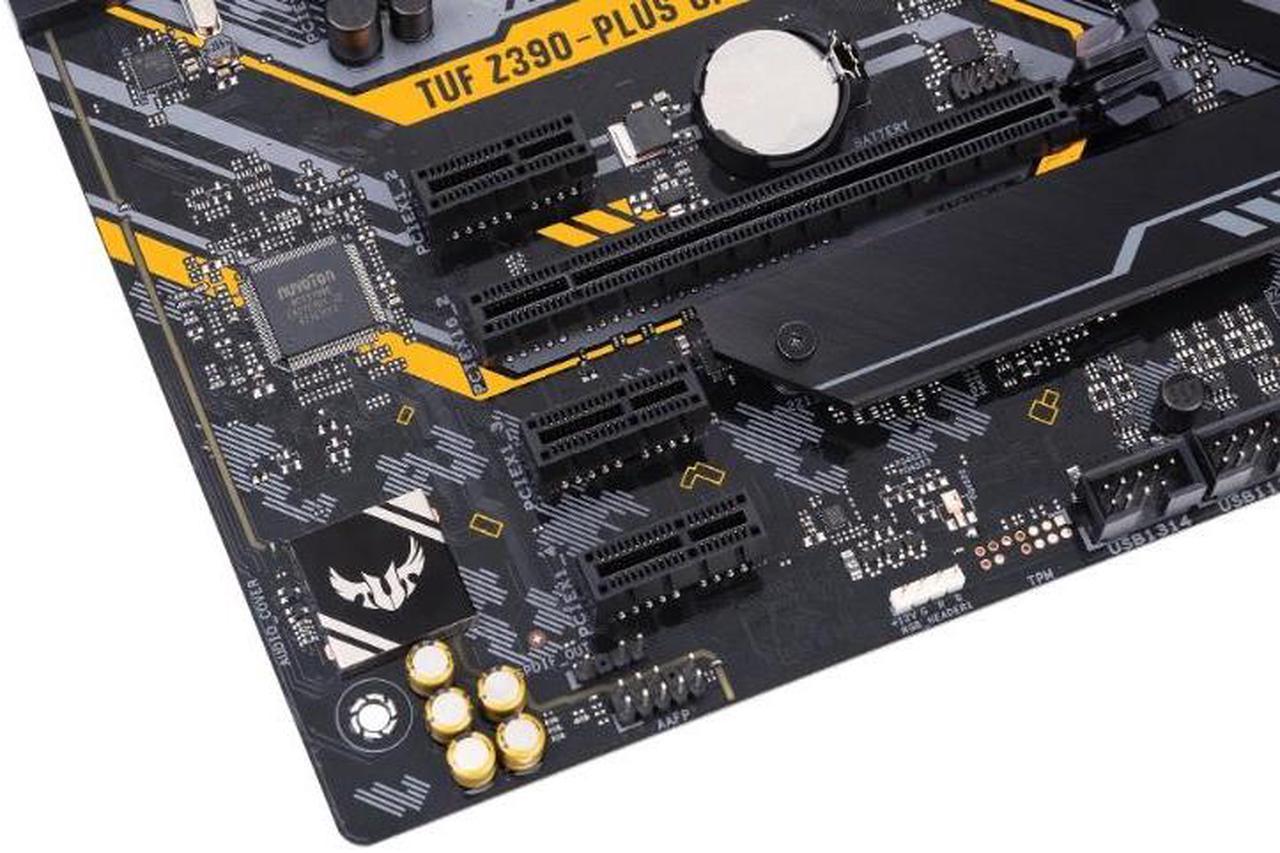

PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) * For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. * The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
PCI Express x1	4 x PCIe 3.0/2.0 x1 * * The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.

SATA 6Gb/s SATA 6Gb/s	6 x SATA 6.0Gb/s ports (gray) * When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
M.2	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)* 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)** * When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used. ** When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Audio Chipset Audio Chipset	Realtek ALC S1200A High Definition Audio CODEC
Audio Channels Audio Channels	8 Channels * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Meet Your Seller

ASUS TUF Z390-PLUS GAMING LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

Learn more about the ASUS Z390-PLUS GAMING

Customer Reviews of the ASUS Z390-PLUS GAMING

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Sponsored ads from outside of Newegg

Return Policy For Volcanic electron

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Rear Panel Ports
PS/2 PS/2	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green)
HDMI HDMI	1 x HDMI
RJ45	1 x RJ45
DisplayPort	1 x DisplayPort
USB 3.1	2 x USB 3.1 Gen 2 Type-A 4 x USB 3.1 Gen 1 Type A
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	2 x Aura RGB Strip Header(s) 1 x CPU Fan connector(s) (4-pin) 1 x CPU OPT Fan connector(s) (4-pin) 2 x Chassis Fan connector(s) (4-pin) 1 x AIO_PUMP connector 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector
