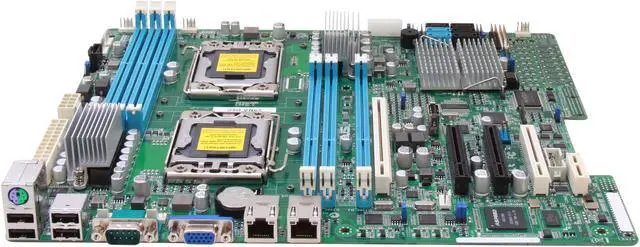

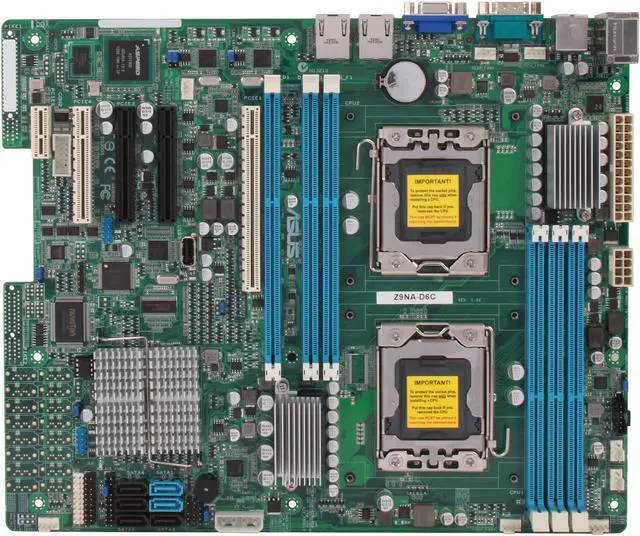

ASUS Z9NA-D6C Server Motherboard Dual LGA 1356 (Socket B2) DDR3 1600/1333/1066

ATX Case and Power Supply Compatible

The Z9NA-D6CC server board support dual Intel® Xeon® server processors in a compact size. It follows standard ATX mounting hole locations and is also ready for ATX power supplies. The design makes this board able to fit into server rack and tower chassis as well as standard PC ATX cases. All of these benefit users looking to access server performance with easily-available PC components.

Latest Storage Support

The Z9NA-D6CC server board ships with two up-to-date SATA 6Gbps ports which enable faster data retrieval, double the bandwidth of current bus systems. SATA DOM (Disk on Module) support, which is widely used in various embedded server applications, benefits customers building a diverse range of appliance servers.

Extremely Long-Lasting and Ultra-Reliable

100% Ultra-durable solid state capacitors offer ultra durability, improved lifespan, and enhanced thermal capabilities compared to traditional capacitors. These long-life solid state capacitors can sustain 5,000 hours at 221°F (105°C) ambient temperature, or 500,000 hours of operation at 149°F (65°C) ambient temperature, further ensuring the Z9NA-D6C remains reliable running even in extreme environments.

Digital Power Solution

All-new digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable CPU Vcore voltages. The Z9NA-D6C voltage regulation manages up to 89% peak power efficiency, with 85%+ during most normal operation. This ensures high power efficiency for the entire system to reduce customers' electrical bills.

Comprehensive Server Management Solution: ASWM Enterprise

ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, remote control, power control through a colorful, graphical, and informative interface.

Up-to-Date Intel Xeon® Processor E5-2400 Support

The motherboard supports the latest Intel Xeon® processor E5-2400 product family in LGA 1356 package with integrated memory controller to support three-channel (six DIMM per CPU) DDR3 memory.

System builders can also choose between robust server-grade DDR3 RDIMM/LRDIMM and ECC UDIMM, and more mainstream, widely available DDR3 non-ECC UDIMM. Additionally, PCI Express 3.0 support ensures Z9NA-D6C meets various performance-demanding applications. By supporting different processors, memory types and PCI Express 3.0 cards, the Z9NA-D6C becomes a versatile motherboard to cover a wide range of server and entry workstations.
