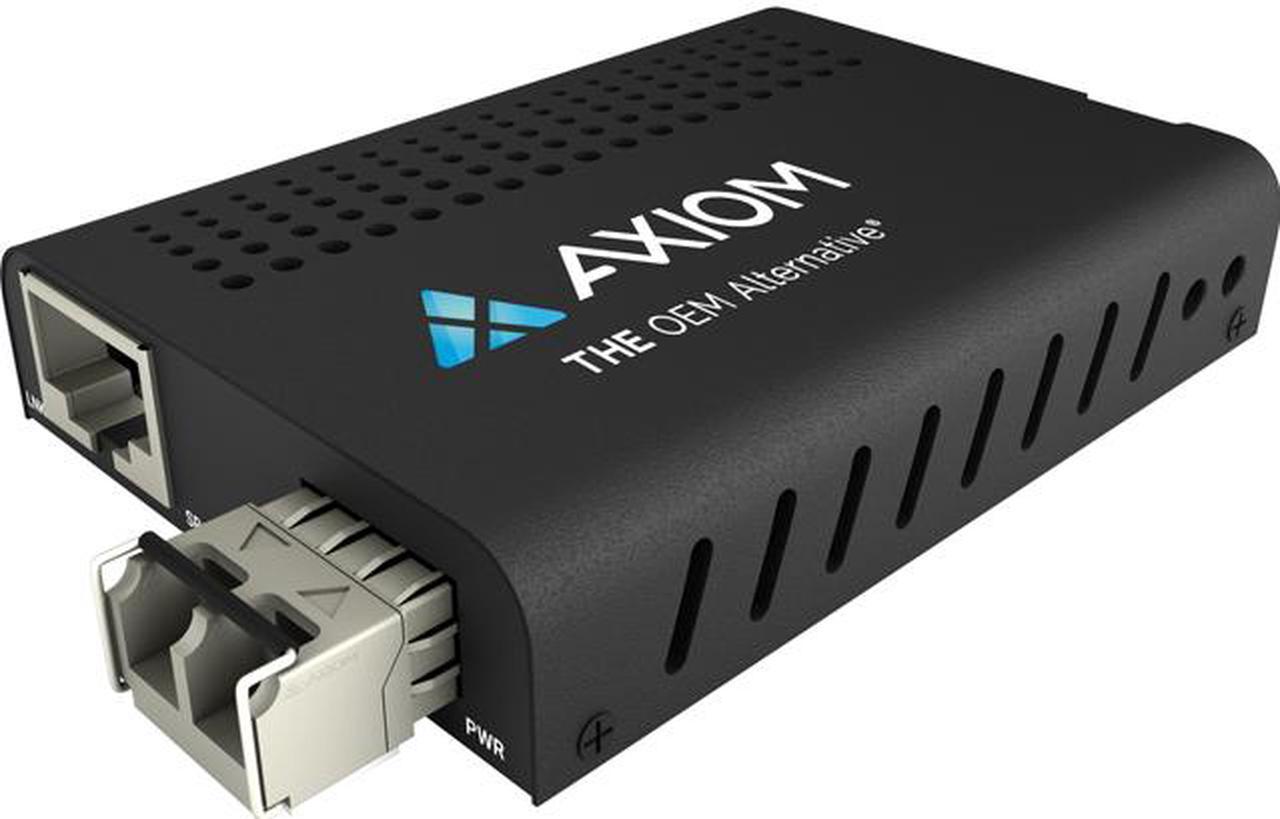

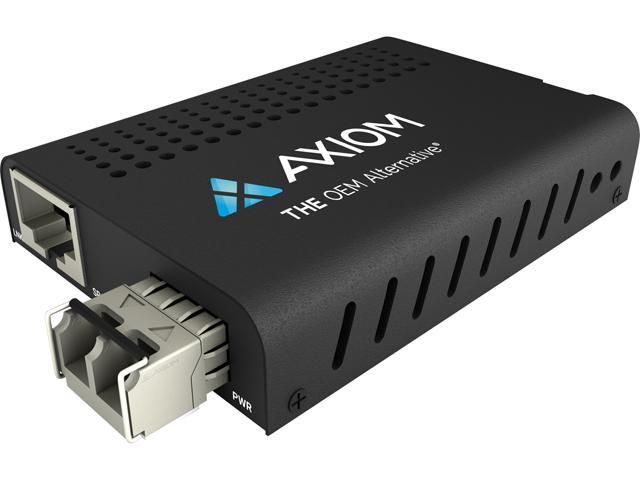

    Axiom Mini 1Gbs RJ45 to 1000BASE-LX Media Converter - SMF, LC, 20km, 1310nm

    Be the first to review this product...
    • Unit and Port LEDs allow for quick status information
    • Auto-Negotiation
    • Full-Duplex or Half-Duplex Operation Modes
    • Auto-MDI / MDIX
    • Automatic Link Restoration
    • Connect to legacy network equipment
    • Eliminate Collision Domains
    • 10 / 100 / 1000Base-TX UTP to 1000Base-FX Fiber media convertion
    • Supports IEEE802.3U IEEE802.3z 1000Base-TX / FX protocols, IEEE802.3ab standards
    • Available with Open SFP Port or optional built in LC / SC / ST Connections
    • DIP switch to set different configurations
    • Compact package size
    • Supports IEEE802.3x flow control; 100Base-FX
    +
    +
    Specs
    Reviews

    Learn more about the Axiom MC03-S3L20-AX

    Model
    Brand Axiom
    Model MC03-S3L20-AX
    Details
    Color Black
    Cable Length 3.54"
    Specifications Forwarding Mode: Store-and-forward
    Forwarding Frame: 9K Bytes
    LFP Mode: Supported
    Connector: One UTP RJ-45 connector, one LC Duplex Connector, one DC-inlet connector
    Operation mode: Full duplex or half duplex mode
    Power Requirement: Operating Voltage DC 5 ~ 12V Rated Current: 0.5 / 0.25A
    Power Consumption: Full-load < 3W
    Features
    Features The Axiom Mini 10 / 100 / 1000Base-TX to 100 / 1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10 / 100 / 1000Base-TX ports and 100 / 1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
    Dimensions & Weight
    Dimensions 0.79" x 3.54" x 2.36"
    Package Contents
    Package Quantity 0.28 lb.
    Additional Information
    Date First Available January 23, 2025
