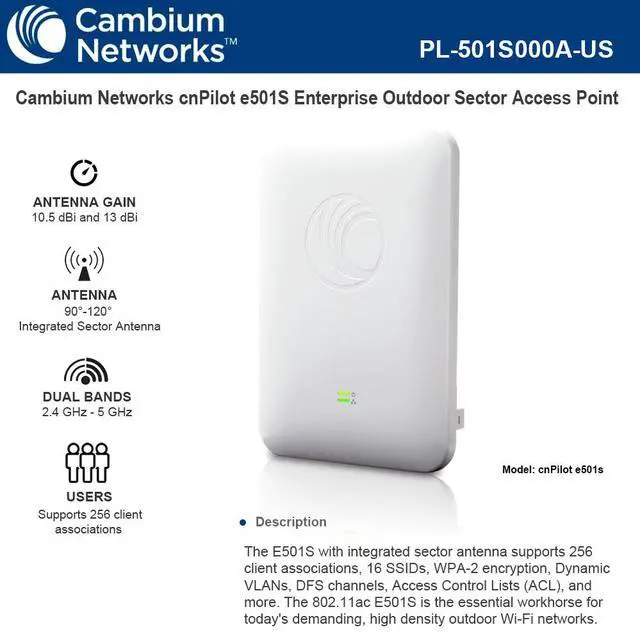

Cambium Networks - PL-501S000A-US - cnPilot Enterprise E501S Outdoor 802.11ac Wave 1 Dual Band Wi-Fi Access Point with

The Cambium Networks PL-501S000A-US is a cnPilot outdoor sector access point. With 90 to 120° coverage, this AP is perfect for long range coverage across large areas. Includes an electrical heater for cold start and LTE coexistence filters for added accessibility.
Product Features: Supports 256 clients, 16 SSI
Ds, WPA-2 encryption, Dynamic VLA
Ns, DFS channels, Access Control Lists (ACL), and more Rapidly setup multi-hop mesh networks by either dedicating one radio for mesh backhaul, or using both bands for client access simultaneously Aux PoE port offers PoE out, perfect for powering a standard 802.3 af camera or Cambium's PMP 450 or ePMP backhaul SMs Dual on-board Active/Standby memory banks ensure higher availability. Can store two versions of the software
Product

Specifications

: Frequency
Bands: 2.4GH
z: 2.4 - 2.4835GH z, Channels 1 - 13 (ETSI/CE), Channels 1 -11 (US), 5GHz: 5.15 - 5.85GH z
SSID Security: WPA-2
( 802.11 i): WPA2-Enterprise ( 802.1 x/EAP) and WPA2-Preshared-keys, Open
Max SSID: 16
Max Concurrent Clients: 256
Max Range: 213m (700ft); Actual range will vary based on local RF conditions and client capability, Mesh: 2.4GH
z: 3000m (9840ft), 5GHz: 1500m (4900ft)
Max Data Rates: 1.01G bps
Ethernet Ports: Dial Gigabit
Ethernet ports Antenna: Dual polarized. 2x2 MIMO. Integrated Sector antenna
Antenna Gain: 2.4GH
z: 10.5 dBi, 5GHz: 13dBi
Power Supply: 56V/30W Gigabit passive PoE injector
PoE Out: Aux
port: capable of 802.3 af power out or canopy power
Transmit Power: 2.4GH
z: 29dBm, 5GHz: 28dBm
Power Consumed:
Typical: 8W, Max: 12.95W
Dimensions: 30 x 20.4 x 6.5 cm (without bracket)
Weight: Without
Bracket: 881g, With
Bracket: 1063g
Operating Temperature: -30 to 60°C

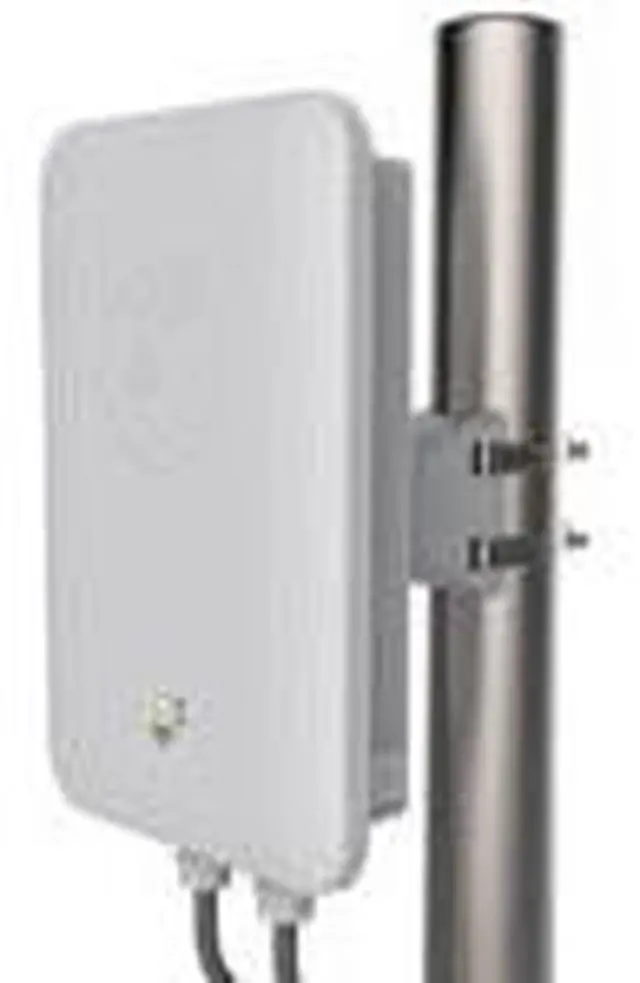

Mounting Options: Pole mount bracket (included) or wall-mount (with included bracket or without)
LTE Co-Existence: Special filter for rejecting interference on 2.4GH z from adjacent LTE bands 38, 40
Physical Security: Kensington
Lock Bracket Visual Status: (2) multi-color LEDs indicating Access Point and cnMaestro connectivity status
