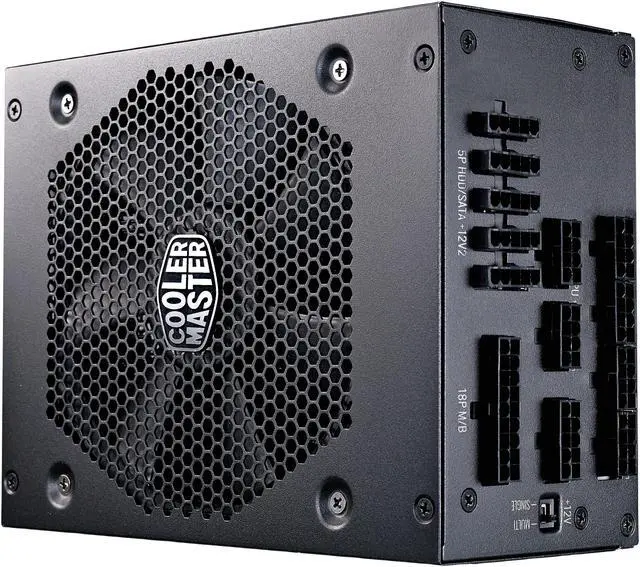

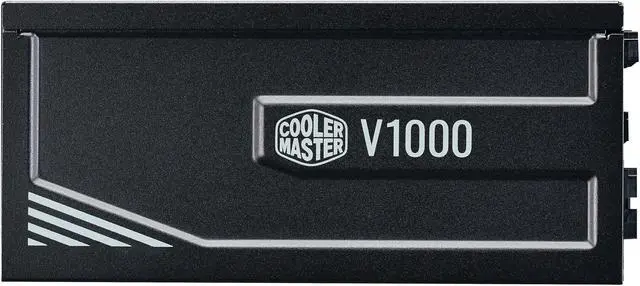

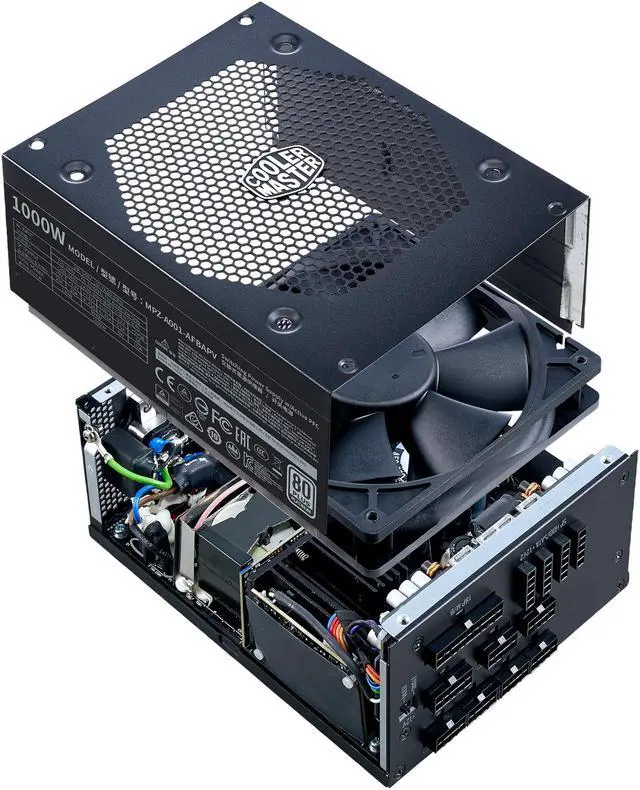

Cooler Master V1000 Platinum 1000W Full-Modular, 80 PLUS Platinum, Japanese Capacitors, Single/Multi Rail Switch, 10 Year Warranty Power Supply
- 80 PLUS Platinum Certification: Guarantees a typical efficiency of 92% under normal operating conditions.
- Thermal Regulation Mode (TRM) : Regulates temps, keeping a constant and quiet fan speed up to 60% of maximum load.
- Performance Driven Topology : Full-bridge LLC offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.
- Single/Multi-Rail Switch : Built in rail switch allows users to change between multi and single rail power output settings.
- 16 AWG PCI-e Cables : Thicker 16 AWG PCI-e cables for higher currents, improving efficiency and safety.
- 10 Year Warranty : Standard limited manufacturing warranty from the date of purchase.
+
+
Specs
Reviews (266)
Learn more about the Cooler Master MPZ-A001-AFBAPV-US
| Brand | Cooler Master |
|---|---|
| Series | V1000 Platinum |
| Model | MPZ-A001-AFBAPV-US |
| Type | ATX12V |
|---|---|
| Maximum Power | 1000 W |

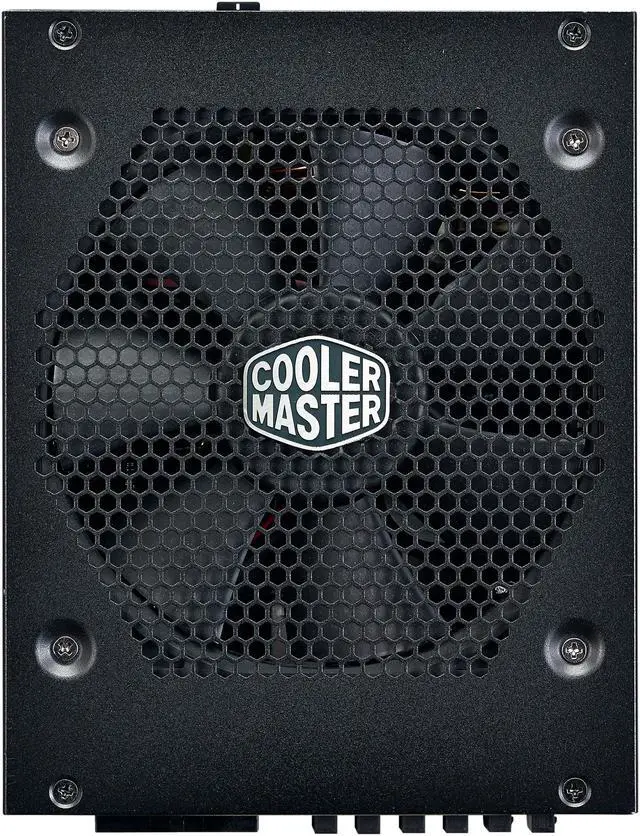

| Fans | 135mm fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single / Multi-Rail Switch |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 12 |
| Max PSU Length | 200 mm |
| Modular | Full Modular |
| Efficiency | 92% Typical Load |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 13 - 7A |
| Output | +5V@25A, +3.3V@25A, [email protected], [email protected], [email protected], +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | cTUVus, TUV, CE, CCC, FCC, EAC, RCM, BSMI, KC |

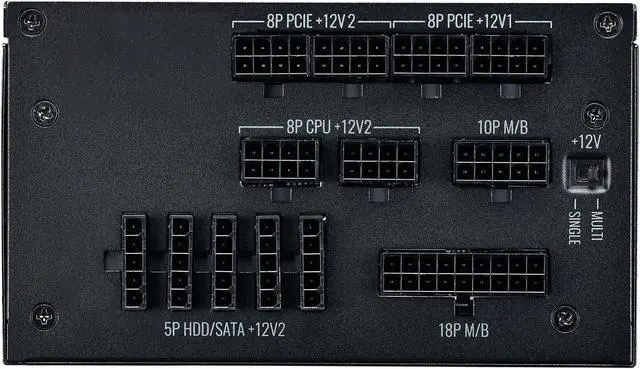

| Connectors | 1 x ATX 24 pin 1 x EPS 4+4 pin 1 x EPS 8 pin 8 x PCI-e 6+2 pin 12 x SATA 15 pin 8 x Peripheral 4 pin 1 x Floppy 4 pin |
| Features | 80 PLUS Platinum Certification: Guarantees a typical efficiency of 92% under normal operating conditions. Thermal Regulation Mode (TRM) : Regulates temps, keeping a constant and quiet fan speed up to 60% of maximum load. Performance Driven Topology : Full-bridge LLC offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency. Single/Multi-Rail Switch : Built in rail switch allows users to change between multi and single rail power output settings. 16 AWG PCI-e Cables : Thicker 16 AWG PCI-e cables for higher currents, improving efficiency and safety. 10 Year Warranty : Standard limited manufacturing warranty from the date of purchase. |
|---|

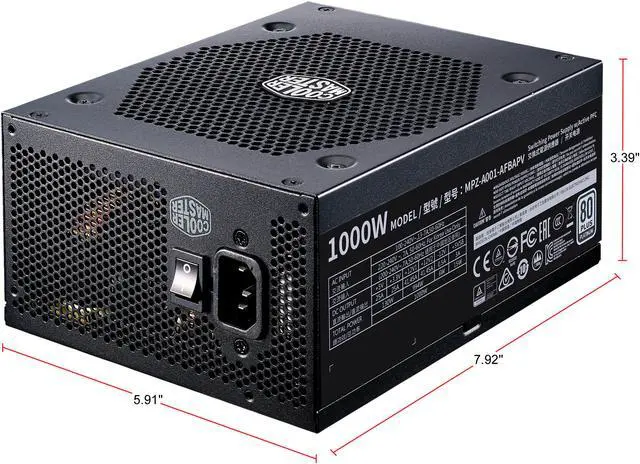

| Dimensions | 3.39" x 5.91" x 7.92" |
|---|---|
| Weight | 7.36 lbs. |
| First Listed on Newegg | September 09, 2022 |
|---|
