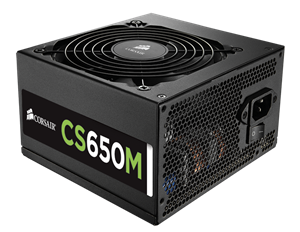

CORSAIR CS-M Series CS650M 650W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply

Name: CORSAIR CS-M Series CS650M 650W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply
Brand: Corsair
SKU: N82E16817139060
Rating: 4 (41 reviews)

(41) Write a Review

ATX12V v2.4 and EPS 2.92
Semi-Modular
80 PLUS GOLD Certified
100 - 240 V 47 - 63 Hz
+3.3V@25A, +5V@25A, +12V@51A, -12V@0.8A, +5Vsb@3A

Overview

Specs

Reviews (41)

Gold-certified efficiency and modular cabling for low energy use and easy installation

80 PLUS Gold-certified efficiency

The super-efficient operation of the CS Series Modular results in lower energy use and lower operating costs. Since it generates less heat, the fan doesn’t need to work as hard, and you’ll enjoy near silent operation.

Modular cabling with clearly marked connectors

The flat, sleeved black cables are modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.

Supports 4th Generation Intel Core processors

The low-power sleep state of the latest Intel processors can cause performance and compatibility issues with some power supplies. CS Series Modular power supplies fully support the new modes, making them an excellent choice for new PCs.

Corsair Engineering and Quality Control

Every Corsair power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the CS Series Modular, because you need confidence and reliability regardless of your build budget.

Documents

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.ca's Replacement Only Return Policy. Read full return policy for details.

Type	ATX12V v2.4 and EPS 2.92
Maximum Power Maximum Power	650 W
Fans Fans	1 x 120mm Sleeve Bearing Fan
PFC PFC	Active
Main Connector Main Connector	20+4Pin
+12V Rails +12V Rails	Single
PCI-Express Connector PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector SATA Power Connector	6
Haswell Support	Ready
Modular Modular	Semi-Modular
Efficiency Efficiency	> 90%
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	10 - 5A
Output	+3.3V@25A, +5V@25A, +12V@51A, -12V@0.8A, +5Vsb@3A
Approvals	FCC, ICES, UL, CUL, TUV, CCC, CE, RCM, CB, EAC, KC, BSMI, ROHS, WEEE
Connectors	1 x ATX Connector 1 x EPS Connector 1 x Floppy Connector 4 x 4-Pin Peripheral Connector 4 x PCIe Connector 6 x SATA Connector

Dimensions	5.90" x 3.39" x 5.51"
Weight	5.00 lbs.
