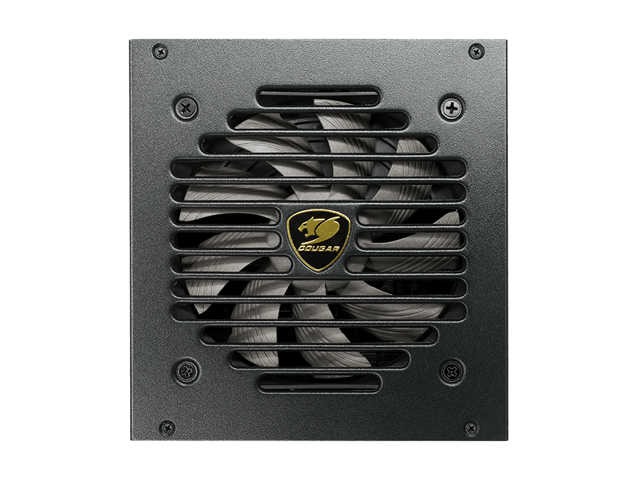

Extreme Cooling System: Using COUGAR’s exclusive 120 mm silent fan,
Durability: It has been designed and thoroughly tested to perform optimally in 40ºC working temperature environments. Second, it includes 105°C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.
Stability: GEX’s LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 3% voltage regulation to deliver a stable operation.
Compact: Flat and long modular cables for better airflow and a tidier case. 100% external cable management
Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP - Maximum safety for your key system components
Dimension: 160 x 150 x 86 (mm)
80 PLUS Gold Certified: Up to 91% efficiency power conversion to cut down your electricity bill.
COUGAR HDB Fan: Hydro Dynamic Bearing Fan
Fully Modular Power Supply Unit: Connect only the cables you need for less clutter and better airflow.
+
+
Overview
Specs
Reviews (51)
Learn more about the COUGAR GEX850
General
Brand
COUGAR
Series
GEX Series
Model
GEX850
Details
Type
ATX12V
Maximum Power
850 W
Fans
1 x 120 mm
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
6 x 6+2-Pin
SATA Power Connector
8
Max PSU Length
160 mm
Modular
Full Modular
Energy-Efficient
80 PLUS GOLD Certified
Protection
UVP (Under Voltage Protection) If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off. OCP (Overcurrent Protection) If the current on a single line is higher than indicated, the PSU automatically switches off. SCP (Short-Circuit Protection) In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components. OVP (Over Voltage Protection) If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off. OTP (Over Temperature Protection) If the temperature gets too high, the PSU automatically switches off. OPP (Over Power Protection) If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
