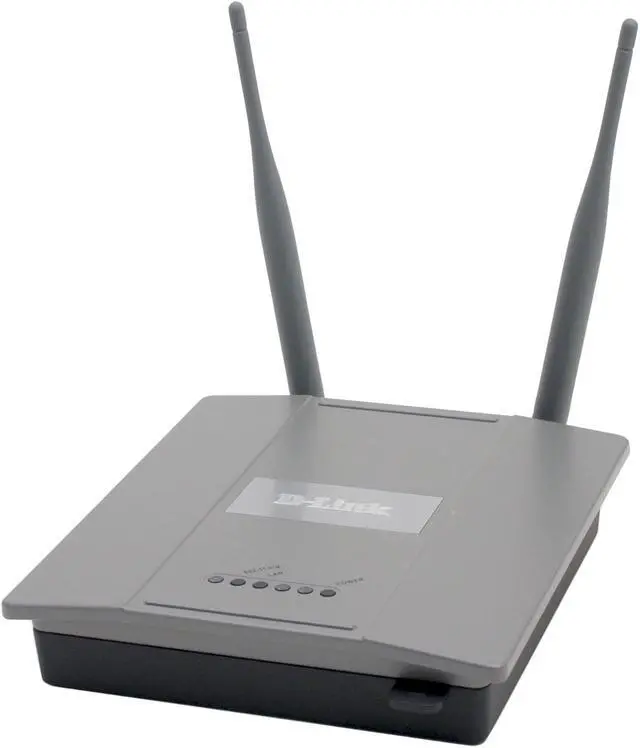

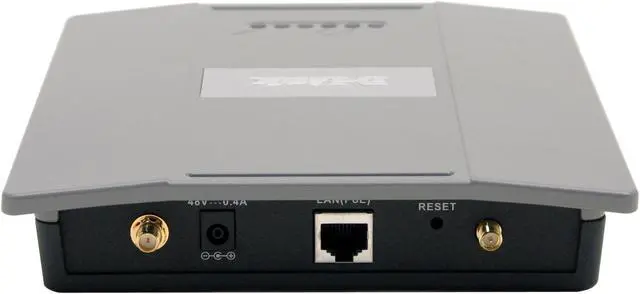

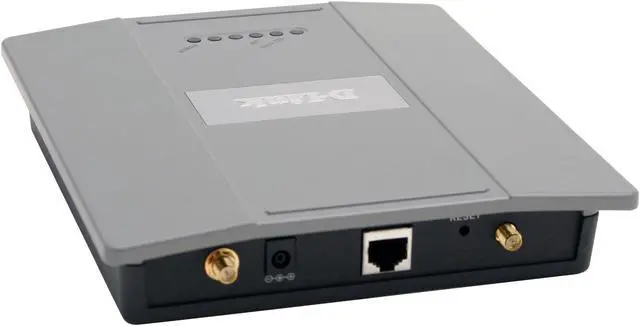

D-Link DWL-3200AP Managed Access Point
Be the first to review this product...
Up to 108Mbps Wireless Data Rates
IEEE 802.11b IEEE 802.11g IEEE 802.3 IEEE 802.3af IEEE 802.3u IEEE 802.3x
Ethernet Port
2.4 GHz - 2.4835 GHz
Overview
Specs
Reviews
Learn more about the D-Link DWL-3200AP
Model
Brand
D-Link
Model
DWL-3200AP
Details
Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.3
IEEE 802.3af
IEEE 802.3u
IEEE 802.3x
Device Management
SNMPv3 Support
D-View Module
Private MIB
Command Line Interface: Telnet, Secure (SSH) Telnet
Wireless Data Rates
Up to 108Mbps
Security
WPA – Personal
WPA – Enterprise
WPA2 – Personal
WPA2 – Enterprise
64/128/152-bit WEP
SSID Broadcast Disable
MAC Address Access Control List
Frequency Band
2.4 GHz - 2.4835 GHz
Antenna
Two 5dBi High-Gain Antenna
Transmitted Power
For 802.11b:
100mW (20dBm)
50mW (17dBm)
30mW (15dBm)
20mW (13dBm)
10mW (10dBm)
5mW (7dBm)
1mW (0dBm)
For 802.11g:
100mW (20dBm)
63mW (18dBm)
30mW (15dBm)
20mW (13dBm)
10mW (10dBm)
5mW (7dBm)
1mW (0dBm)
Receiver Sensitivity
For 802.11b:
1Mbps: -94dBm
2Mbps: -90dBm
5.5Mbps: -89dBm
11Mbps: -85dBm
For 802.11g:
1Mbps: -94dBm
2Mbps: -90dBm
5.5Mbps: -89dBm
6Mbps: -90dBm
9Mbps: -84dBm
11Mbps: -85dBm
12Mbps: -82dBm
18Mbps: -80dBm
24Mbps: -77dBm
36Mbps: -73Bm
48Mbps: -72dBm
54Mbps: -72dBm
Operating Range
802.11g (Full Power with 5dBi Gain Diversity Dualband Dipole Antenna)
Indoors:
98ft (30m) @ 54Mbps
112ft (34m) @ 48Mbps
128ft (39m) @ 36Mbps
154ft (47m) @ 24Mbps
184ft (56m) @ 18Mbps
217ft (66m) @ 12Mbps
259ft (79m) @ 9Mbps
325ft (99m) @ 6Mbps
Outdoors:
367ft (112m) @ 54Mbps
820ft (250m) @ 18Mbps
1640ft (500m) @ 6Mbps
Modulation
For 802.11b:
DSSS :
DBPSK @ 1Mbps
DQPSK @ 2Mbps
CCK @ 5.5 and 11Mbps
For 802.11g:
OFDM:
BPSK @ 6 and 9Mbps
QPSK @ 12 and 18Mbps
16QAM @ 24 and 36Mbps
64QAM @ 48, and 54Mbps
DSSS:
DBPSK @ 1Mbps
DQPSK @ 2Mbps
CCK @ 5.5 and 11Mbps
Interface
Ethernet Port
LEDs
Power, LAN, 802.11b/g
WAN Ports
1 x 10/100M
Power Supply
48VDC +/- 10% for PoE
Environmental
Temperature
0°C - 40°C (32°F - 104°F)
Humidity
10% - 90%, Non-Condensing
Dimensions & Weight
Dimensions
7.3" x 6.5" x 1.3"
Weight
1.33 lbs.
Features
Features
Plenum-rated Metal Chassis
802.3af PoE Support
Also Works as Wireless Distribution System (WDS) with Access Point, and WDS/Bridge (No AP Broadcasting)
Packaging

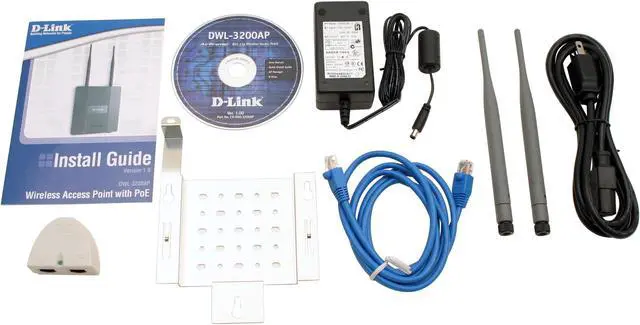

Package Contents
DWL-3200AP
Install Guide
Resource Disk
RJ45 Cable
Power Cord
Power Adapter
2 x External Antenna
Rack mount kit
Other Accessories
Additional Information
First Listed on Newegg
April 15, 2010
