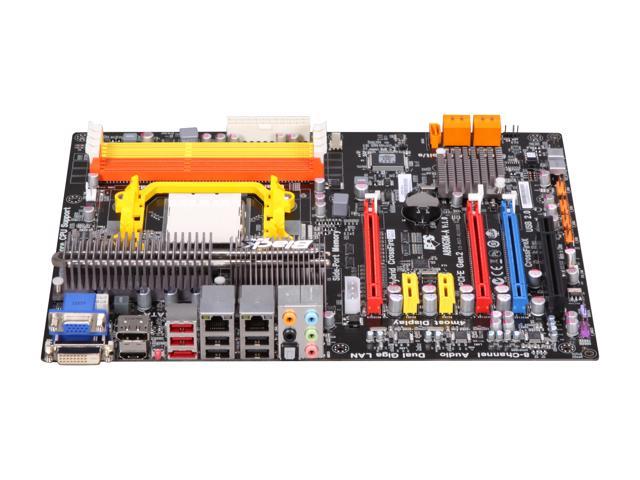

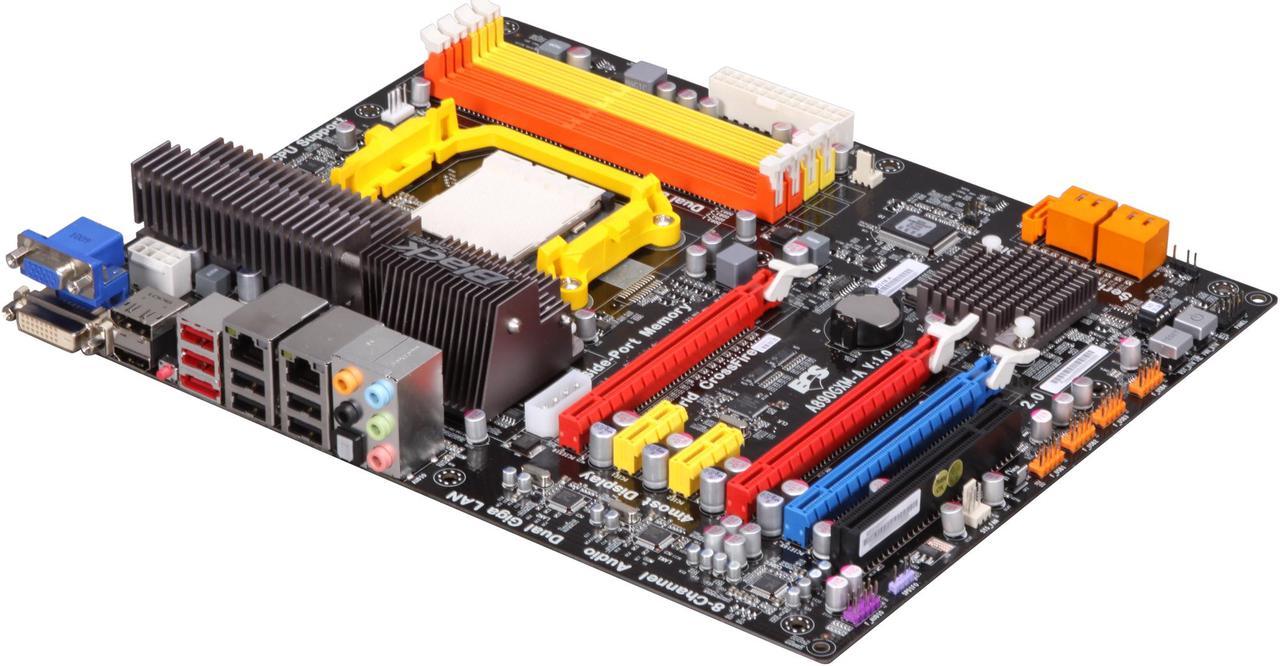

ECS Black Series A890GXM-A AM3 AMD 890GX HDMI SATA 6Gb/s ATX AMD Motherboard

(9) Write a Review
  • AM3
  • AMD 890GX
  • 4×240pin DDR3 1800(OC)/1600(OC)/1333/1066
Specs
Reviews (9)

Learn more about the ECS (EliteGroup) A890GXM-A

Model
Brand ECS
Model A890GXM-A
Supported CPU
CPU Socket Type CPU Socket TypeAM3
CPU Type Phenom II / Athlon II / Sempron 100 Series
Supports CPU up to 140W TDP
FSB 2600 MHz
Chipsets
Chipset ChipsetAMD 890GX
South Bridge AMD SB850
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1800(OC)/1600(OC)/1333/1066
Maximum Memory Supported 16GB
Channel Supported Channel SupportedDual Channel
Expansion Slots
PCI Express 2.0 x16 3 x PCI Express Gen 2.0 x16 slots
Note: The third PCIEX16 only support bandwidth x4
PCI Express x1 2 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
SATA 6Gb/s SATA 6Gb/s5 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset Onboard Video ChipsetATI Radeon HD 4290
Onboard Audio
Audio Chipset Audio ChipsetRealtek ALC892
Audio Channels Audio Channels8 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Second LAN Chipset Realtek 8111DL
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DisplayPort / 1 x DVI / 1 x HDMI / 5 x Audio Jacks / 6 x USB 2.0/1.1
Video Ports D-Sub + DVI + Display Port
HDMI HDMI1 x HDMI
USB 1.1/2.0 6 x USB 2.0
eSATA 1 x eSATA 3Gb/s
S/PDIF Out S/PDIF Out1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0 headers support additional 8 USB ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Additional Information
Date First Available April 06, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
