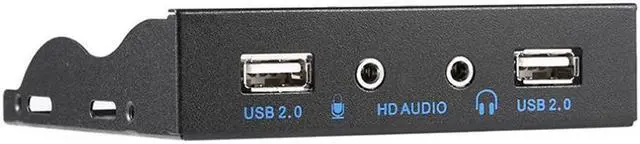

3.5 -inch Front Bay to 2-Port USB 2.0 Panel Hub and 1 HD Audio Port/1 Microphone Port
turns any available 3.5 -inch computer case front bay into a 2 Port USB 2.0 hub.
Using only a single USB connection, this front panel hub adds two easily accessible USB ports to the front of your computer case through a 3.5 -inch bay, or through a 5.25 -inch bay using the optional Front Bay Bracket Adapter accessory.
Each of the added ports is compliant with the USB 2.0 standard which supports up to 480Mbps of bandwidth and up to 500mA of power.
HD Audio & Microphone is Compatible with AC 97 or HD Audio standards with autosensing

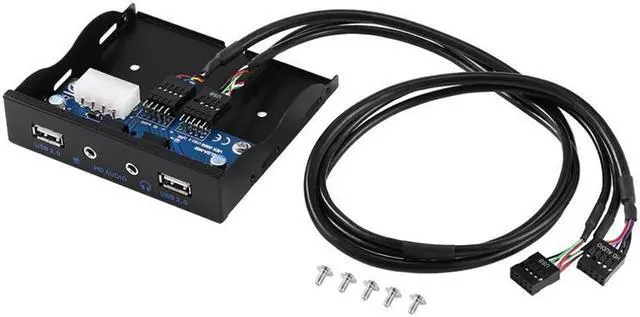

Installation is quick and easy, and the unit is plug and play.

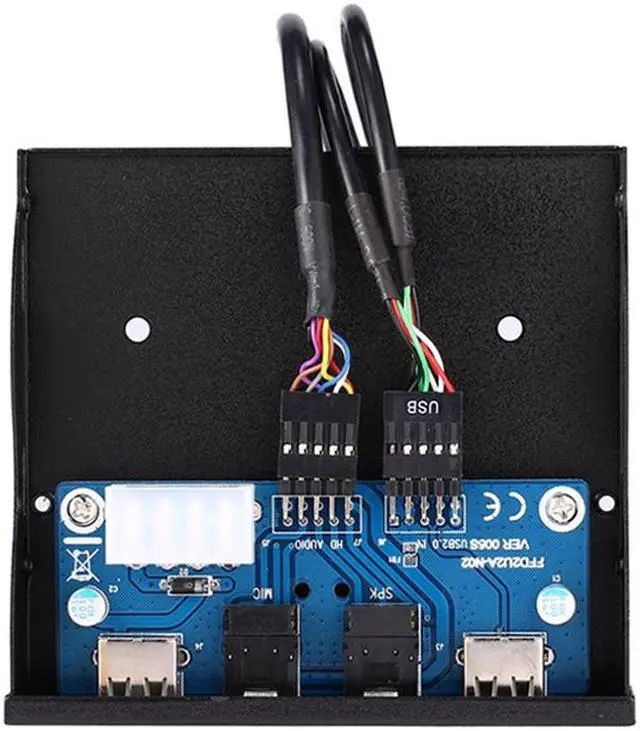

Simply fit the bay into the space with the screws provided, plug the bay into the USB 2.0 9/10 pin connector on the motherboard, and you're all set.
- 3.5" Floppy Front Panel
- Does not support 5.25" drive installation

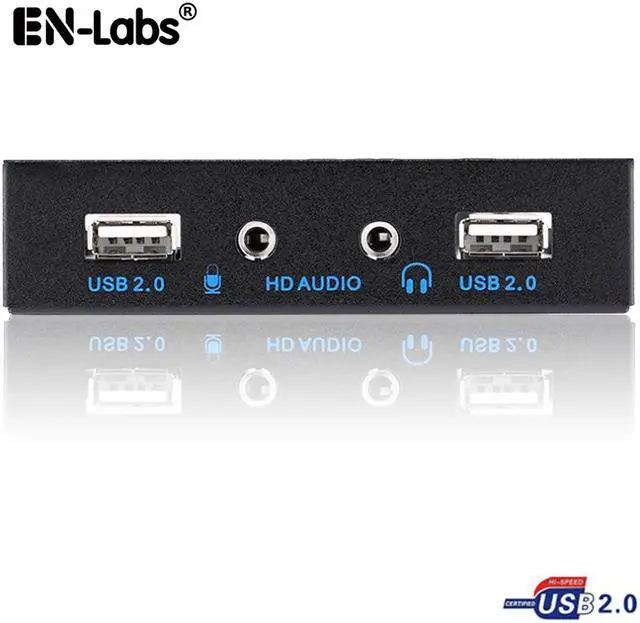

- 2 Ports USB 2.0 output
- Data transfer speed up to 480Mbps
- 1x HD Audio output ,Support AC 97 HD Audio
- 1x Microphone input
- Extra Molex Power Interface for high-power USB devices connection

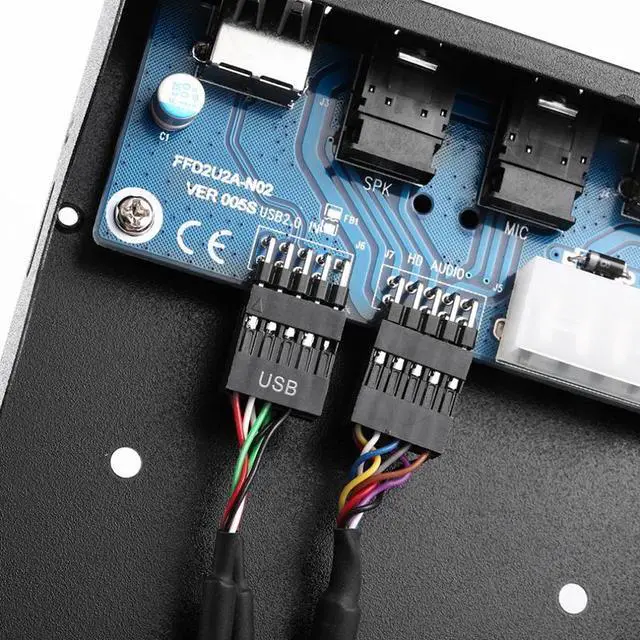

- One USB 9/10pin motherboard header is needed for USB ports
- One 9/10Pin HD audio header on motherboard is needed for stereo audio & Mic Ports
| Type | 3.5" Floppy Front Panel |
|---|---|
| Output -A | 2 x USB 2.0 Female |
| Output-B | 3.5mm Stereo Audio |
| Input | 3.5mm Microphone |
| Data Transfer | 480Mbps for USB Ports |
| Installation | 3.5" Open Bay Space |
| Cable Length | 2 Feet |
| Motherboard Connector | 9/10Pin USB Motherboard and HD audio header |
| OS Requirement | Compatible with Windows XP/Vista/7/8/ 8.1,MAC OS |
