REVOLUTION D.F. X
FULLY MODULAR ATX POWER SUPPLIES
INTEL ATX 3.0 & PCIe 5.0 READY!
The REVOLUTION D.F. X series meets the Intel ATX 3.0 specification with a native PCIe 5.0 600W 12VHPWR cable providing stable and reliable power to your next generation graphics cards including NVIDIA® GeForce RTX™ 40 Series.
THE MOST ADVANCED PERFORMANCE
The REVOLUTION D.F. X meets all the Intel ATX 3.0 standard including up to 200% power excursion which ensures consistent and reliable power delivery to your graphics cards during intensive gaming or overclocking sessions, and 70 % efficiency in 2% loading as well as less than 200ms power-on time.
200%
Power Excursion
< 200ms
Power-on Time

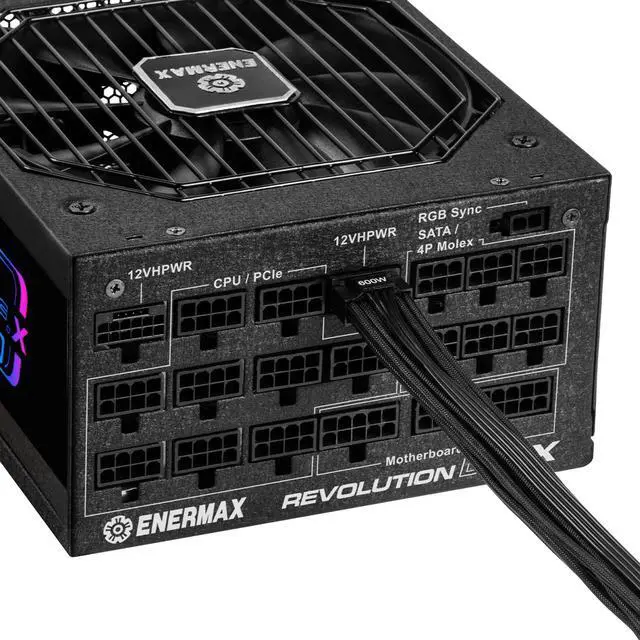

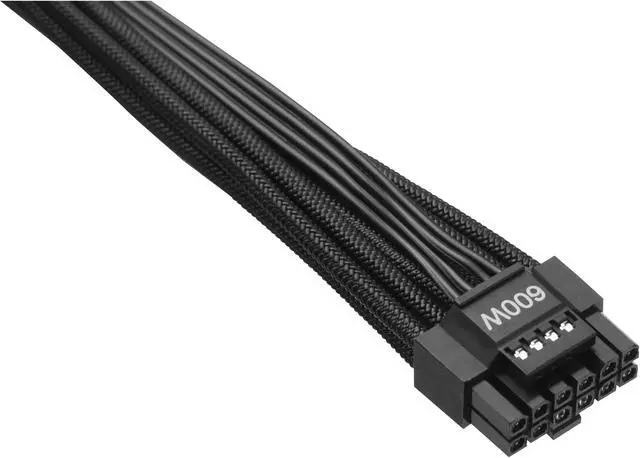

POWER UP WITH 600W 12VHPWR CABLE
With the arrival of PCIe 5.0, the native 600mm 12VHPWR cable can deliver up to 600W of power from the 12VHPWR connector to the latest graphics cards and avoid overloading with single rail +12V design.
EXTRA CABLE FOR MULTIPLE USAGE
The REVOLUTION D.F. X helps you get ready for the future with another 600mm adaptor cable with dual 8-pin PCIe connectors for PSU side and 12VHPWR connector for GPU side, it allows you to build with flexibility.
Dual 8 pin to 12+4 pin (12VHPWER) cable
* Please be aware of the total wattage requirement when you connect more than 1 GPU.
FLEXIBLE SLEEVED CABLES
REVOLUTION D.F. X 1350/1650W equipped with flexible triple-layer mesh sleeved cables to bring a better cable routing with its soft and bendable points when installing.
The meticulous sleeved cables provide better durability and stylish aesthetics that allowing you to build your PC with professional look.

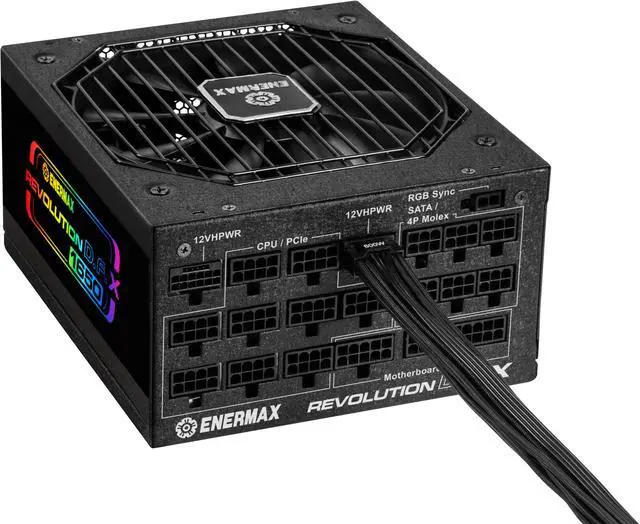

HOW TO PROPERLY PLUG THE 12+4 PIN 12VHPWR
CABLE TO PREVENT DAMAGE
Use your fingers to hold both sides of the cable and insert the cable into the port straight in line with the port. Make sure to insert the cable firmly and evenly straight in without any gaps or bending under 40mm from the plug downwards.

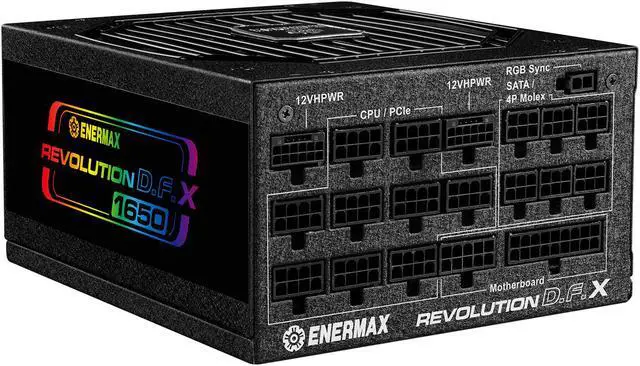

LIGHT IT UP WITH ARGB SIDE PANEL
To stand out from all the ATX 3.0 power supplies, the REVOLUTION D.F. X comes with a ARGB side panel with built-in 14 lighting modes. It supports synchronization with supported motherboard’s software.

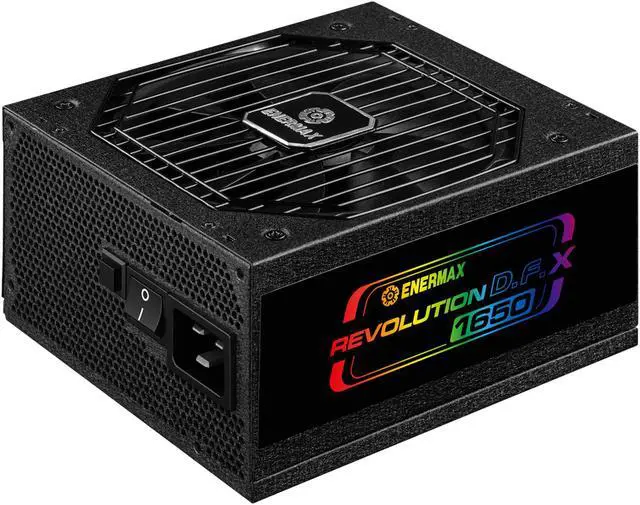

RGB ON/OFF WITH RGB CONTROL BUTTON
The RGB control button next to the power switch allows you to turn it off at night with one push. You can also switch directly between the built-in 14 lighting modes via the RGB control button.

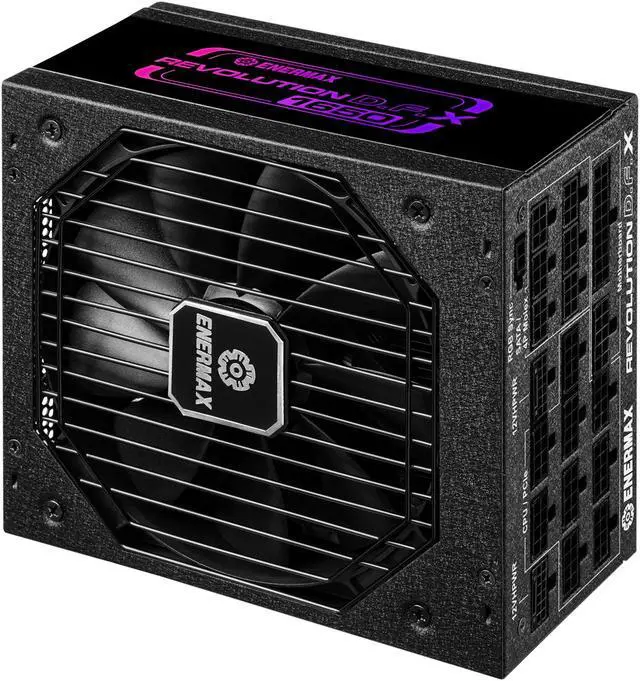

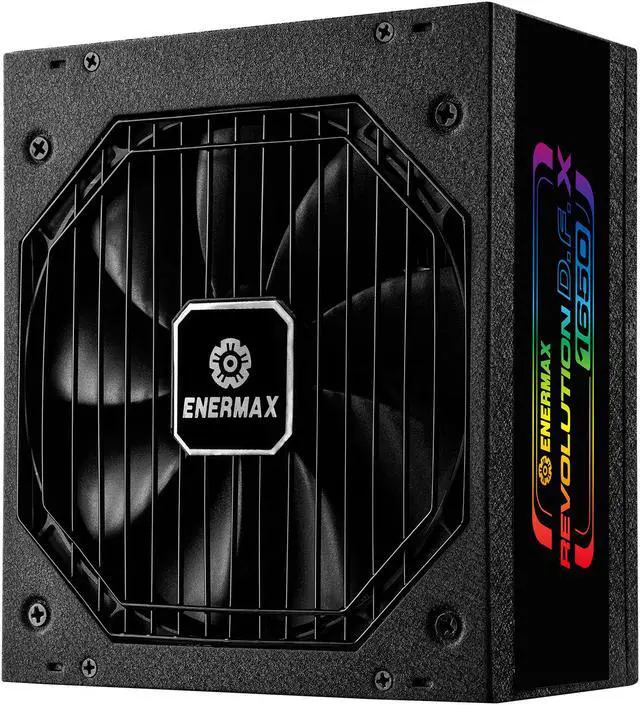

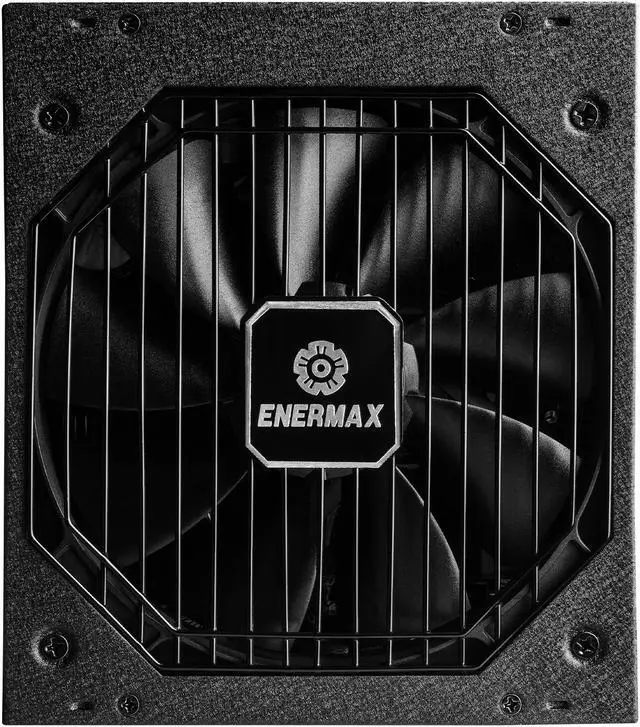

A FAN WITH VERSATILITY
DUST-FREE ROTATION
With ENERMAX’s patented Dust-free Rotation technology, which is an innovative self-cleaning solution that enables the fan to blow away dust upon powering on, it ensures the REVOLUTION D.F. X remains clean, prevents any future disruption, and ensures a stable power delivery for years.
HIGH PRESSURE BLADE DESIGN
With the high-pressure blade design, the fan blades centralize dispersed airflow to the center of the fan and create extremely high air pressure and high airflow while maintaining outstanding quietness.
SEMI-FANLESS WITH 0 dB(A)
The semi-fanless technology allows the fan to be completely off until the load exceeds 20% or over-temperature to create a 0 dB(A) environment and ensure a quiet operation during minimum load.
6-POLE MOTOR
The REVOLUTION D.F. X has been optimized with a 6-pole motor with 3-phase fan to provide minimal vibration, low power consumption, and an exceptionally smooth operation.
DUAL-BALL BEARING
The REVOLUTION D.F. X is equipped with a high-performance fan featuring industrial-grade dual-ball bearings, which effectively reduces unnecessary friction to optimize its performance. By incorporating these high-quality dual-ball bearings, the REVOLUTION D.F. X achieves enhanced stability and exceptional quality. This design not only extends the lifespan of the unit but also maximizes the performance of your system for your most demanding needs.
OUTSTANDING PERFORMANCE
SUPERIOR EFFICIENCY
As the efficiency becomes more and more crucial for the environment, the REVOLUTION D.F. X is 80 PLUS® Gold certified with efficiency over 90% on standard loading, which reduce unnecessary power consumption during operation and effectively save energy.
INDUSTRIAL-GRADE 100% JP CAPACITORS
Offering the best of the best to our customer, the REVOLUTION D.F. X is using the industrial-grade 100% Japanese capacitors to ensure power output is extremely stable and reliable for years.
BETTER REGULATION
The REVOLUTION D.F. X applied advanced LLC and Synchronous Rectifier (SR) design which result in better regulation, low noise and low output ripple and improve efficiency and thermal management.
HEAVY-DUTY PROTECTION
Over Current Protection
Over Voltage Protection
Under Voltage Protection
Over Power Protection
Over Temperature Protection
Short Circuit Protection
COMPACT 170MM FOR FRIENDLY INSTALLATION
REVOLUTION D.F. X 1350W and 1650W are among the smallest 1300W+ power supplies with a compact 170mm-depth size, providing more flexibility and better airflow for high-end workstation systems.
ENERMAX UNIQUE AIR GUARD FOR BETTER AIRFLOW
The ENERMAX air guard will benefit the cooling performance while decreasing the fan noise with the wider space of air outlet.

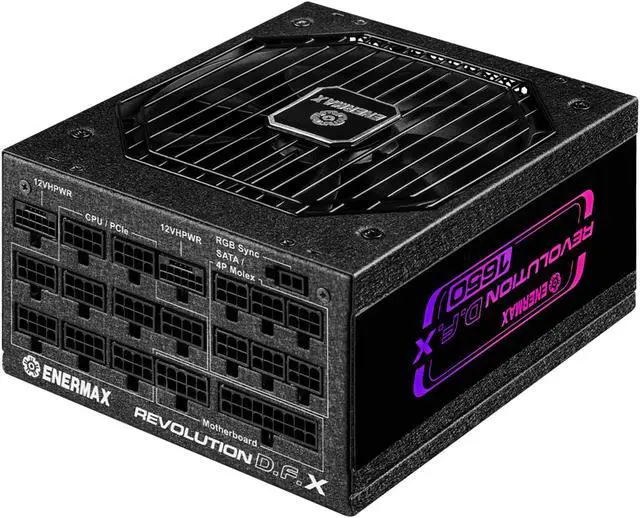

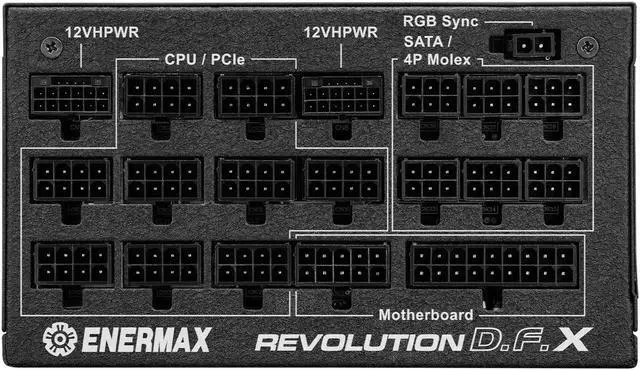

CABLE AND POWER AS YOU NEED
Only connect the cable you need with full modular design.
| REVOLUTION D.F. X | ||
| Model name | ERT1350EWT | ERT1650EWT |
| Wattage | 1350W | 1650W |
Motherboard 24 (20+4)pin |
1 [ 1 x 65cm ] |
1 [ 1 x 65cm ] |
CPU 4+4 Pin |
2 [ 1 x 60cm ] [ 1 x 70cm ] |
2 [ 1 x 60cm ] [ 1 x 70cm ] |
12VHPWR 12+4 pin |
1 [ 1 x 60cm ] |
2 [ 1 x 60cm ] |
PCIe 6+2 pin |
7 [3 x 65/15cm] [1 x 55cm] |
7 [3 x 65/15cm] [1 x 55cm] |
2xPCIe 8pin-12VHPWR Splitter Cable |
1 [ 1 x 60cm ] |
1 [ 1 x 60cm ] |
SATA |
12 [ 3 x 45/15/15/15cm ] |
12 [ 3 x 45/15/15/15cm ] |
4P Molex |
6 [ 2 x 50/15/15cm ] |
6 [ 2 x 50/15/15cm ] |
|
2 x SATA + 4p Molex |
- | 2 + 1 [1 x 45/15/15cm] |
FDD |
1 [ 1 x 10cm ] |
1 [ 1 x 10cm ] |
