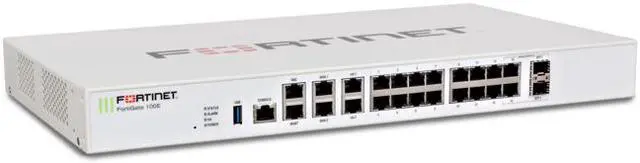

Fortinet FortiGate 100E - security appliance - with 1 year 360 Protection Bundle FG-100E-BDL-950-12

Specifications
General
Device Type Security appliance
Bundled Services 1 year 360 Protection Bundle
Height (Rack Units) 1U
Width 17 in
Depth 10 in
Height 1.7 in
Weight 7.28 lbs
Processor / Memory / Storage
Processors Installed Fortinet FortiASIC SOC3
Networking
Form Factor External
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance Firewall throughput (1518-byte UDP): 7.4 Gbps ¦ Firewall throughput (512-byte UDP): 7.4 Gbps ¦ Firewall throughput (64-byte UDP): 4.4 Gbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 6.6 Mpps ¦ VPN throughput (512-bit IPSec): 4 Gbps ¦ VPN throughput (SSL): 250 Mbps ¦ SSL inspection throughput: 190 Mbps ¦ Application control (AVC) throughput: 1 Gbps ¦ CAPWAP throughput (1444 byte, UDP): 1.5 Gbps ¦ IPS throughput (optimal traffic mix): 1.9 Gbps ¦ IPS throughput (enterprise traffic mix): 500 Mbps ¦ NGFW throughput: 360 Mbps ¦ Threat protection throughput: 250 Mbps
Capacity Concurrent TCP sessions: 2000000 ¦ New TCP sessions per second: 30000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 10000 ¦ Concurrent SSL VPN users: 300 ¦ Virtual domains: 10 ¦ Maximum number of switches: 24 ¦ Number of FortiAP devices: 64 ¦ Number of FortiToken devices: 1000 ¦ Number of registered FortiClients: 600
Status Indicators Power, status, alarm, HA
Features Firewall protection, switching, routing, VPN support, content filtering, manageable, High Availability, Intrusion Prevention System (IPS), anti-malware protection, anti-virus protection
Encryption Algorithm SSL
Expansion / Connectivity
Interfaces 2 x 1000Base-T - RJ-45 (WAN) ¦ 16 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x USB - Type A ¦ 2 x 1000Base-X - SFP (mini-GBIC) ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (DMZ) ¦ 1 x console - RJ-45
Miscellaneous
Compliant Standards UL, VCCI, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA Network IPS, IPv6 Ready, RCM, ICSA SSL-VPN
Power
Power Device Internal power supply
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 23 Watt
