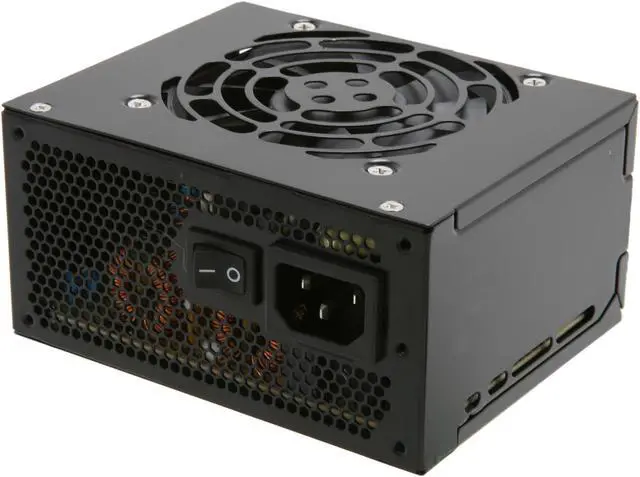

FSP Group FSP450-60GHS(85)-R1 450W Micro ATX12V / SFX12V 80 PLUS BRONZE Certified Active PFC Power Supply with Intel Haswell Ready

Specs

Reviews

Learn more about the FSP FSP450-60GHS(85)-R1

General
Brand	FSP Group
Model	FSP450-60GHS(85)-R1

Details
Type	SFX12V
Maximum Power	450 W

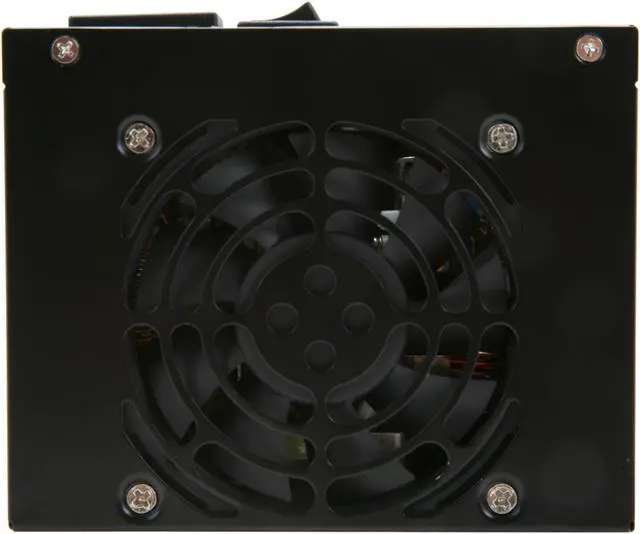

Fans	1 x 80mm fan
PFC	Active
Main Connector	24Pin
+12V Rails	2
PCI-Express Connector	1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector	3
SLI	No
Haswell Support	Yes
CrossFire	No
Efficiency	> 80%
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Input Voltage	115 / 230 V
Input Frequency Range	47 - 63 Hz
Input Current	< 5.5 A @ 115 Vrms, 60 Hz. < 3.0 A @ 230 Vrms, 50 Hz.

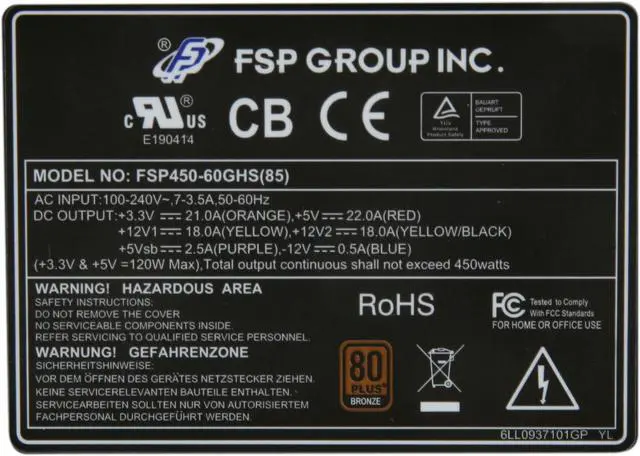

Output	+3.3V@21A, +5V@22A, +12V1@18A, +12V2@18A, -12V@0.5A, +5VSB@2.5A
MTBF	>100,000 Hours
Approvals	UL, cUL, TUV, CB, CE, FCC

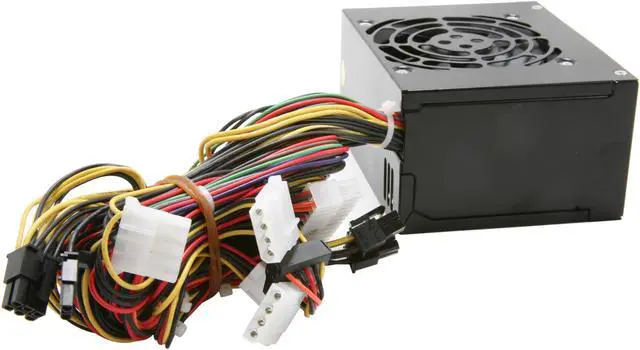

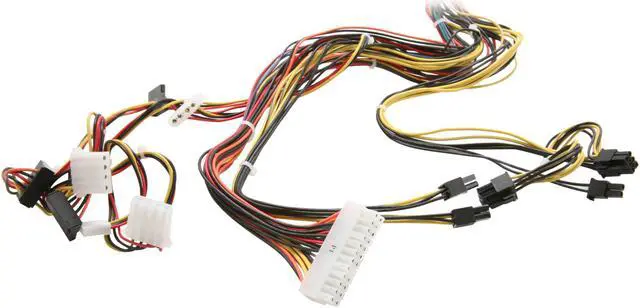

Connectors	1 x Main connector (24Pin) 1 x P4 \| EPS 4+4-Pin 3 x Peripheral 3 x SATA 1 x Floppy 2 x PCI-E

Features
Features	Supports AMD/Intel CPU System Fit Standard ATX Case Includes SFX To PS2 Bracket For Easy Fitting Into Std. ATX Case Thermal Control System Linked To Fan Energy Saver \| 1-Watt Standby Mode

Dimension & Weight
Dimensions	4.92" X 3.94" X 2.50"
Weight	2.31 lbs
