    GIGABYTE A520M H AM4 AMD A520 SATA 6Gb/s Micro ATX AMD Motherboard

    Be the first to review this product...
    • AMD A520
    • Supports AMD Ryzen 5000 Series / 3rd Gen / 3rd Gen Ryzen with Radeon
    • AMD Ryzen 5000 series processors:
    • Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133
    • 3rd Gen AMD Ryzen / 3rd Gen AMD Ryzen with Radeon Graphics Processors:
    • Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133
    +
    +
    Specs
    Reviews

    Learn more about the GIGABYTE A520M H

    Model
    Brand GIGABYTE
    Model A520M H
    Supported CPU
    CPU Socket Type AM4
    CPU Type Supports AMD Ryzen 5000 Series / 3rd Gen / 3rd Gen Ryzen with Radeon
    Chipsets
    Chipset AMD A520
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard AMD Ryzen 5000 series processors:
    Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133

    3rd Gen AMD Ryzen / 3rd Gen AMD Ryzen with Radeon Graphics Processors:
    Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    ECC Supported Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Memory Feature Support for Extreme Memory Profile (XMP) memory modules
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    PCI Express x1 2 x PCI Express x1 slots, supporting PCIe 3.0
    Storage Devices
    SATA 6Gb/s 4 x SATA 6Gb/s
    M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
    SATA RAID 0/1/10
    Onboard Audio
    Audio Chipset Realtek Audio CODEC
    Audio Channels 7.1 Channels
    Onboard LAN
    Max LAN Speed 1Gbps

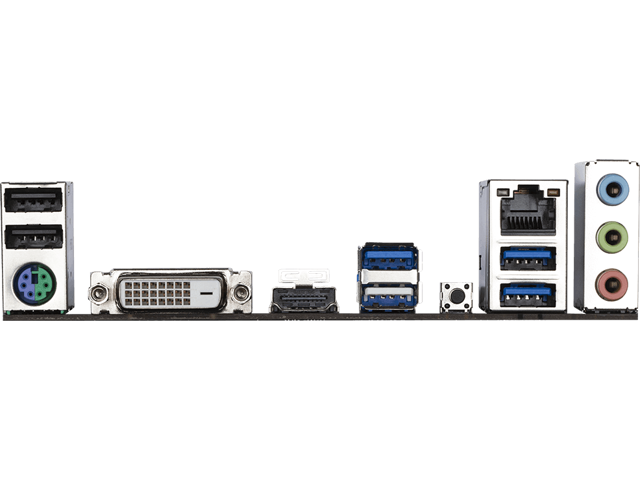

    Rear Panel Ports
    Back I/O Ports 1 x PS/2 keyboard/mouse port
    1 x DVI-D port
    1 x HDMI port
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x Q-Flash Plus button
    1 x RJ-45 port
    3 x audio jacks
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    Other Connectors 1 x CPU fan header
    2 x System fan headers
    1 x Addressable LED strip header
    1 x RGB LED strip header
    1 x Front panel header
    1 x Front panel audio header
    1 x Speaker header
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x Serial port header
    1 x Chassis intrusion header
    1 x Clear CMOS jumper
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 8.1"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    Features
    Features Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Additional Information
    Date First Available June 18, 2022
