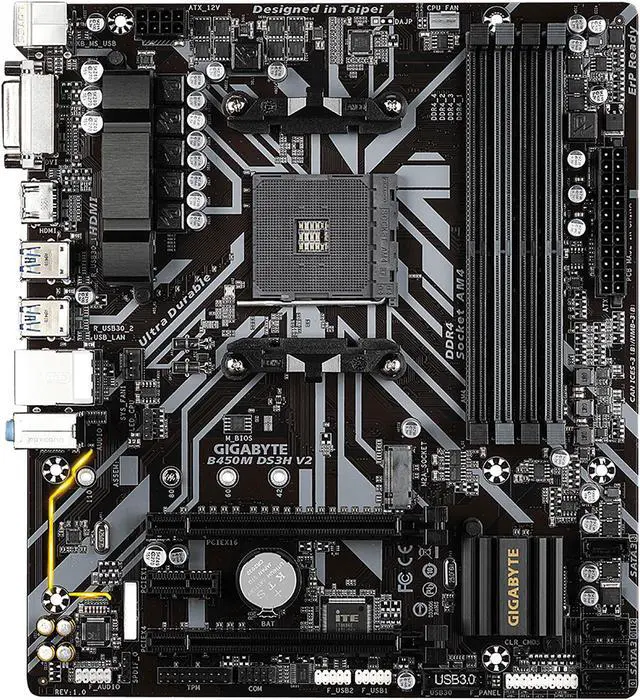

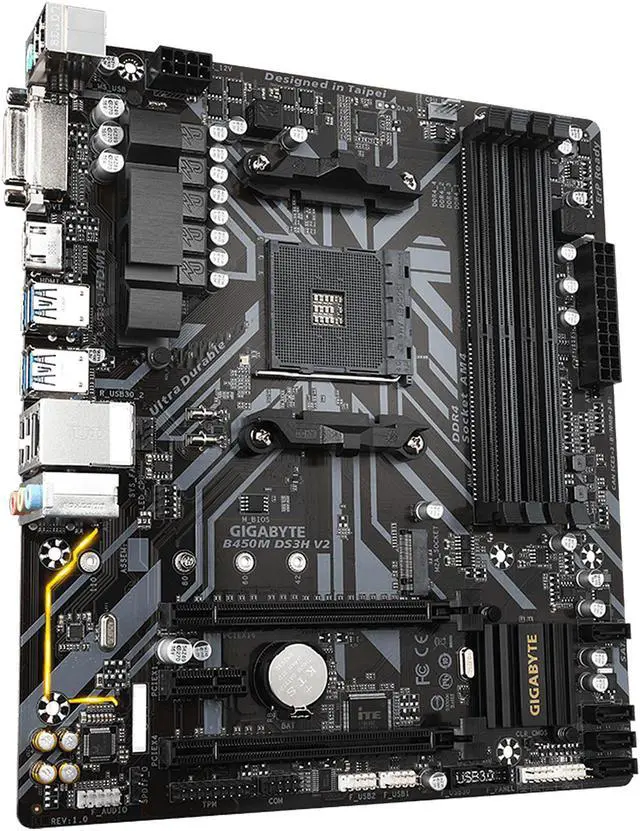

GIGABYTE B450M DS3H V2 AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard
REFURBISHED Product Type
- AMD B450
- Supports AMD Ryzen 5000 series Processors
- Supports 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen Processors
- Supports 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics Processors
- Supports Athlon with Radeon Vega Graphics Processors
- DDR4 3600(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133
Specs
Reviews
Learn more about the GIGABYTE B450M DS3H V2

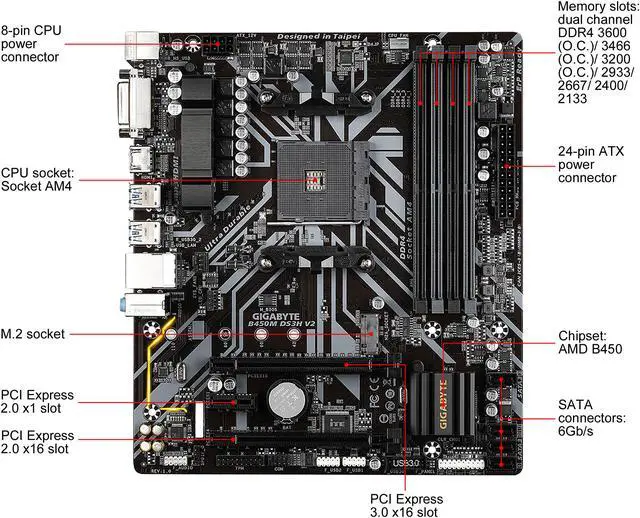

| Brand | GIGABYTE |
|---|---|
| Model | B450M DS3H V2 |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD Ryzen 5000 series Processors Supports 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen Processors Supports 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics Processors Supports Athlon with Radeon Vega Graphics Processors |
| Chipset | AMD B450 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3600(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|---|---|
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16* * Running at x4. |
| PCI Express x1 | 1 x PCI Express 2.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon-series / 7th Gen. A-series or Athlon X4 APU. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels* * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
| LAN Chipset | Realtek GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |

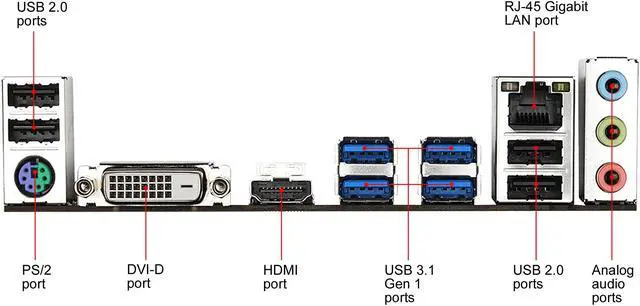

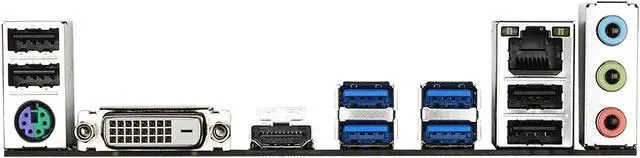

| Back I/O Ports | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|---|
| Onboard USB | 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x Trusted Platform Module (TPM) header (2x10-pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 8.5" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit |
|---|
| Date First Available | July 06, 2021 |
|---|
