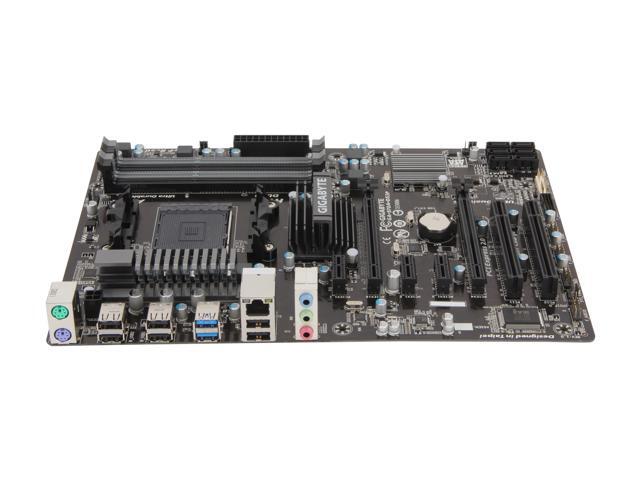

GIGABYTE GA-970A-DS3P AM3+ AMD 970 SATA 6Gb/s USB 3.0 ATX AMD Motherboard

Be the first to review this product...
  • AMD 970
  • FX / Phenom II / Athlon II / Sempron 100 Series
  • DDR3 2000(O.C.)/1866/1600/1333/1066
Specs
Reviews

Learn more about the GIGABYTE GA-970A-DS3P

Model
Brand GIGABYTE
Model GA-970A-DS3P
Supported CPU
CPU Socket Type CPU Socket TypeAM3+
CPU Type FX / Phenom II / Athlon II / Sempron 100 Series
FSB 2400 MHz Hyper Transport (4800 MT/s)
Chipsets
Chipset ChipsetAMD 970
South Bridge AMD SB950
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2000(O.C.)/1866/1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Channel SupportedDual Channel
Expansion Slots
PCI Express 2.0 x16 2(@x16,@x4)
PCI Express x1 3 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA 6Gb/s SATA 6Gb/s6 x SATA 6Gb/s
SATA RAID 0/1/5/10/JBOD
Onboard Audio
Audio Chipset Audio ChipsetRealtek ALC887
Audio Channels Audio Channels7.1 Channels
Onboard LAN
LAN Chipset Realtek GbE LAN chip
Max LAN Speed 1Gbps
Rear Panel Ports
PS/2 PS/22
USB 3.0 USB 3.02 x USB 3.0
USB 1.1/2.0 6 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 6 x USB 2.0
Other Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Clear CMOS jumper
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 8.5"
Power Pin 24 Pin
Features
Features GIGABYTE UEFI DualBIOS technology

GIGABYTE Ultra Durable 4 Classic technology

Supports AMD AM3+ FX/ AM3 Phenom II, Athlon II series processors

2 PCI-E 2.0 x16 interfaces with AMD CrossFire support

6 native SATA3 ports with up to 6Gbps link speed and RAID 0,1,5,10 support

4 USB 3.0 ports with transfer rates of up to 5Gbps

GIGABYTE On/Off Charge technology
Additional Information
Date First Available March 03, 2017
