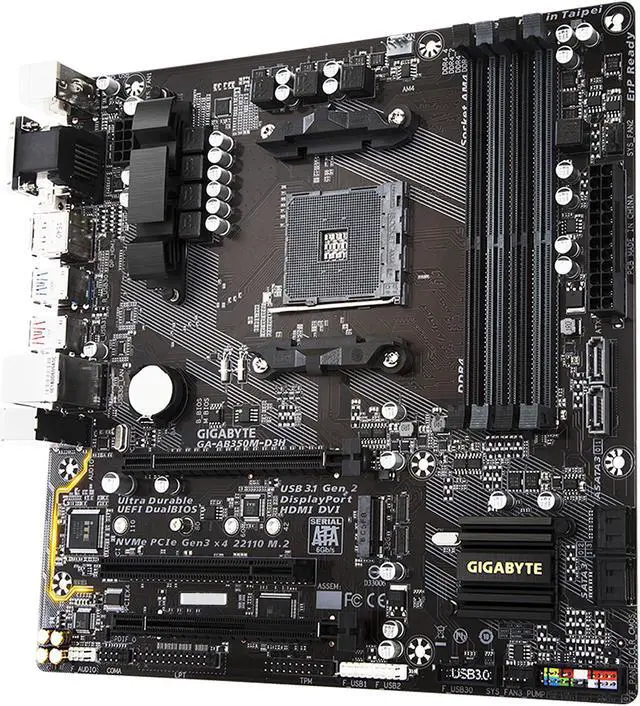

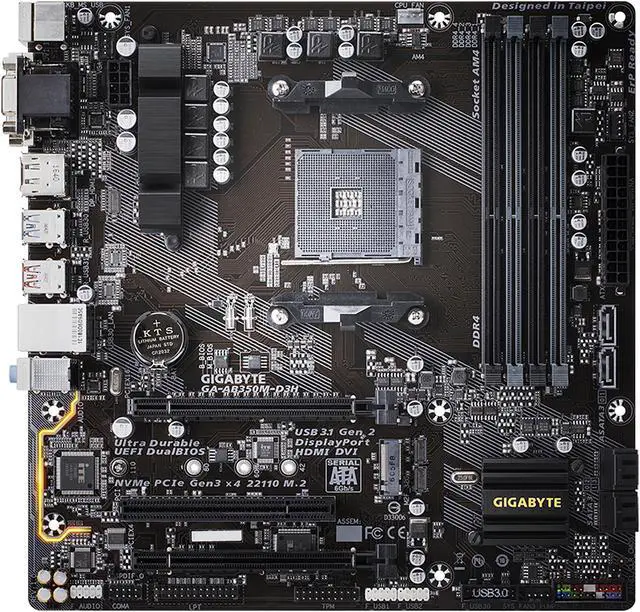

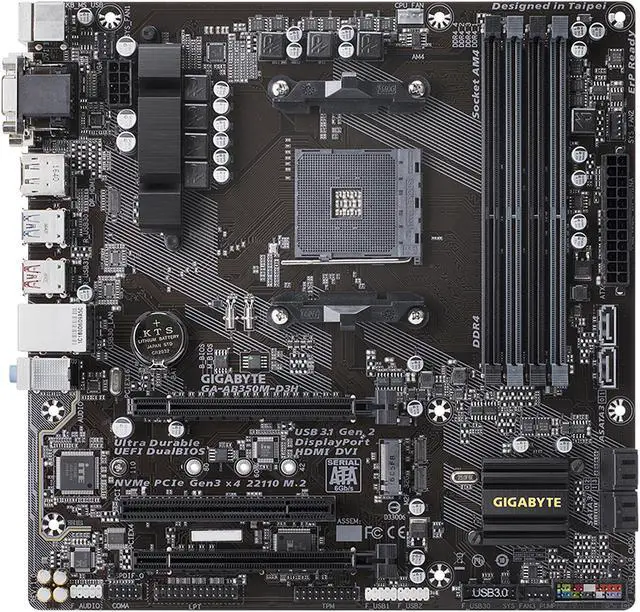

GIGABYTE GA-AB350M-D3H AMD AM4 SATA USB 3.1 Micro-ATX Motherboard (White Box)

Be the first to review this product...
  • Supports AMD 3rd Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/1st Gen Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Fast 2 USB 3.1 Gen 2 with USB Type-A
  • 2-Way CrossFire Multi-Graphics Support
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 6 Temperature Sensors and 4 Hybrid Fan Headers
  • GIGABYTE UEFI DualBIOS
  • APP Center Including EasyTune and Cloud Station Utilities
Specs
Reviews

Learn more about the GIGABYTE GA-AB350M-D3H

Model
Brand GIGABYTE
Model GA-AB350M-D3H

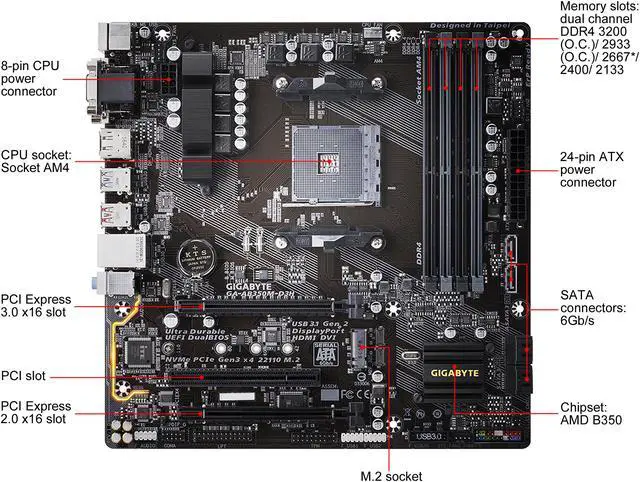

Supported CPU
CPU Socket Type CPU Socket TypeAM4
CPU Type AM4 Socket: Supports AMD 3rd Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/1st Gen Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
Chipsets
Chipset ChipsetAMD B350
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard Support for DDR4 3200(O.C.)/ 2933(O.C.)/ 2667*/ 2400/ 2133 MHz memory modules
* Support for higher than DDR4 2667 MHz may vary by CPU.
Maximum Memory Supported 64GB
Channel Supported Channel SupportedDual Channel
Expansion Slots
PCI Express 3.0 x16 PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express 2.0 x16 1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 2.0 standard.)
PCI Slots 1 x PCI Slot
Storage Devices
SATA 6Gb/s SATA 6Gb/s6 x SATA 6Gb/s
M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
* Actual support may vary by CPU.
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Onboard Video ChipsetIntegrated Graphics Processor:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
* DisplayPort function is limited if using an AMD Athlon 200-series APU.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Maximum shared memory of 2GB

* Actual support may vary by CPU.
Onboard Audio
Audio Chipset Audio ChipsetRealtek ALC887
Audio Channels Audio Channels2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Onboard LAN
LAN Chipset Realtek GbE LAN chip
Max LAN Speed 1Gbps

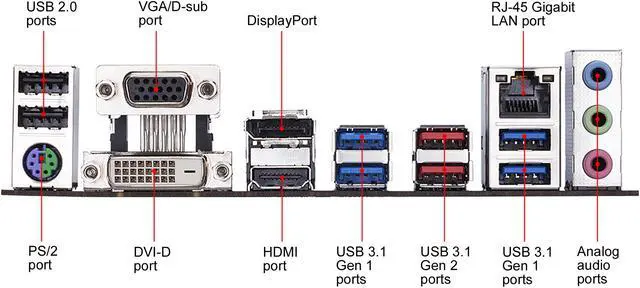

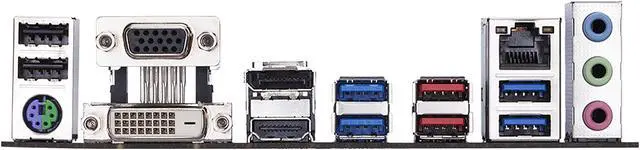

Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x DisplayPort
4 x USB 3.1 Gen 1 ports
2 x USB 3.1 Gen 2 Type-A ports (red)
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX

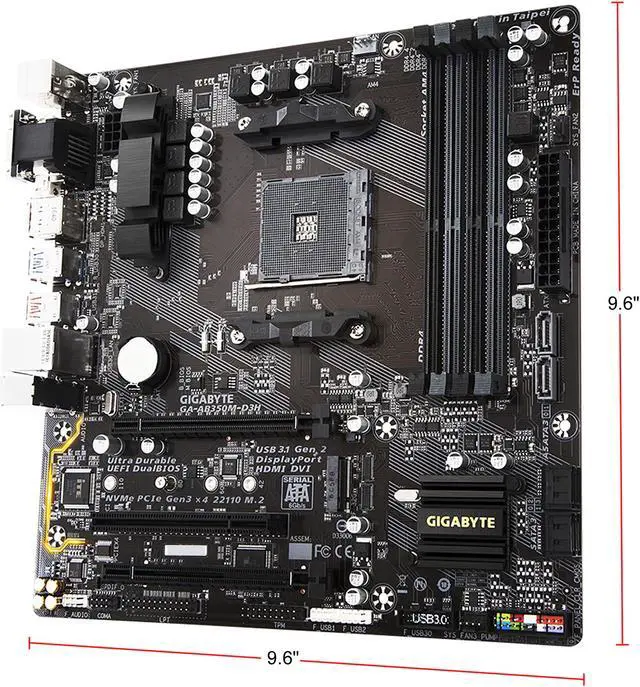

Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Multi-Graphics Technology:
Support for 2-Way AMD CrossFire Technology
* Actual support may vary by CPU.

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
AutoGreen
Ambient LED
BIOS Setup
Cloud Station
Color Temperature
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Additional Information
Date First Available May 29, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
