GIGABYTE Radeon RX 560 2GB GDDR5 CrossFireX Support ATX Graphics Card GV-RX560GAMING OC-2GD

REFURBISHED Product Type
(4) Write a Review
  • 2GB 128-Bit GDDR5
  • Core Clock OC mode: 1300 MHz
  • Gaming mode: 1287 MHz

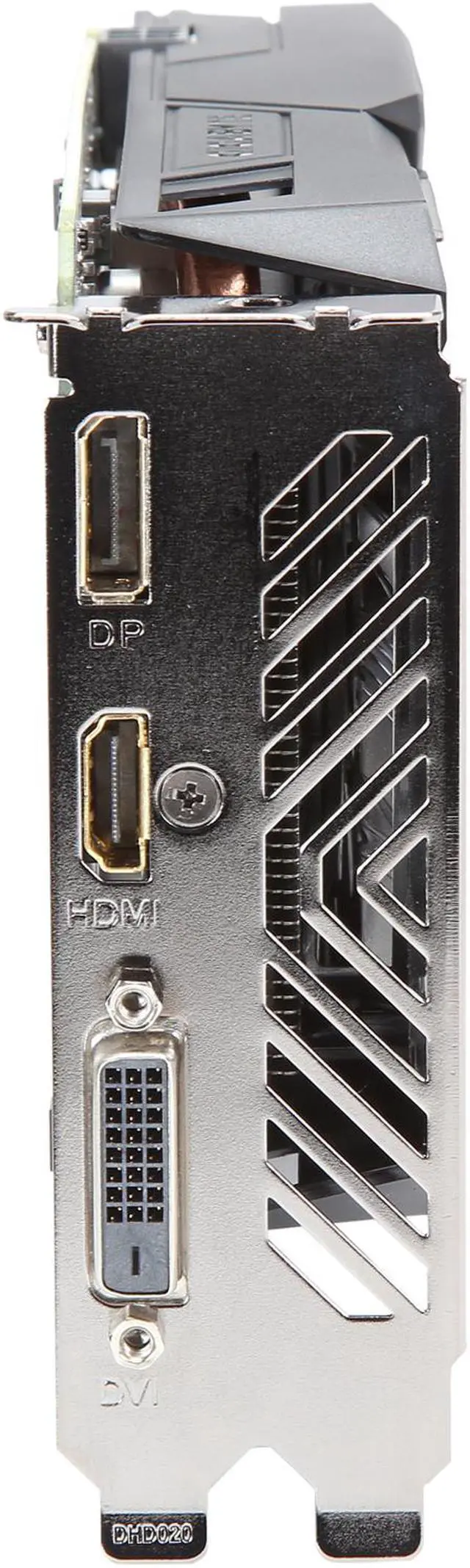

  • 1 x Dual-link DVI-D 1 x HDMI 2.0b 1 x DisplayPort 1.4
  • 1024 Stream Processors
Specs
Reviews (4)

Learn more about the GIGABYTE GV-RX560GAMING OC-2GD

Model
Brand GIGABYTE
Model GV-RX560GAMING OC-2GD
Chipset
Chipset Manufacturer AMD
GPU Series AMD Radeon RX 500 Series
GPU Radeon RX 560
Core Clock OC mode: 1300 MHz
Gaming mode: 1287 MHz
Stream Processors 1024 Stream Processors
Memory
Effective Memory Clock 7000 MHz
Memory Size 2GB
Memory Interface 128-Bit
Memory Type GDDR5
3D API
DirectX DirectX 12
OpenGL OpenGL 4.5
Ports
Multi-Monitor Support 3
HDMI 1 x HDMI 2.0b
DisplayPort 1 x DisplayPort 1.4
DVI 1 x Dual-link DVI-D
Details
Max Resolution 7680 x 4320
Eyefinity Support Yes
CrossFireX Support Yes
Cooler WINDFORCE 2X
Thermal Design Power 90W
System Requirements Recommended PSU: 400W
Recommended PSU Wattage 400W
Power Connector 6-Pin
Features
Features Powered by Radeon RX 560 (16CU)

Integrated with 2GB GDDR5 128-bit memory

WINDFORCE 2X with Blade Fan Design

One-click Super Overclocking

Supports HDMI 4K@60Hz and DP 8K@60Hz

Hardware-accelerated H.265 encode/decode
Form Factor & Dimensions
Form Factor ATX
Max GPU Length 190 mm
Card Dimensions (L x H) 7.48" x 4.37"
Slot Width 2 Slots
Additional Information
First Listed on Newegg February 12, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 90 days
  • Limited Warranty period (labor): 90 days
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.ca's Standard Return Policy.
  • 15% restocking fee may apply.
  • Read full return policy for details.
