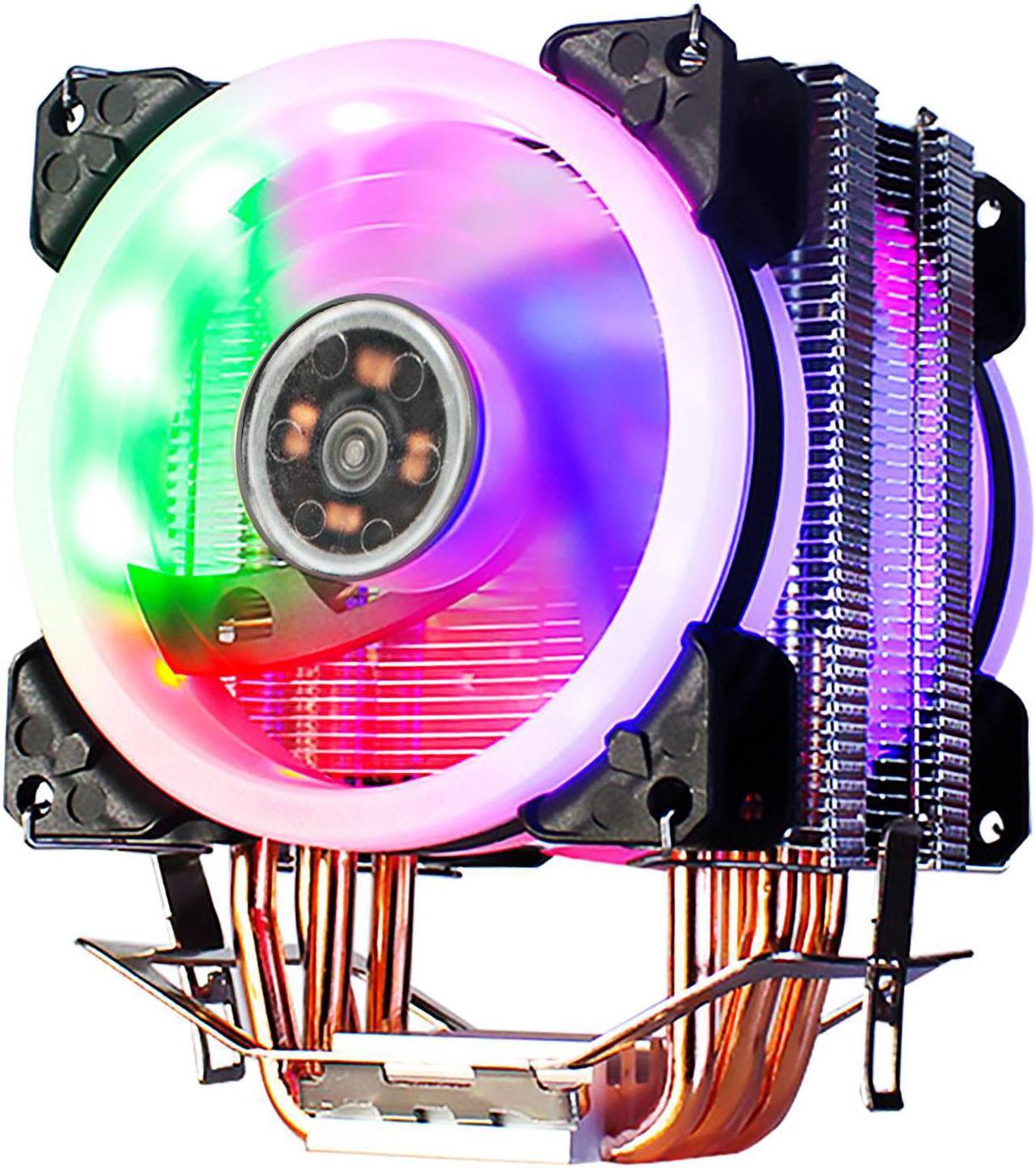

4 Heat Pipes Air CPU Cooler
- Tower-shape air CPU cooler with mouting bracket
- 4 copper pipes configuration for CPUs up to 210W TDP
- 4 x 6mm pure copper pipes and stacked fin heat sink

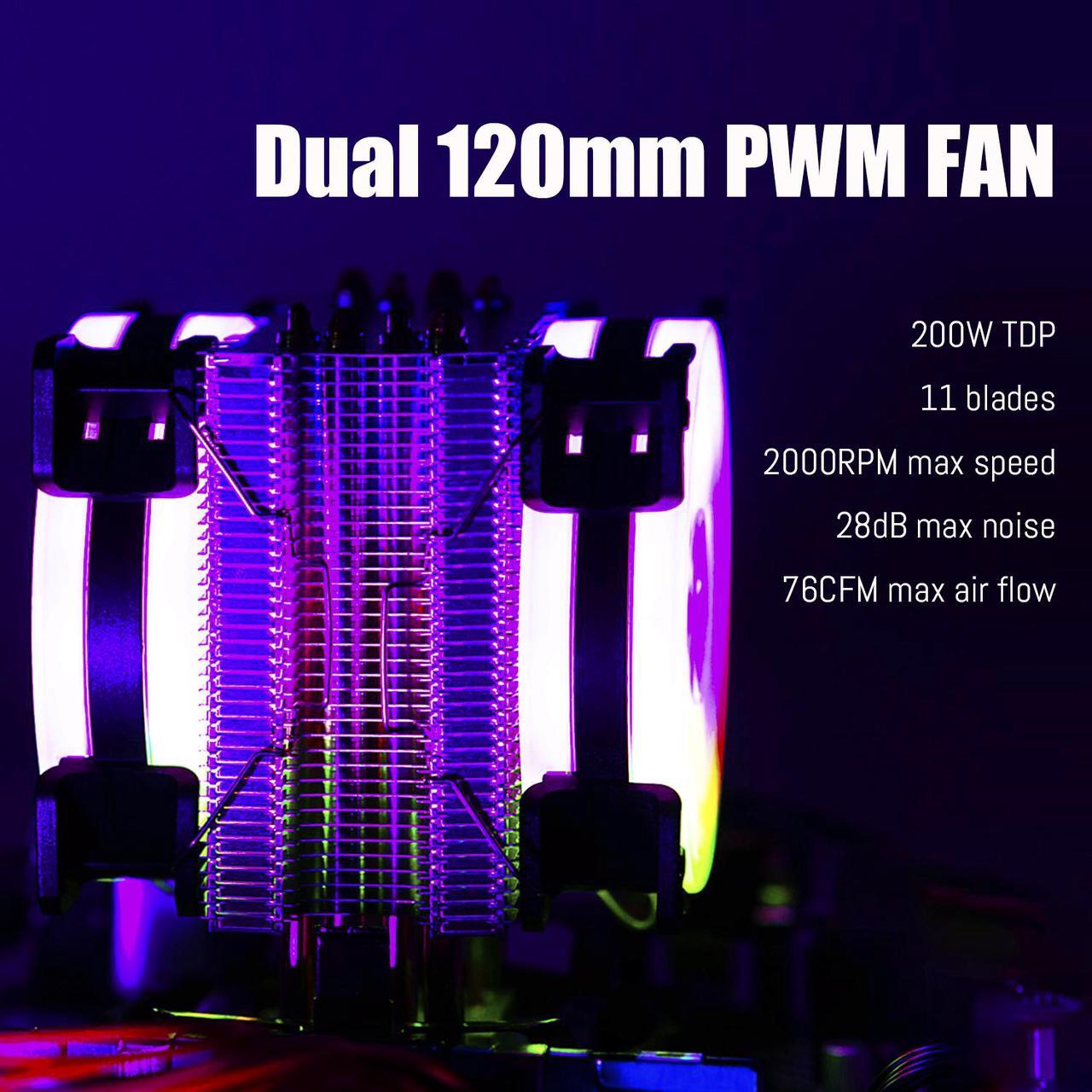

- Dual removable 120mm fan with PWM for automatic speed control

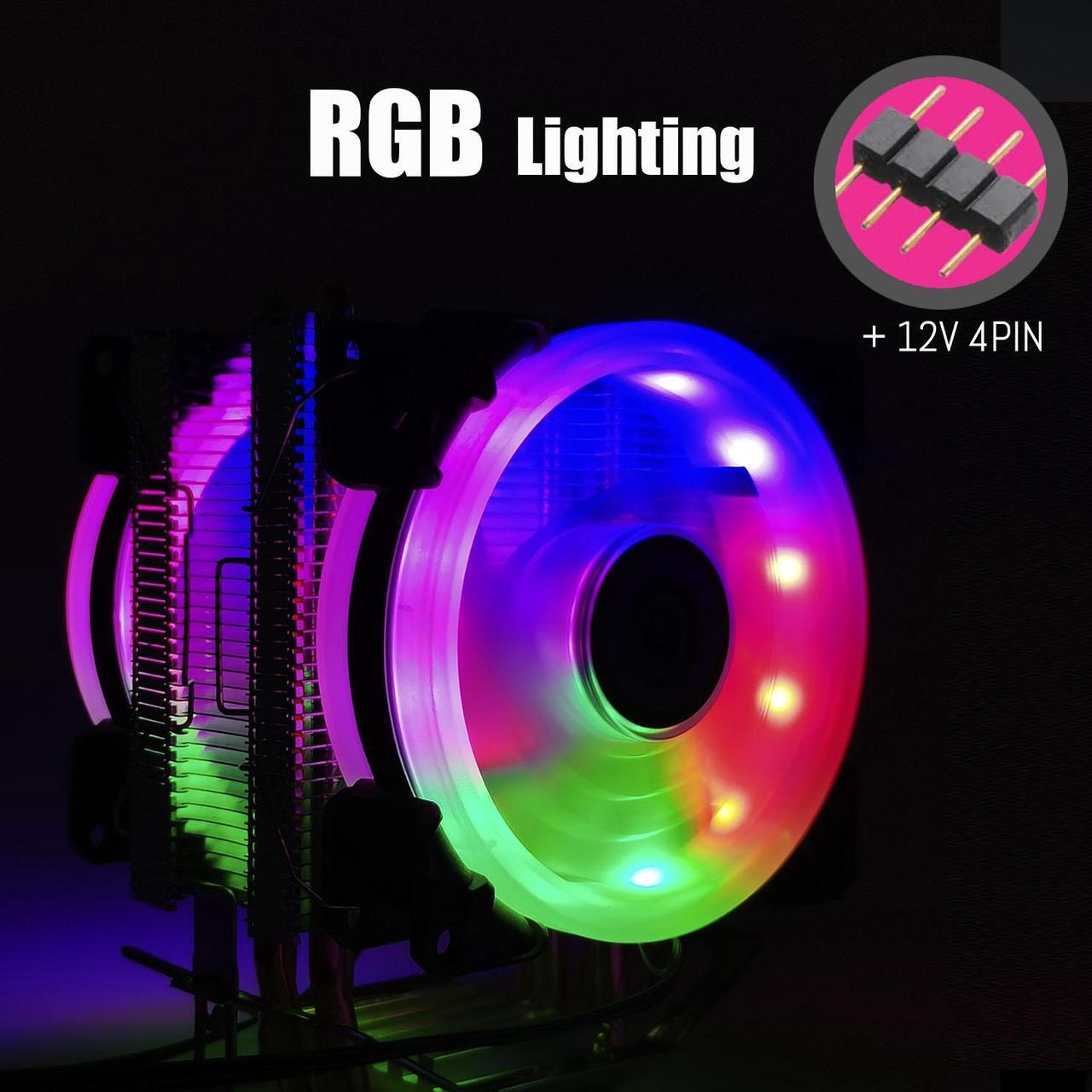

RGB FAN
- PWM FAN Speed: 2000 RPM at max
- Air Flow: 76CFM at Max
- Noise: 28dB at Max
- Material: ABS Translucent Fan Blade
- Blade: 11 pieces
- Size: 120mm
- Power Supply: 12V 4PIN

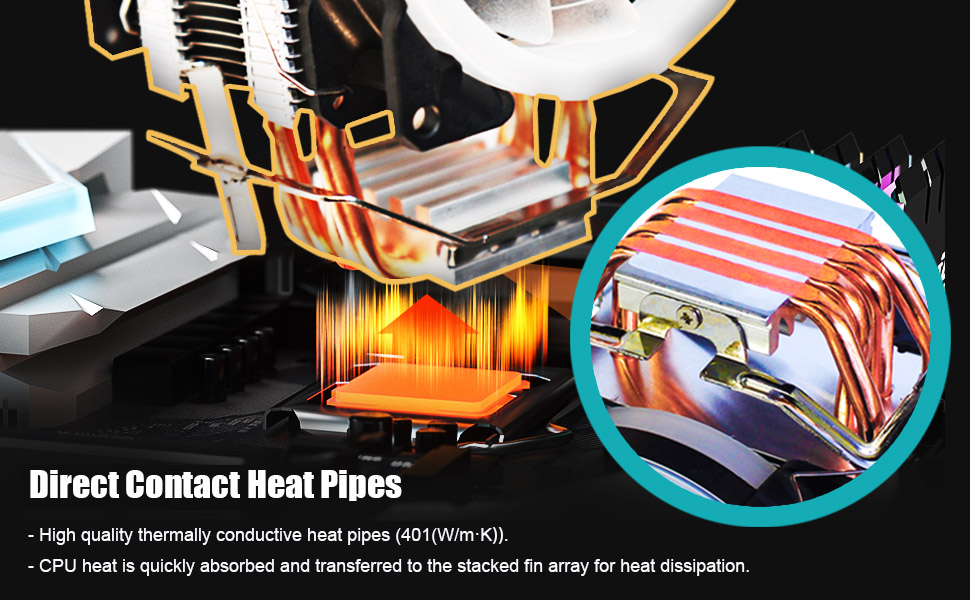

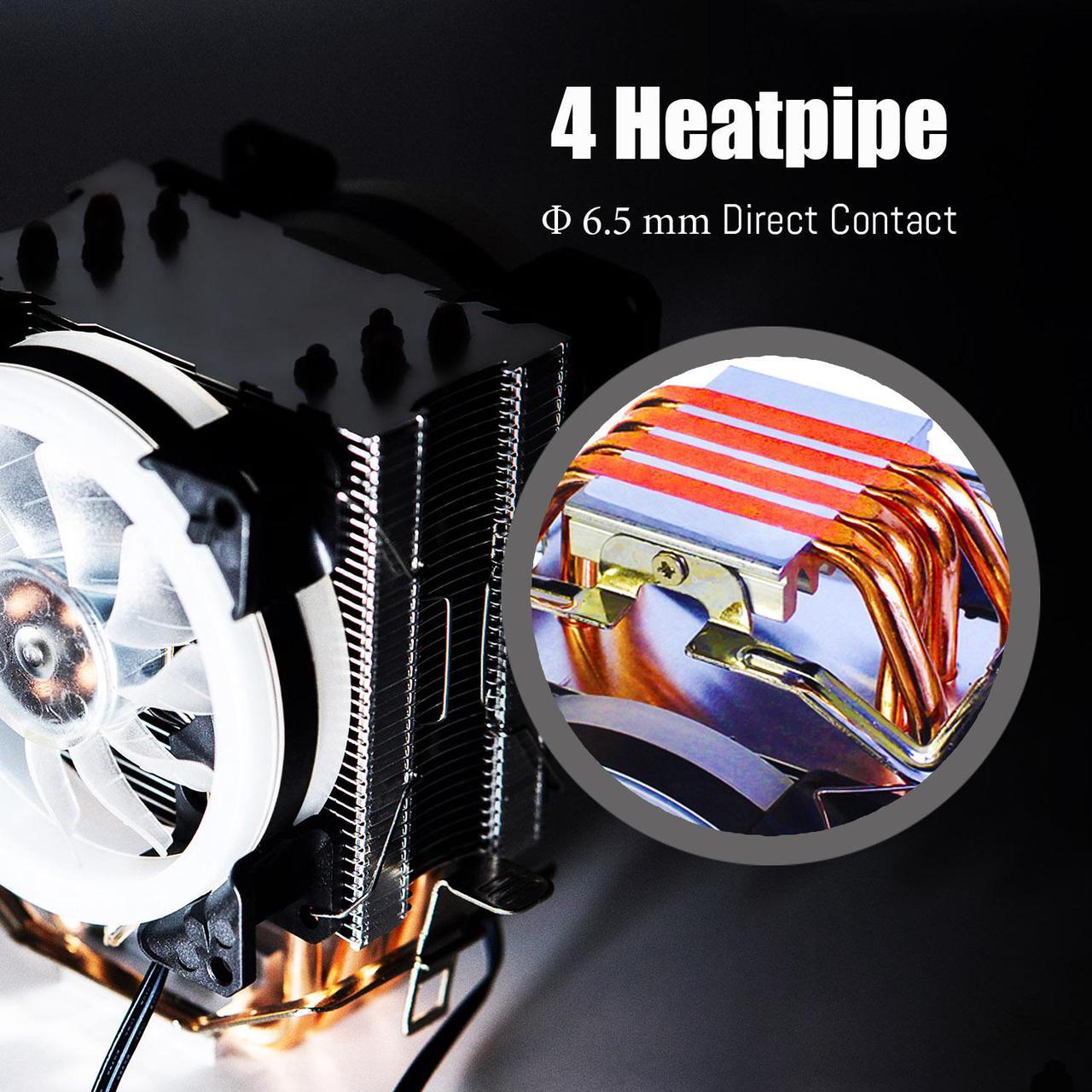

Direct Contact Copper Pipes
- 4 x 6mm Pure copper and vacuum heat-pipes contact CPU directly and efficiently conducts CPU heat to stacked fin heat sink.

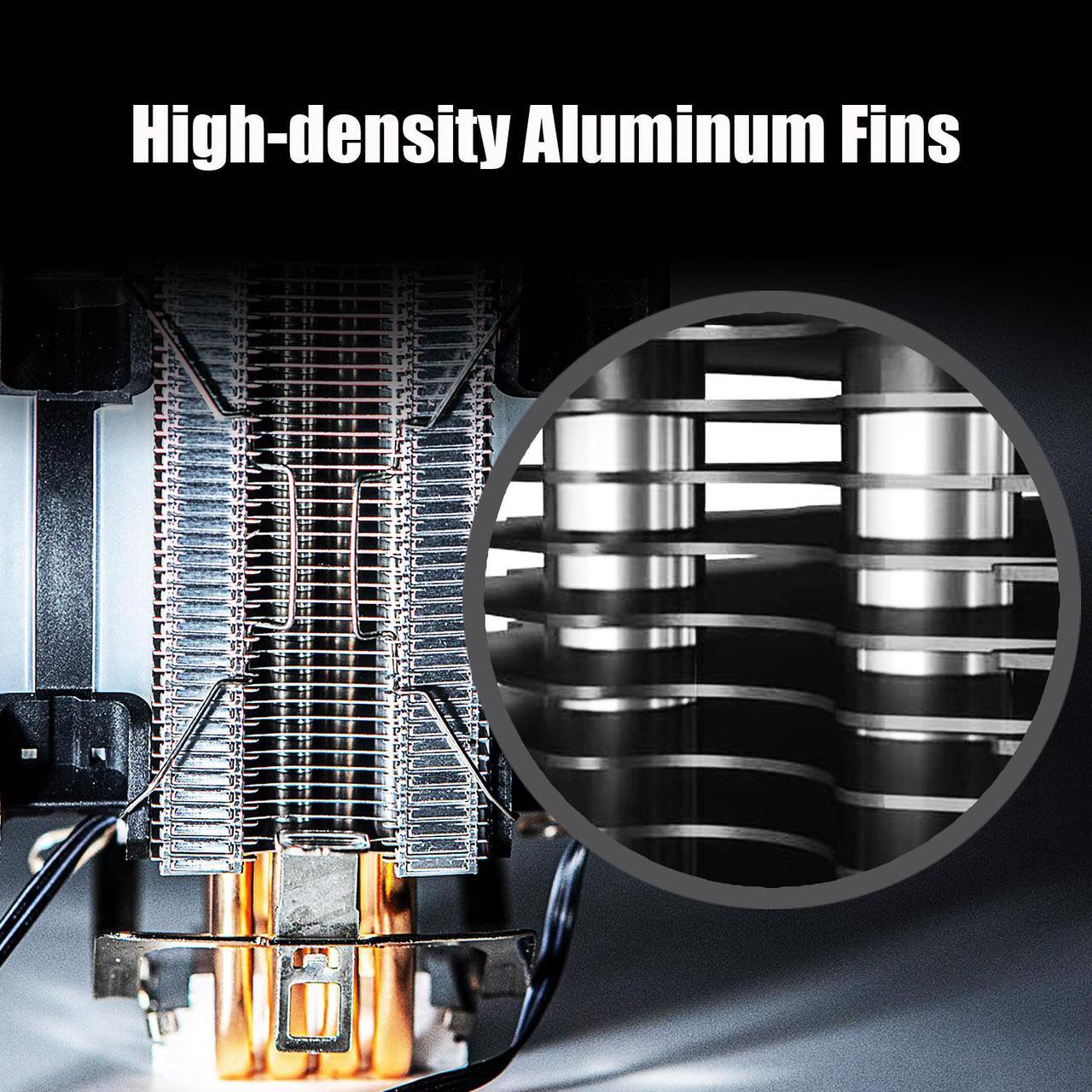

- The stacked fin heat sink adopts the technology of fin-penetration and fin-buckle, the heat pipes and fins can be closely connected.
- The stacked fins are designed to maximize exposure to the cooler air, which then absorbs the heat from the aluminum fins.
- Side mounted fan then pushes the warm air away from the aluminum fins.

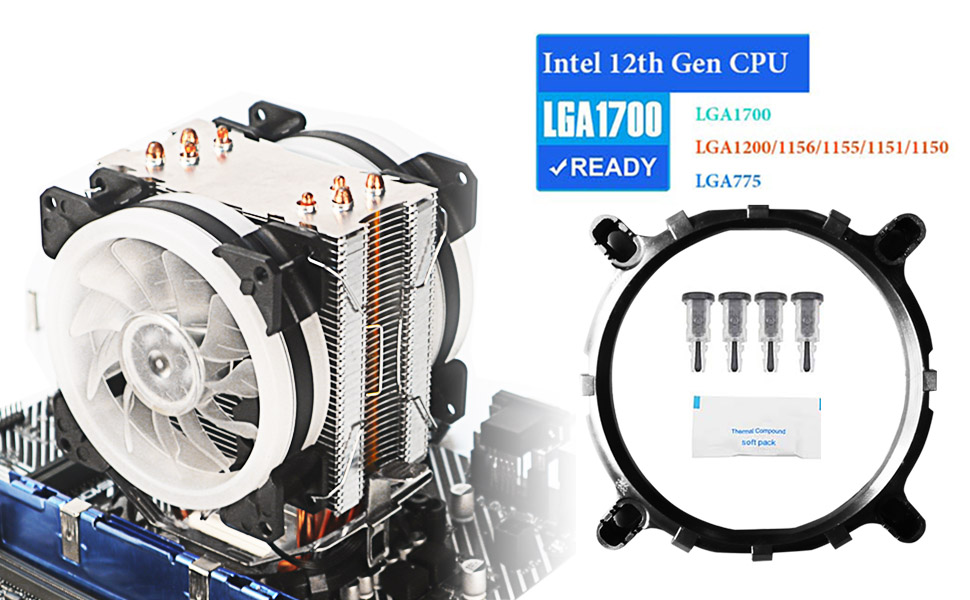

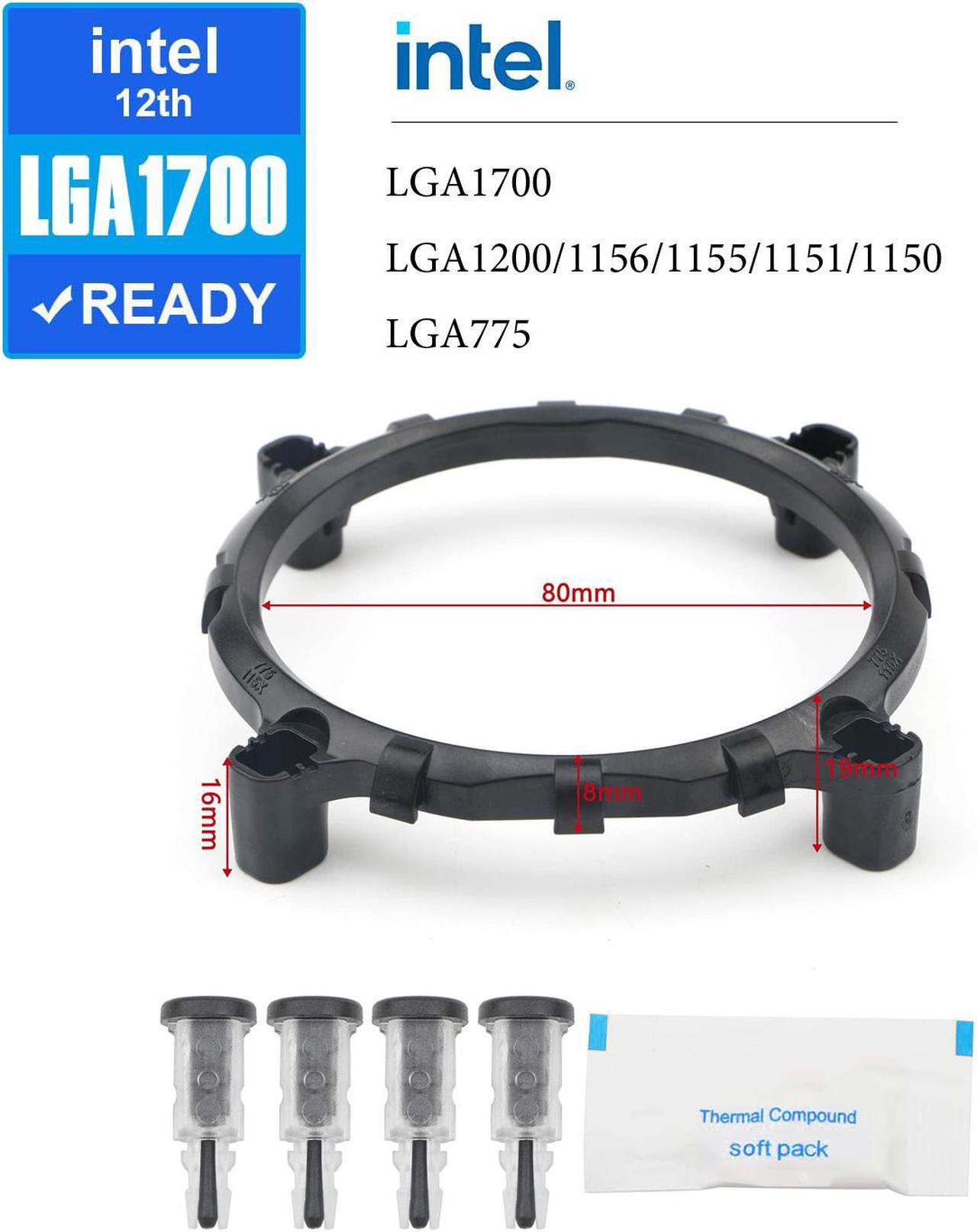

Included Accessories
- Mounting Bracket for Intel CPU LGA 1700/1200/156/1155/1151/1150/775
- Thermal Conductive Silicone Grease
Noted: LGA 1700 Socket is used for Intel 12th Gen CPU
Installation
Step 1
- Put the four hollow transparent pins into the corresponding holes (775/115x/1700) on the bracket.
- For an example of LGA 1700, the pins should be in the 1700 position of bracket holes.
Step 2
- Align the hollow transparent pins with the four pinholes on the motherboard (see red dashed circles).
- Press down the bracket until you hear a "click" sound.
Step 3
Once you have pushed down all four hollow transparent pins, take a look at the bottom of the motherboard. If you have installed the bracket correctly, the four hollow transparent pins should protrude fully as shown in the image.
Step 4
- Then put the 4 black solid cap pins poke through those hollow transparent pins. The bracket will attach to the motherboard firmly.
- To remove the bracket, you need to move the black solid cap pins first, then the bracket can be pulled out from the motherboard.
Step 5
Before installing the CPU cooler, apply a thin layer of thermal grease on the surface of the CPU.
Step 6
Then hook the short CPU cooler clip to the mounting lug on one side of the bracket.
Step 7
On the other side, push straight down on the long CPU cooler clip to hook it to the mounting lug on the bracket.
Step 8
Finally, attach the 4 PIN power connector of the CPU cooler to the CPU fan header (CPU_FAN) on the motherboard.
