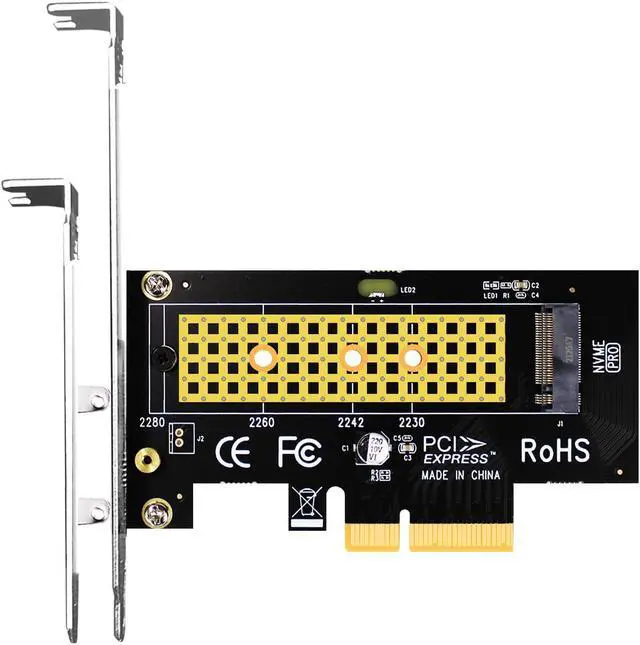

Name: GLOTRENDS PA09 M.2 NVMe to PCIe 4.0 X4 Adapter for 2230/2242/2260/2280 M.2 NVMe SSD, PCIe X4 Installation
Brand: GLOTRENDS
SKU: 17Z-00SW-00003
Price: 12.99 CAD
Availability: InStock

GLOTRENDS PA09 M.2 NVMe to PCIe 4.0 X4 Adapter for 2230/2242/2260/2280 M.2 NVMe SSD, PCIe X4 Installation

Option: M.2 PCIe X4 Adapter

M.2 PCIe X4 Adapter

Converting one PCIe X4/X8/X16 slot on the motherboard to the M.2 Key M slot allows you to install M.2 NVMe SSD into this Key M slot.
FCC and CE certified, Highly Reliable, and Stable PCIe X4 Full Speed: The M.2 NVMe SSD speed is unaffected, just as if it was installed on the motherboard

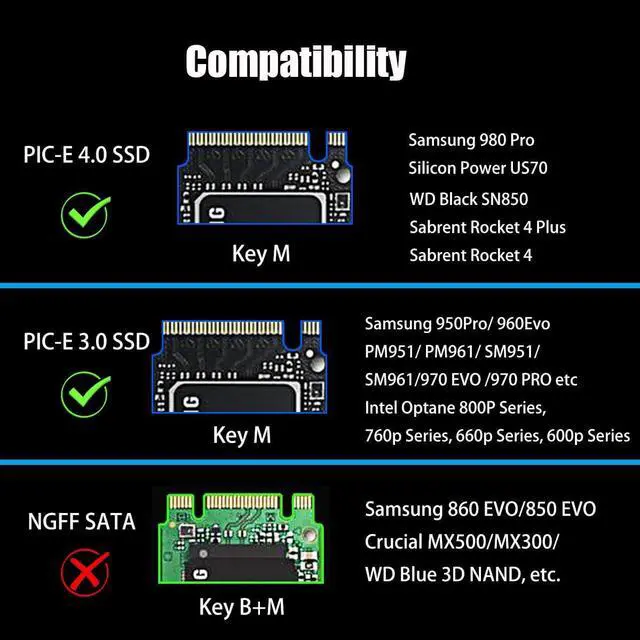

No limit to the capacity of the M.2 NVMe SSD: Support 2T/4T (Note: Support 2230/2242/2260/2280 PCIe (NVMe/AHCI) 4.0/3.0 M.2 SSD, not support M.2 SATA SSD)

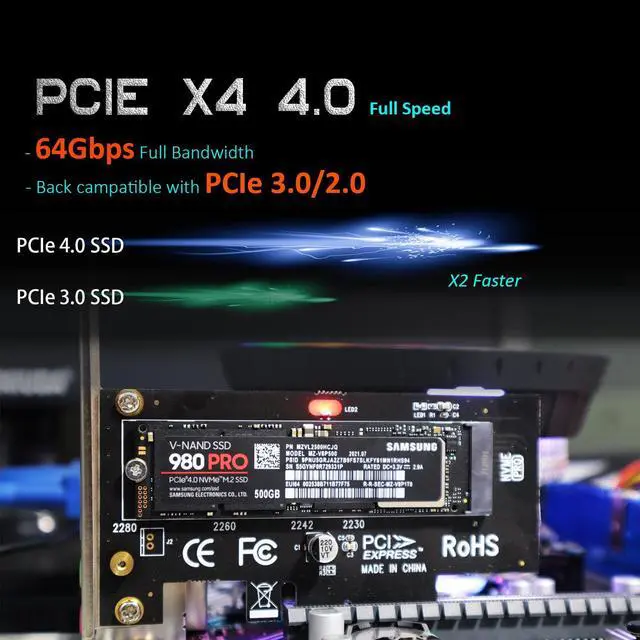

To reach PCIe 4.0 X4 (64Gbps) full speed, the CPU and motherboard PCIe slot and PCIe M.2 SSD should all be PCIe 4.0 features (Note: PCIe 4.0 is not supported on Intel CPUs below 11th generation)
Support OS Booting: Reinstall the OS, and set up BIOS/UEFI boot from this M.2 NVMe SSD
OS compatibility: Plug-and-play in Windows 11/10/8/Linux/Mac OS (Note: Not support Windows 7). The new M.2 NVMe SSD needs to be initialized and formatted before it can be recognized by the computer host.

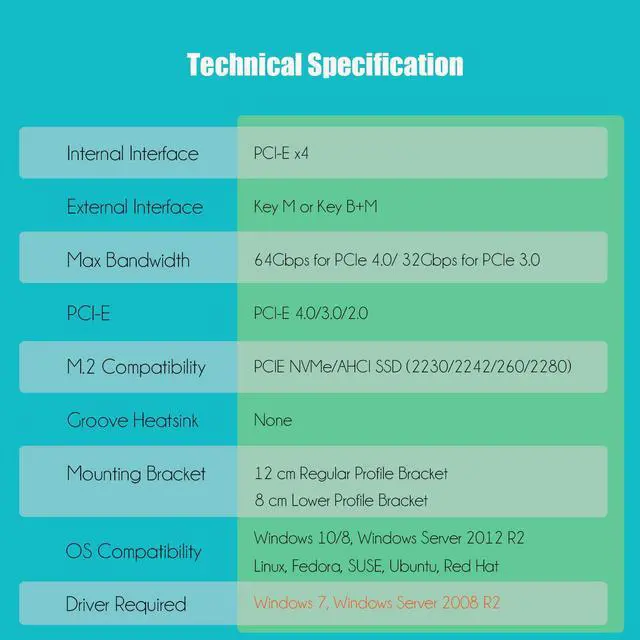

Model: PA09

Internal Interface	PCI-Express X4 (X4/X8/X16 lane installation)
External Interface	Key M or Key B+M (Please note that some M.2 SATA SSD is also Key B+M )
Max Bandwidth	64Gbps for PCIe 4.0/ 32Gbps for PCIe 3.0
PCI-E Compatibility	PCI-Express 4.0/3.0/2.0
Form Factor	2230/2242/2260/2280
Profile Bracket	12cm Regular-profile bracket and 8cm Low-profile bracket
OS Compatibility	Windows 10/8, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, Red Hat

NVMe drive as boot drive or storage drive?

For NVMe boot drive, you need to reinstall the OS (windows 10 64bit/Windows 11 is recommended).

First, you need to prepare a bootable USB drive and OS (windows 10 64bit/Windows 11).
When reinstalling the system, please select GUID Partition Table (GPT).
OS will reboot after completing the installation, remove the bootable USB drive, and enter BIOS to setup UEFI boot mode

For NVMe storage drive, Plug and play in Windows 11/10/8/Linux/Mac OS

Windows 7 can not support NVMe drive
Brand new NVMe drive needs to be initialized and formatted before OS recognizes it.

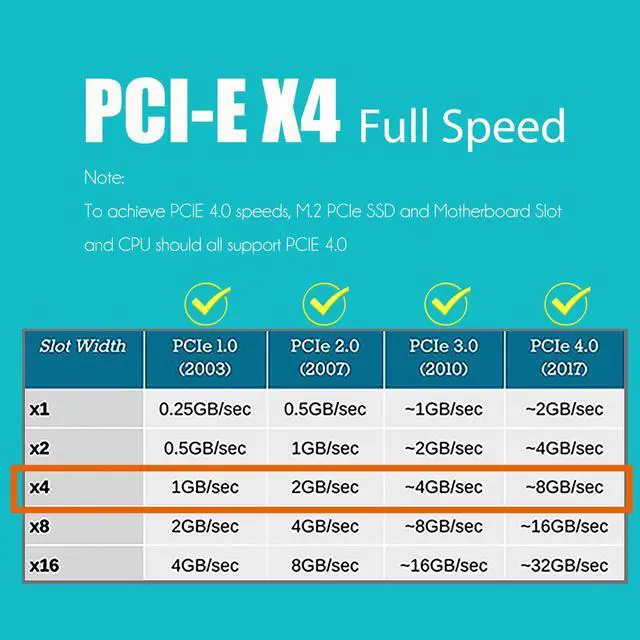

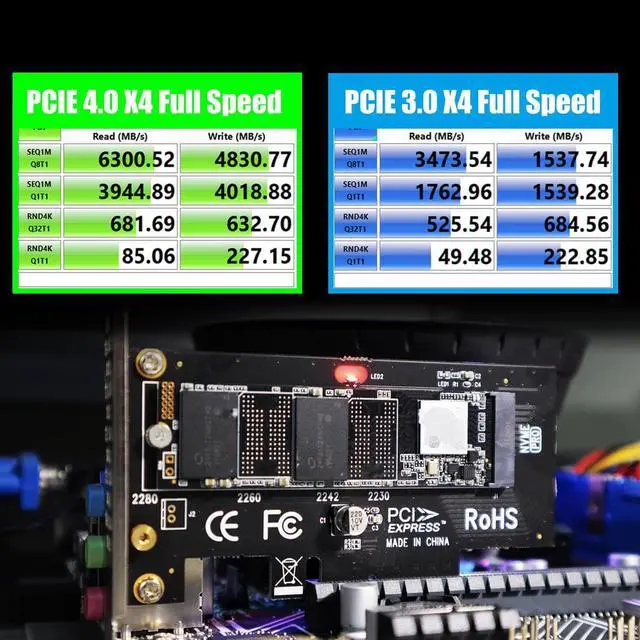

PCI-Express X4 Full Speed

M.2 PCIe adapter supports PCIe X4 full speed and is PCIe 4.0/3.0/2.0/1.0 compliant.
To reach PCIe 4.0 X4 full speed, your motherboard and CPU, and M.2 PCIe SSD should all support PCIe 4.0, otherwise can not reach PCIe 4.0 X4 full speed
Intel CPU 11th generation and above support PCIe 4.0 feature

Installation

M.2 NVMe SSD is inserted at a 30-degree angle into the Key M Slot
Screw M.2 SSD to the PCIe adapter
M.2 PCIe adapter plugged into PCIe slot

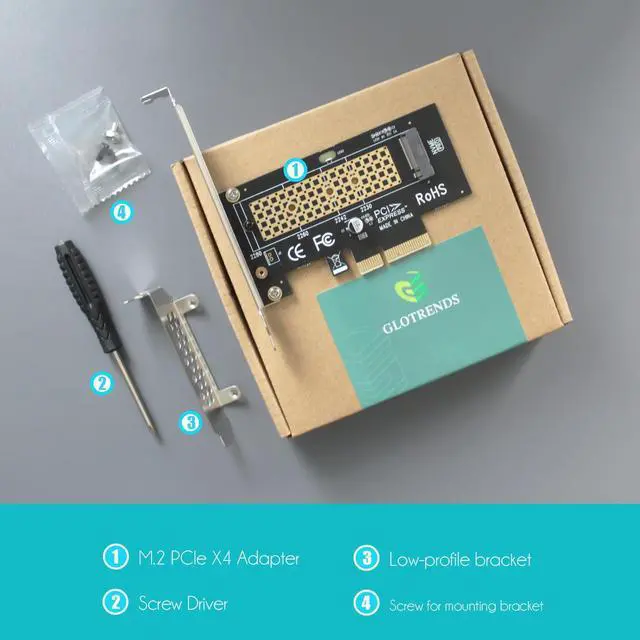

Package Including

M.2 PCIe X4 Adapter (including M.2 screw and Standoff for 2230/2242/2260 size SSD)
Screw Driver
Low-profile Mounting Bracket
Screw for mounting to the PC case

Products	PA09-HS	PA09-X1	PA09-SA	PA12-HS	PA20	PA40
Internal Interface	PCI-Express 4.0 X4	PCI-Express 4.0 X1	SATA III	PCI-Express 4.0 X4 + SATA III	PCI-Express 3.0 X4	PCI-Express 3.0 X8
External Interface	Key M	Key M	Key B	Key M + Key B	2 x Key M	4 x Key M
