GLOTRENDS PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation Function, Support 22110/2280/2260/2242/2230 Size
- Dual M.2 NVMe to PCIe 3.0 X4 Adapter: By installing 2 M.2 NVMe SSDs on this PCIe 3.0 X4 adapter, your computer will be able to access 2 x M.2 NVMe SSDs at the same time (Note: Not support M.2 SATA SSD)
- ASM2812 Chip Built-in PCIe Bifurcation: It can work with all kinds of motherboards (Note: The PCIe slot must be allocated with PCIe X4 lane bandwidth)

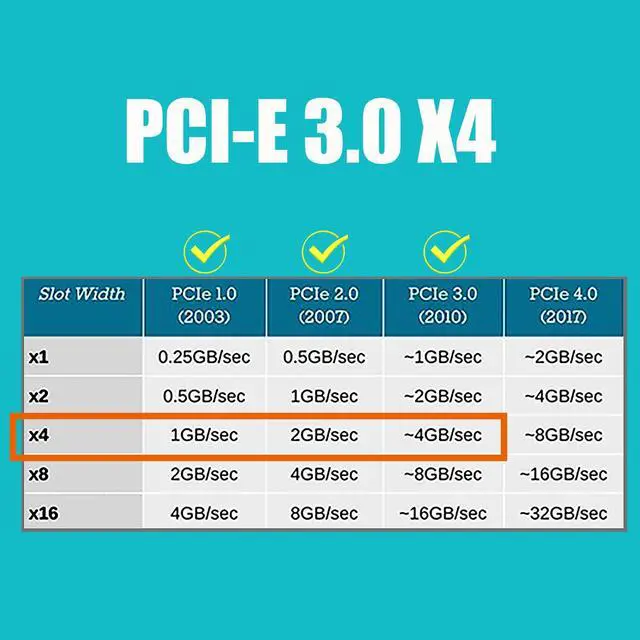

- Upstream Bandwidth: 2 x M.2 NVMe SSDs sharing PCIE 3.0 X4 bandwidth (32Gbits/s = 4GB/s max)
- Hardware Platform: Support Soft RAID in Intel/AMD platform, not support Mac Pro 5.1 (Note: To set up Intel's RAID-on-CPU (VROC), you need to purchase your license)
- Support OS Booting: Reinstall the OS, and set up BIOS/UEFI boot from this M.2 NVMe SSD (Note: Some motherboards are too old to support OS booting. In this case, M.2 NVMe SSDs can be used as storage disks)
- Plug-and-play in Windows 11/10/8/Linux/Mac OS (Note: Not support Windows 7). The new M.2 NVMe SSD needs to be initialized and formatted before it can be recognized by the computer host.
+
+
Overview
Specs
Reviews (1)

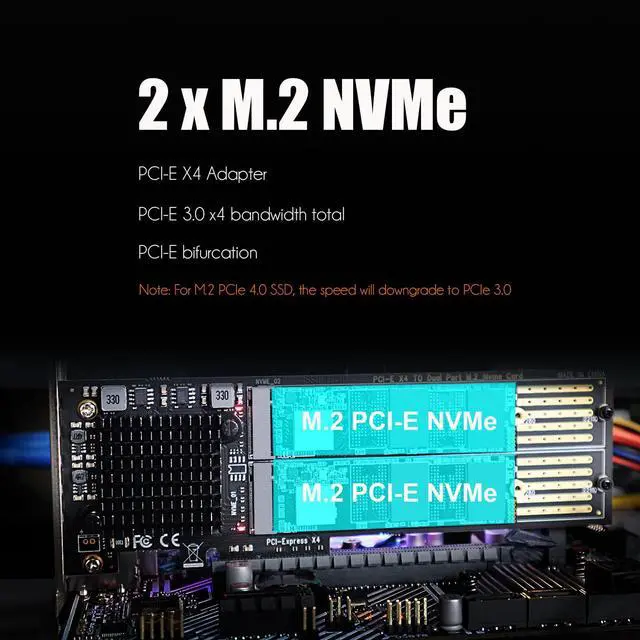

2 Bay M.2 PCIe 3.0 Adapter: add 2 x M.2 PCIe NVMe SSD onto a single PCIe X4 add-on card, your PC will get 2 separate M.2 PCIe NVMe SSD, and you can set up M.2 PCIe SSD RAID 0/1/JBOD. Applicable with 2230/2242/2260/2280/22110 size M.2 PCIe SSD.
2 M.2 PCIe NVMe SSD shares PCIE 3.0 X4 bandwidth (32Gbits/s = 4GB/s at max). For PCIe 4.0 SSD, it will downgrade to PCIe 3.0 mode.

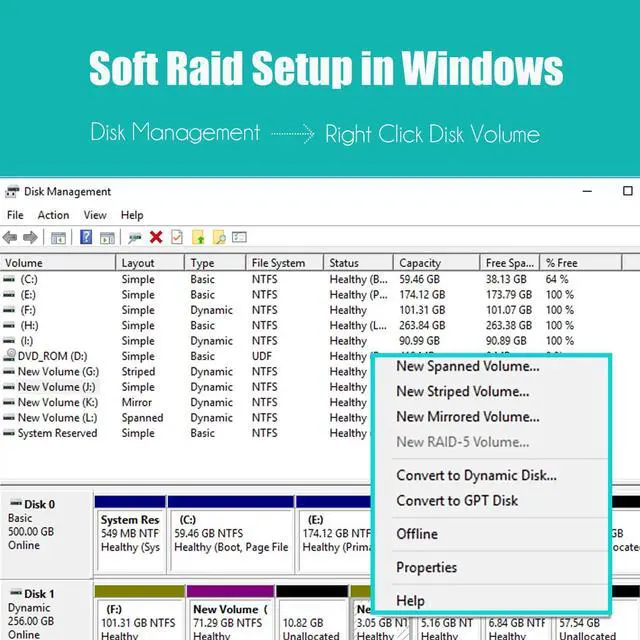

Soft RAID Configuration (Span, Stripe, Mirror Mode) in Windows or Mac, it is not Hard RAID. 2 x M.2 PCIe NVMe SSD can be organized to RAID mode through third-party RAID management software
Compatible with PCIe 4.0/3.0 motherboards, but work under PCIe 3.0 mode. Also back-compatible with PCIe 2.0, and will change to PCIe 2.0 mode.

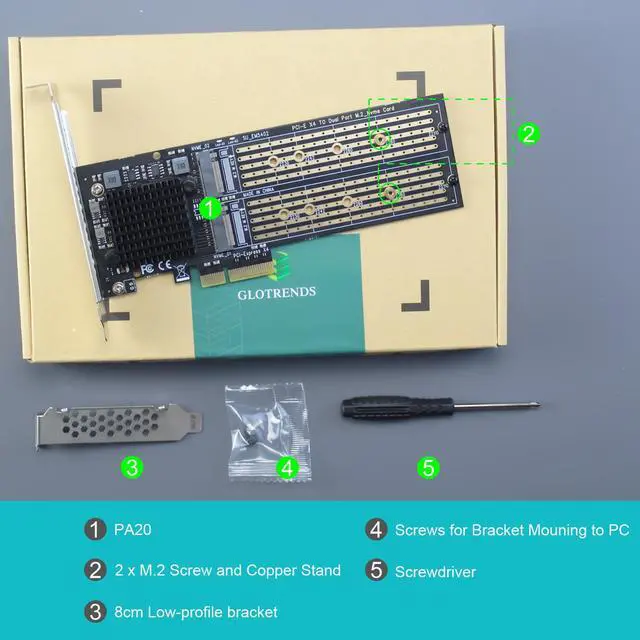

Note: It does not rely on PCIe bifurcation supported by CPU, PCH, or motherboard. So this dual M.2 PCIe NVMe adapter can work with almost motherboards. Works with all workstations or servers with Windows, Linux, and macOS, low-profile bracket and regular-profile bracket are included.
2 M.2 PCIe NVMe SSD shares PCIE 3.0 X4 bandwidth (32Gbits/s = 4GB/s at max). For PCIe 4.0 SSD, it will downgrade to PCIe 3.0 mode.
Soft RAID Configuration (Span, Stripe, Mirror Mode) in Windows or Mac, it is not Hard RAID. 2 x M.2 PCIe NVMe SSD can be organized to RAID mode through third-party RAID management software
Compatible with PCIe 4.0/3.0 motherboards, but work under PCIe 3.0 mode. Also back-compatible with PCIe 2.0, and will change to PCIe 2.0 mode.
Note: It does not rely on PCIe bifurcation supported by CPU, PCH, or motherboard. So this dual M.2 PCIe NVMe adapter can work with almost motherboards. Works with all workstations or servers with Windows, Linux, and macOS, low-profile bracket and regular-profile bracket are included.
