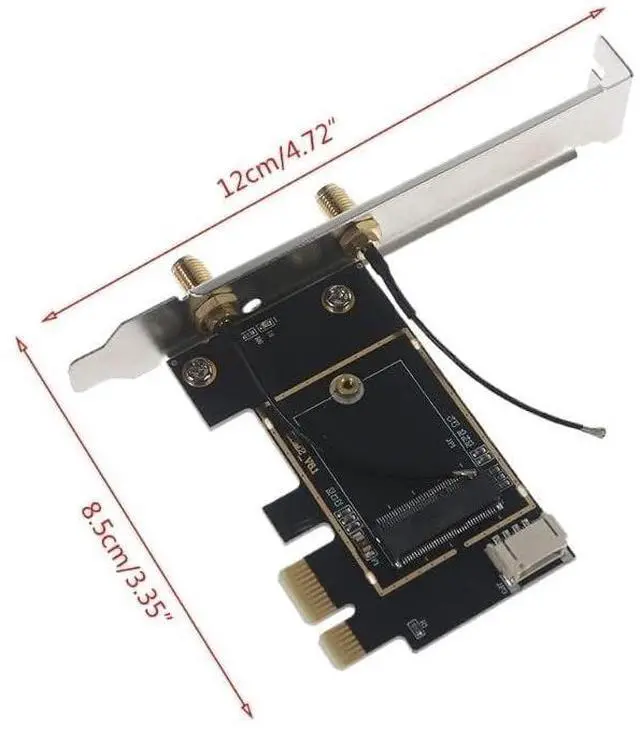

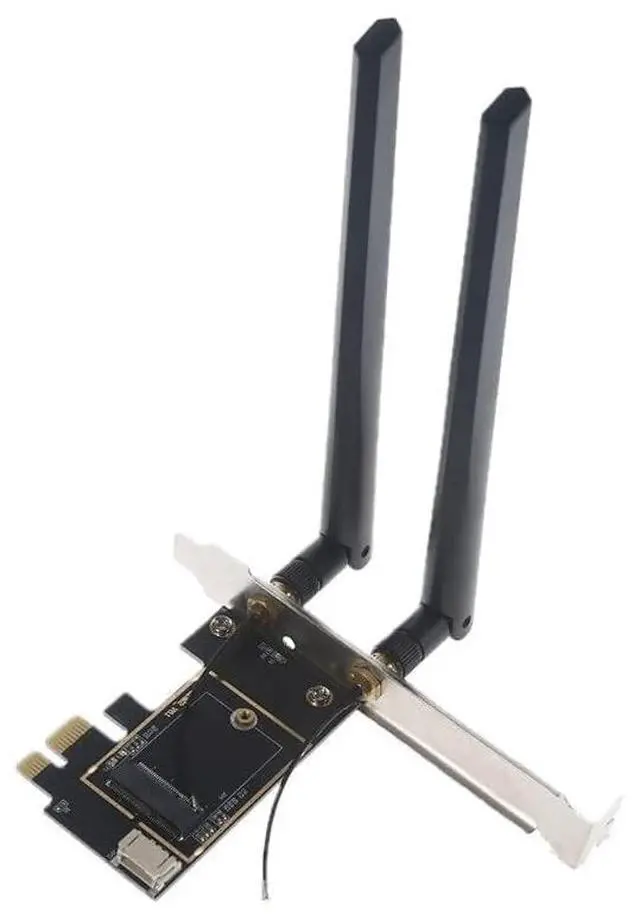

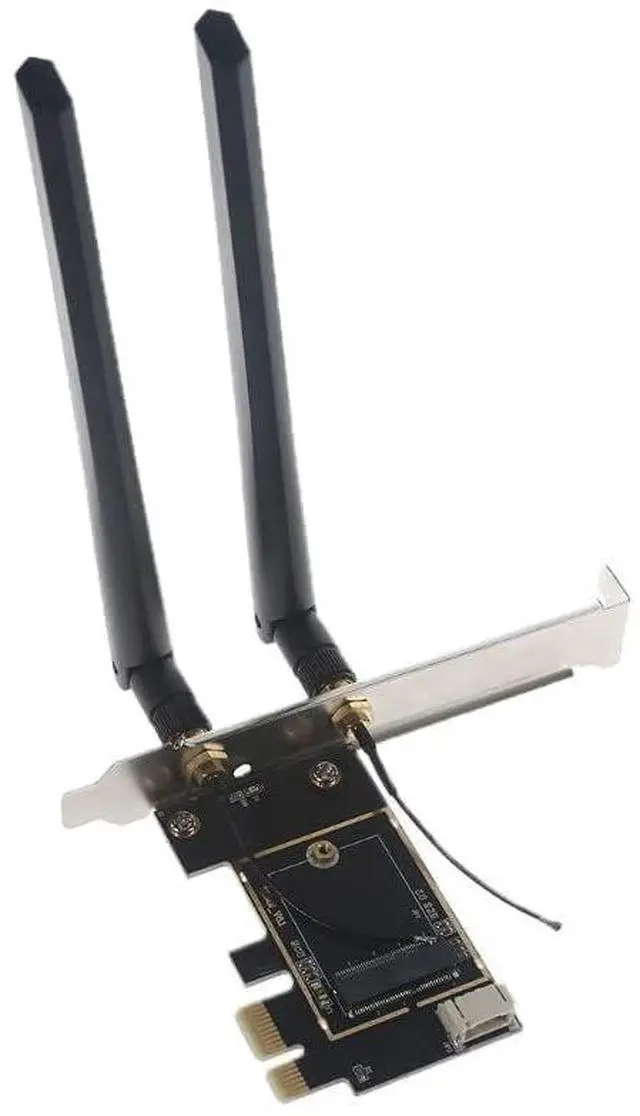

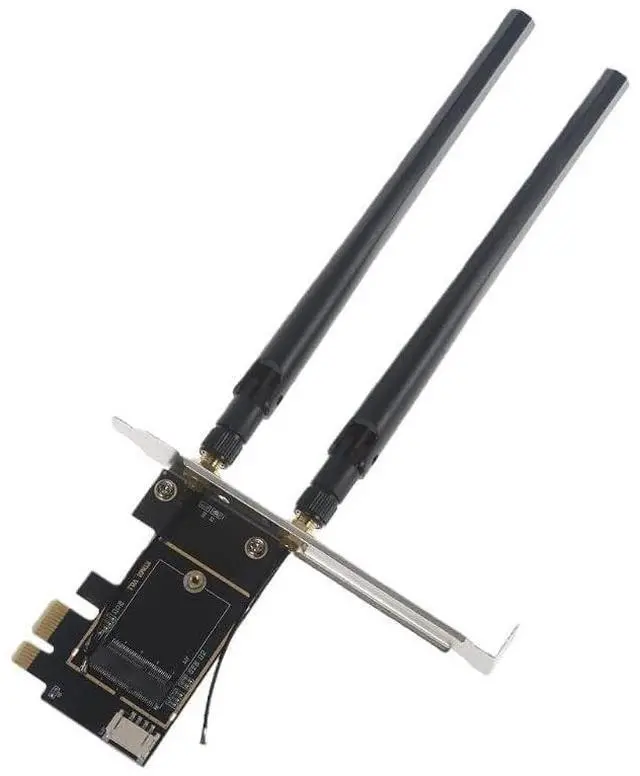

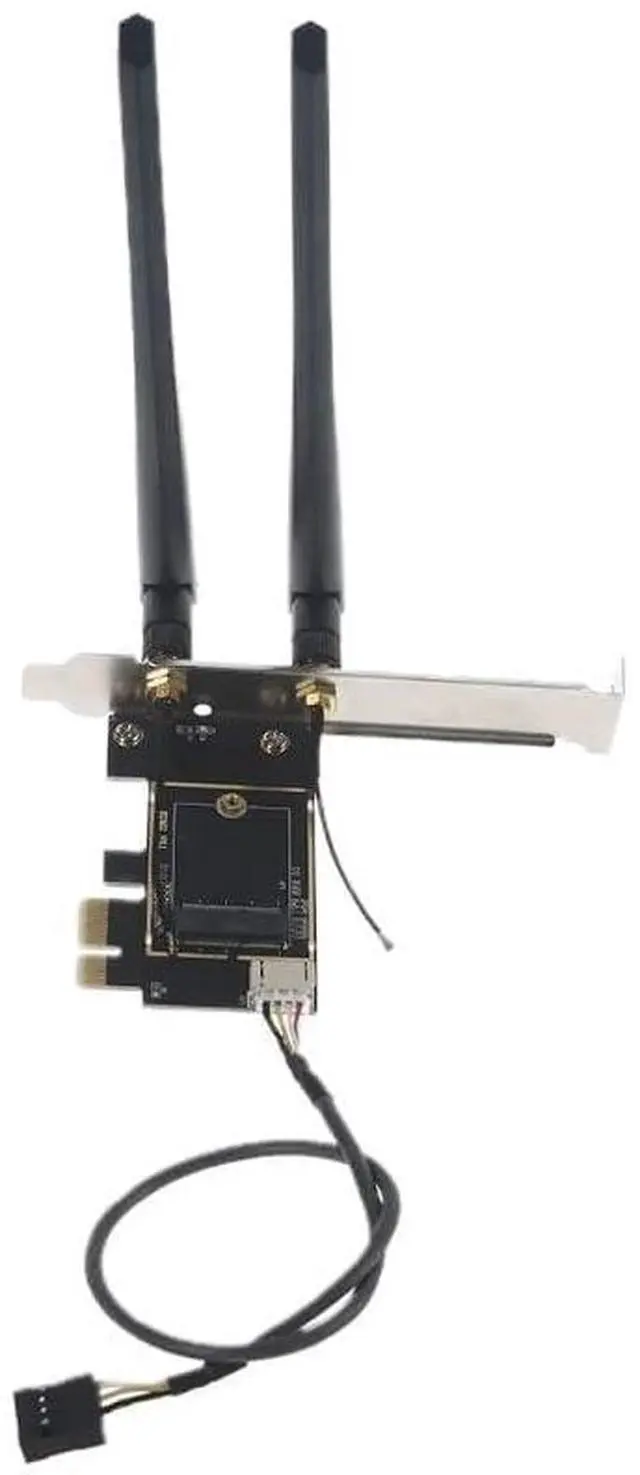

Laptop to Desktop (PCIe x1) Wi-Fi Card Converter for M.2 PCIe Network Cards with Bluetooth Support

Note: the Wi-Fi card is sold separately! This is the Laptop to Desktop Converter Kit

Specifications & Compatibility Requirements:

• System: most Intel or AMD systems. Motherboard must have available internal USB Pin connector for Bluetooth cable


• Operating Systems: Windows 10, Windows 11, Linux


• Desktop Connection: PCIe x1, x4, x8, x16


• Supports NGFF M.2 Wi-Fi Cards (Key A or Key E) designed for Laptop Wi-Fi Cards

***Network Card sold separately***

Installation:

1. Gently insert your Wi-Fi card into the provided Adapter. Secure with the provided screw.


2. Gently attach the provided antenna connectors to your network card---be gentle! The connectors generally pop right on!


3. Turn off your system's power, open the back cover, and locate an available PCIe slot


4. Install into an available PCIe slot


5. Screw the provided antennas to the exterior of the card (they should be outside your PC)


6. ***Test your new Wi-Fi Card by powering on your system*** (You may need to download the drivers for your specific Wi-Fi card)


7. Then, reattach your systems back cover and enjoy your upgraded Wi-Fi!

Package Contents:

(1) Set of antennas & wires

(1) PCIe Adapter Card

(1) Standard Desktop Brackets

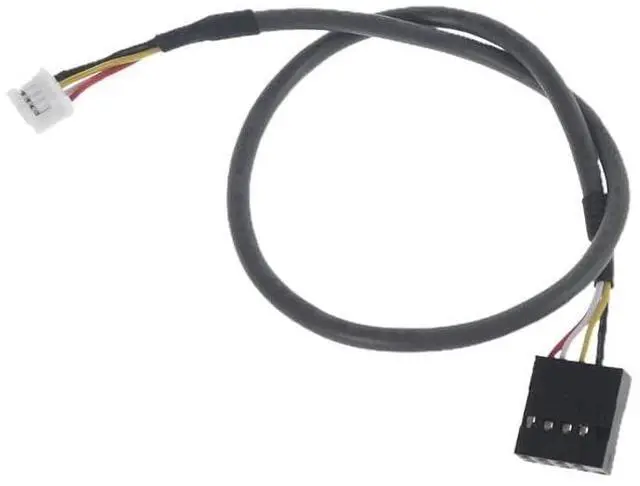

(1) Bluetooth cable (requires open USB pin set on motherboard)

Need assistance on compatibility? Let us know!
