Features:
4K 60Hz HDMI 2.0 Audio Splitter 5.1 ARC HDMI Audio Extractor HDCP 2.2 HDR10 Audio Converter 4K HD-MI to Optical TOSLINK SPDIF
Excellent Quality
· HDMI Audio Extractor: One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out. Extract the audio signal from the HDMI input source to your soundbar, speaker and other Audio Device. Support 4K*2k@60Hz,1080P@60Hz, 3D, HDMI 2.0, HDCP 2.2, RGB 4:4:4.
· EDID Management: Support 2.1CH, 5.1CH and Pass 3 Audio Modes Optional. SPDIF Output Supports DTS-HD/ Dolby-true HD/ DTS 5.1CH/ Dolby-AC3/ DSD/ LPCM 7.1 Audio; Support video format 24/ 30/ 36 bit deep color. RCA Analog 3.5 L/R Output Supports 2CH, PCM, LPCM Stereo Audio. Please Note: This HDMI Audio Extractor not support Dolby Digital plus and Dolby Atmos.
· 4K Ultra HD Picture at 60Hz Support HDR: This HDMI audio extractor converter supports HDMI 2.0 with 18Gbps bandwidth, delivers impressive high quality UHD video. HDR10 technology helps providing a much brighter image and create a more realistic image, a really amazing vision experience.
· ARC Function (Audio Return Channel): Connect your TV HDMI(ARC) Port to this Audio converter HDMI Output Port with HDMI Cable, then connect Optical cable to Amplifier, Speaker and Sound Bar etc. Please Note: ARC function is only available from the Optical Toslink SPDIF Port.
· Wide Device Compatibility: Suitable for various HDMI source devices like Amazon Fire Stick, Roku, Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Apple TV, PS3/4, PS4 Pro, Xbox, PC/laptop, HD camera, HD DVR, etc.
Specifications:

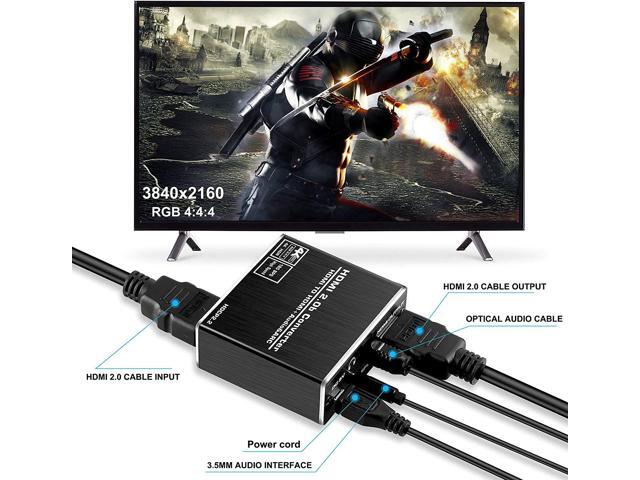

- 1.One HDMI input convert to one HDMI+Audio (SPDIF+R/L) output.
- One audio support: Toslink SPDIF + 3.5mm R/L analog Audio Output.
- Input Resolution : Up to 4K@60Hz,3D,1080p@60Hz, HDMI 2.0, HDCP 2.2, RGB 4:4:4.
- HDMI to achieve the synchronization of audio signal separation.
- There are PASS/2.0CH/5.1CH three kinds of audio mode options.
- Max Band Width: 600MHz.
- Max Band Rate: 18.5Gbps.
Product Specifications:
Input port: 1 HDMI input (Yellow, White, Red)
Output port: 1 HDMI Output, 3.5mm Audio Port,Toslink SPDIF Optical port
Power: 5V/1A Power Adapter
Color: Black
Package Includes:
1 x 4K 60Hz HDMI Audio Extractor
1 x Power Adapter and Cable
1x User Manual
Note:
1. Please sure your HDTV with HDMI(ARC) Port, then connect to ARC Adapter HDMI Output Port
2. ARC function is only available from the Optical Port, 3.5mm headphone port will no sound output if you open the ARC Function
3. When you use the ARC function, the TV remote will not control the volume, you can only adjust the volume on your speaker/soundbar/home theater.
4.It does not support Dolby Digital Plus and Dolby Atmos.
