4K HDMI 2.0 Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with audio Extract Function. The Audio can be output by 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows user to use the existing audio Receiver to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR(High Dynamic Range ) pass-through and eARC/ARC Function.
HDMI Switch support LPCM 7.1CH ,Dolby True -HD,DTS -HD,AC 3,DTS ,DSD, Dolby Digital Plus and Dolby Atmos audio format ,But can 't decode these audio formats .If your Amplifier or soundbar not support these audio formats ,there will be no audio out from your soundbar or amplifier .At this situation ,please set the audio format to PCM /LPCM on your HDMI source .
HDMI Audio Extractor -with Optical TOSLINK SPDIF+Coaxial+3.5mm+HDMI audio out allow you to extract the sound from the HDMI input source (like PS5/4,Xbox one etc .)to your soundbar or amplifier ,no need connecting TV or Monitor .
HDMI ARC/eARC Adapter - Extractor the Audio from IV to Soundbar or Amplifier .Connect your TV HDMI (ARC/eARC)Port to this switch HDMI Output Port with HDMI Cable ,then optical/Coaxial /HDMI cable to the soundbar ,Speaker ,home theater ,AV receivers etc ,then open [ARC/eARC] button.
HDMI Input compatible with any HDMI device :such as PS 4/Roku/Fire TV /Blu -ray players /Apple TV /Xbox/Nintendo Switch /PS4Pro /Xbox 3 60/Xbox One X / PS 3/Beamer/Laptop and other HDMI signal source .HDMI video /audio Output :Monitor ,TV ,Projector .HDMI audio /SPDIF/Coaxial/3.5mm audio output :Receiver ,Amplifier ,Speaker ,headphone and other audio device .
Support 24bit deep color per channel ( Kindly Note :It does not compatible with DVI ,we do not recommend you use HDMI to DVI cable connect to your projector /monitor)
Highly recommend use AWG 26(19+1) standard HDMI 2.0 cable .the distance could reach up to 5 meters before and after when the resolution is 4K@60Hz,can reach up to 8 meters before and after if the resolution is below 4K@30H
Product Description

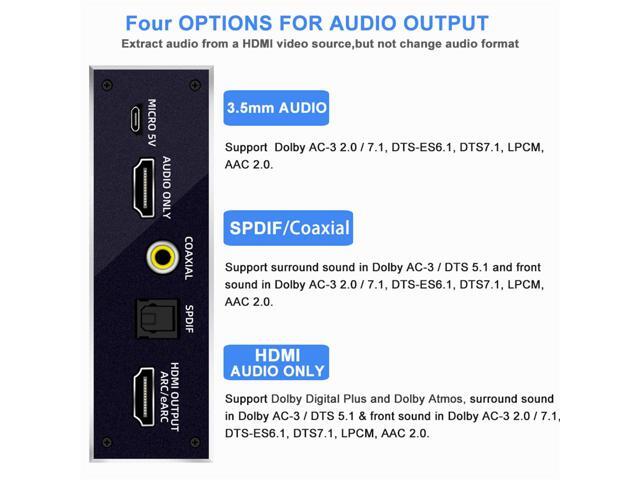

There are 1 HDMI input ,1 port HDMI output ,1 port Toslink audio output ,1 port coaxial audio output,1 port 3 .5mm audio jack ,1 port HDMI audio output .
HDMI(AUDIO ONLY)/coaxial /optical toslink SPDIF audio output support audio return channel function (ARC)
AUDIO ONLY HDMI support eARC (Enhanced Audio Return Channel)
3.5mm Jack port output support audio extract function ,it does not support ARC/eARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@30/60Hz With 24bit RGB 8 :8 :8 /YcbCR4 :4 :4 (4k@60hzYUV 4:4:4).
Max bandwidth per channel :600MHz.Max baud rate per display :18.5Gbps
Compatible with HDR 10,HDMI 2.0b,HDCP2.3/2.2/1.4/1.3/1.2/1.1.
Support 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Specification
Power Supply: DC 5v/1000mA.
HDMI Audio Only Port: PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
3.5mm Audio Jack: Analog stereo 2.0ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).
