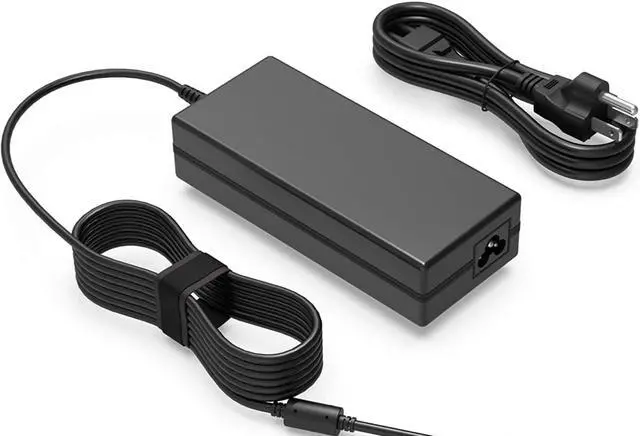

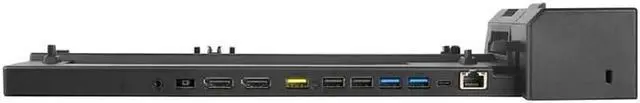

Lenovo ThinkPad 40AH0135US mechanical PRO DOCK with side connector + 135W AC ADAPTER

[ Tech Specs ]

Color: Black

Max Number of External Monitors: 2

Weight: 0.76 kg (1.69 lbs)

Refresh Rate: DisplayPort 1: 4096 x 2160 @ 60 Hz, DisplayPort 2: 4096 x 2160 @ 60 Hz, "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop.

AC Plug: American Standard Plug Type B

Hardware Requirements: ThinkPad Side Docking Connector

Output Power: 85 W

OS Requirements: Windows 10, Windows 11

Audio Ports: 1 x 3.5 mm Stereo/Mic Combo Port

Charging Port: ThinkPad Slim-tip Port

USB Ports: 1 x USB-C (5 Gbps, 5V/3A power), 3 x USB 3.0 (5 Gbps, 1 always-on), 2 x USB 2.0

Video Ports: 2 x DisplayPort 1.4

Package Type: Brown box

Warranty Period: 1 Year

Maximum Humidity: 95% ( no Condensation)

Minimum Humidity: 8%

Maximum Operating Temperature: 35 degrees Celsius (95 degrees Fahrenheit)

Minimum Operating Temperature: 0 degrees Celsius (32 degrees Fahrenheit)

Input Power: 135 W

Power Button: Yes

Compatibility: The dock is only compatible with qualified LAN enabled laptops (please check the LAN port on your machine): Lenovo ThinkPad A285 20MW, 20MX; Lenovo ThinkPad A485 20MU, 20MV; Lenovo ThinkPad L13 20R3, 20R4; Lenovo ThinkPad L13 Gen 2 20VH, 20VJ, 21AB, 21AC; Lenovo ThinkPad L13 Yoga 20R5, 20R6; Lenovo ThinkPad L13 Yoga Gen 2 20VK, 20VL, 21AD, 21AE; Lenovo ThinkPad L14 Gen 1 20U1, 20U2, 20U5, 20U6; Lenovo ThinkPad L14 Gen 2 20X1, 20X2; Lenovo ThinkPad L15 Gen 1 20U3, 20U4, 20U7, 20U8; Lenovo ThinkPad L15 Gen 2 20X3, 20X4; Lenovo ThinkPad L490 20Q5, 20Q6; Lenovo ThinkPad L590 20Q7, 20Q8; Lenovo ThinkPad P14s Gen 1 20S4, 20S5, 20Y1, 20Y2; Lenovo ThinkPad P14s Gen 2 20VX, 20VY, 21A0, 21A1; Lenovo ThinkPad P15s Gen 2 20W6, 20W7; Lenovo ThinkPad P43s 20RH, 20RJ; Lenovo ThinkPad P52s 20LC; Lenovo ThinkPad P53s 20N6, 20N7; Lenovo ThinkPad T14 Gen 1 20S0, 20S1, 20S2, 20S3, 20UD, 20UE; Lenovo ThinkPad T14 Gen 2 20W0, 20W1, 20XK, 20XL; Lenovo ThinkPad T14s Gen 1 20T0, 20T1, 20UH, 20UJ; Lenovo ThinkPad T14s Gen 2 20WM, 20WN, 20XF, 20XG; Lenovo ThinkPad T15 Gen 1 20S6, 20S7; Lenovo ThinkPad T15 Gen 2 20W4, 20W5; Lenovo ThinkPad T480 20L5, 20L6; Lenovo ThinkPad T480s 20L7, 20L8; Lenovo ThinkPad T490 20N2, 20N3, 20Q9, 20QH, 20RX, 20RY; Lenovo ThinkPad T490s 20NX, 20NY; Lenovo ThinkPad T495 20NJ, 20NK; Lenovo ThinkPad T495s 20QJ, 20QK; Lenovo ThinkPad T580 20L9, 20LA; Lenovo ThinkPad T590 20N4, 20N5; Lenovo ThinkPad X1 Carbon (6th Gen) 20KG, 20KH; Lenovo ThinkPad X1 Carbon (7th Gen) 20QD, 20QE, 20R1, 20R2; Lenovo ThinkPad X1 Carbon Gen 8 20U9, 20UA; Lenovo ThinkPad X1 Yoga (4th Gen) 20QF, 20QG, 20SA, 20SB; Lenovo ThinkPad X1 Yoga Gen 5 20UB, 20UC; Lenovo ThinkPad X13 Gen 1 20T2, 20T3, 20UF, 20UG; Lenovo ThinkPad X13 Gen 2 20WK, 20WL, 20XH, 20XJ; Lenovo ThinkPad X13 Yoga Gen 1 20SX, 20SY; Lenovo ThinkPad X390 20Q0, 20Q1, 20SC, 20SD; Lenovo ThinkPad X390 Yoga 20NN, 20NQ; P43s

Other Information: 1 x 3.5 mm Stereo/Mic Combo Port, 1 x Gigabit Ethernet Port, 1 x Kensington security lock slot

Master Key Lock available (Master Key sold separately)



[ Overview ]

The ThinkPad Pro Docking Station is designed exclusively for 2018 and newer ThinkPad T, L, X, and X1 Series laptops to provide the best docking experience for large enterprise ThinkPad customers. The innovative side connector provides a slim, driver-free way to connect conveniently and securely to a range of USB accessories and external displays, while rapid charging support and a mirrored power button make it easy to undock and go.

For IT Managers, the mechanical ThinkPad Pro Dock supports PXE book, wake on LAN, and MAC address pass-through for, simplifying asset management. Painstakingly designed after extensive feedback from ThinkPad customers, these new ThinkPad docking stations provide seamless connectivity through dual USB-C and ethernet ports. Transfer data at 5 Gbps via three USB 3.1 ports, and connect to dual UHD displays, too.
