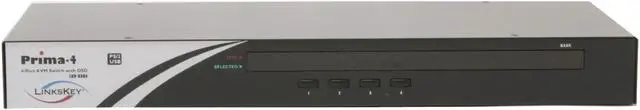

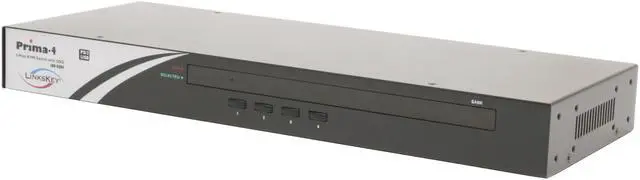

    LINKSKEY LKV-9304 Prima 4 port Cascadable Rackmount USB PS/2 KVM Switch w/ OSD

    Be the first to review this product...
    • 4 Ports Computer Connections
    • 1 Port Monitor Connections
    • AutoScan Interval 5 ~ 99 sec. programmable through OSD Menu
    • Video Resolution 2048 x 1536
    +
    +
    Specs
    Reviews

    Learn more about the LINKSKEY LKV-9304

    Model
    Brand LINKSKEY
    Model LKV-9304
    Details
    Type D-Sub

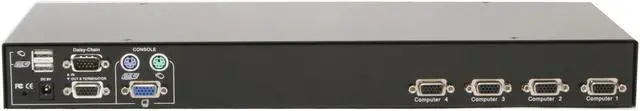

    PC Connectors 4 x HDB 15-pin (VGA, USB, and PS/2 integrated)
    (All Female Type)
    Console Connectors 1 x PS/2 Keyboard 6-pin Mini Din
    1 x PS/2 Mouse 6 pin Mini Din
    1 x VGA HDB 15 pin
    2 x USB Type A
    (All Female Type)
    Computer Connections Computer Connections4 Ports
    Monitor Connections 1 Port
    Video Resolution 2048 x 1536
    PC Selection PC SelectionPush Buttons/Hot Keys/OSD
    AutoScan Interval 5 ~ 99 sec. programmable through OSD Menu
    Environmental
    Temperature 0ºC to 40ºC(32ºF to 104ºF)
    Humidity 0% to 90%,Non-Condensing
    Features
    Power Features External Power Adaptor DC 9V 1A
    USB Features USB Featureswith USB support
    Features 4-port 19" Cascadable Rackmount USB PS/2 KVM switch with OSD
    Cascadable up to 8 units using daisy-chain cable
    Port capacity scalable up to 128 PCs (8 x Prima 16)
    USB and PS/2 interface support on both console and PC side
    Support Microsoft and Logitech standard 5-key mouse and compatibles
    Computer selection and operation using front-panel push buttons, keyboard hotkeys, and OSD Menu
    Numerical LED display and LED indicators for easy bank/port status monitoring
    Keyboard/Mouse emulation to ensure compatibility to most machines and operating systems
    One controller per port to keep alive
    Buzzer sound for hotkey and port switching confirmation
    Autoscan period programmable 5 ~ 95 through OSD Menu
    Password protection through OSD Menu
    Auto-logout timeout through OSD Menu
    High VGA resolution up to 2048 x 1536
    Dimensions & Weight
    Dimensions 16.4" x 6.5" x 1.9"
    Weight 4.4 lbs

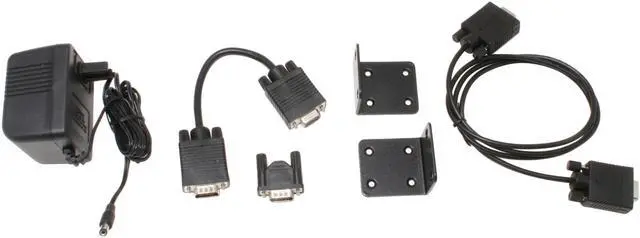

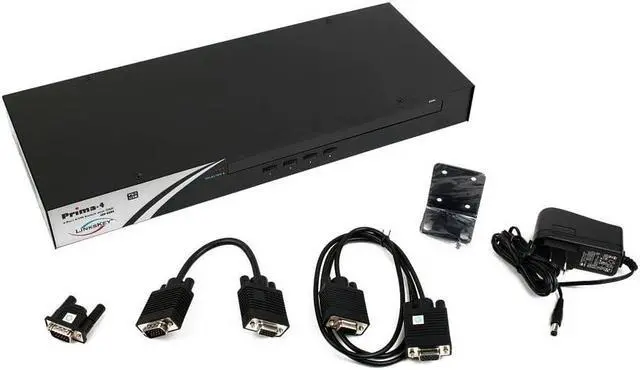

    Package Contents
    Package Contents 1 Linkskey 4-port Prima KVM switch
    1 Power Adapter
    1 Rackmount Kit with screws
    1 Cable Set (Daisy-Chain cable, Daisy-Chain Terminator, Host cable)
