HDMI to SDI, HDMI to SDI Converter Two SDI Output Audio Embedder Support HDMI 1.3, 3G/ HD-SDI Auto Format Detection Extender for Camera CCTV
- HDMI to SDI Converter: HDMI Type A in, Convert high definition 1080P HDMI signal to SDI signals. NOTE: This is not a bi-directional converter. Only Supports HDMI signal to SDI signal, Do NOT Support SDI to HDMI conversion.
- HDMI Input Resolution: 480P, 576P, 720P@50/60Hz,1080P@24/25/30/50/60Hz. Please Note: This HDMI to SDI Converter Only support Above HDMI input frequency and resolution, Do not support other types HDMI input signal. Supports SDI Output Resolution 720P@50/60Hz, 1080P@24/25/30/50/60Hz.
- SDI output: 720P@50/60Hz,1080P@24/25/30Hz for HD-SDI signal.1080P@50/60Hz for 3G-SDI signal. Dual SDI Output Port, Automatic Detection: Auto detection of SD or HD,3G-SDI, Automatically matches the HDMI video input.
- Long output distancs: Supports SDI output distance 100 meters (3G-SDI) for maxium, 200 meters (HD-SDI) for maxium.
- What You Get: HDMI to SDI Converter x1, Power Adapter x1, User Manual x1.
HDMI to SDI, HDMI to SDI Converter Two SDI Output Audio Embedder Support HDMI 1.3, 3G/ HD-SDI Auto Format Detection Extender for Camera CCTV
This HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display
Product Specifications:
- Input Port: HDMI input
- Output Port: SDI Output X 2
- Input HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz
- Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz
Product Features:
- Supports 1ch HDMI input, 2ch SDI output
- Embedded audio and image synchronization output
- Support HDMI 1.3, HDCP1.3
- Built-in ESD protection circuitry can effectively prevent electrostatic damage

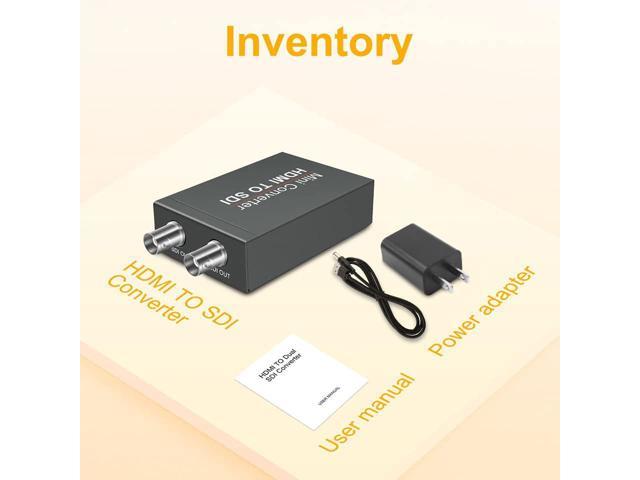

Package Includes:
- 1 x HDMI to SDI Converter
- 1 x Power Adapter
- 1 x Uuse Manual
