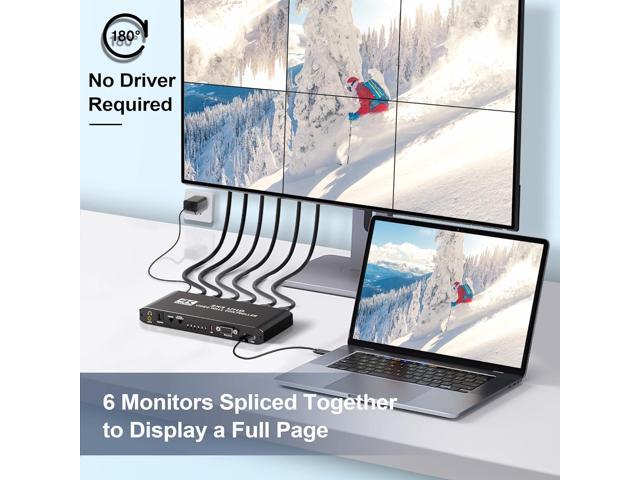

This HDMI video wall controller can distribute one HDMI input signal device to 6 HDMI outputs display simultaneously, via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience. It is the ideal choice for shopping mall video exhibition, video conference, security monitor and other large screen splicing display.

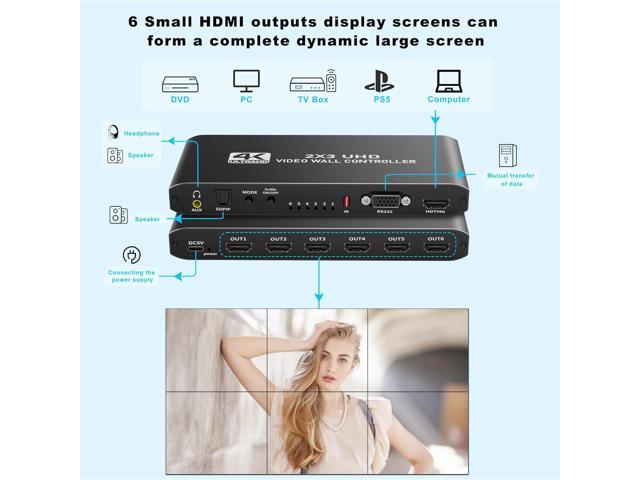

HDMI TV wall processor can distribute one HDMI input signal device (DVD, TV Box, Xbox, Roku, Computer etc.) to 6 HDMI outputs display screens simultaneously, which via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience. NOTE: Please use the Professional Video Walls instead of TVs.

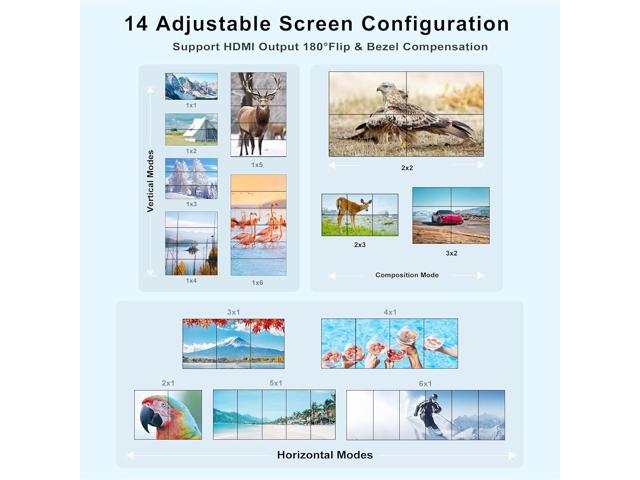

2x3 HDMI video image processor can connect up to 6 LCD TVs or other displays, which have up to multiple display modes for your choice, such as 1x1, 1x2, 1x3, 1x4, 1x5,1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1,5x1, 6x1.

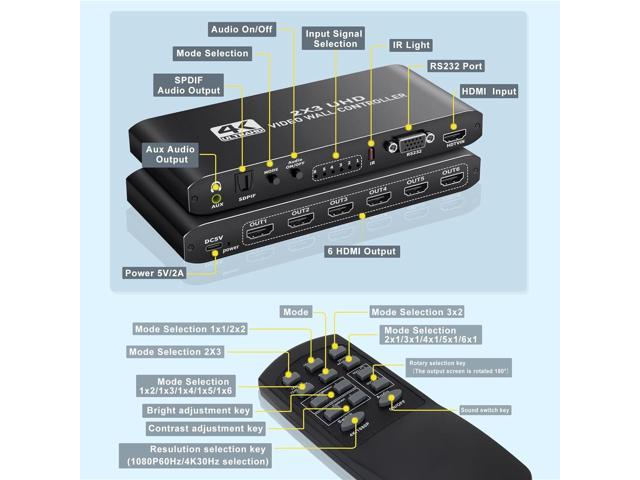

The 3x2 Video Wall Controller can be controlled by remote, button and RS232.
All this modes provides variety splicing options, can easily switch the modes through the IR remote control without getting up or press the "Switch" key at the TV wall controller. Also support RS 232 advanced remote-control. (The remote need Two AAA batteries, Not include in the package)

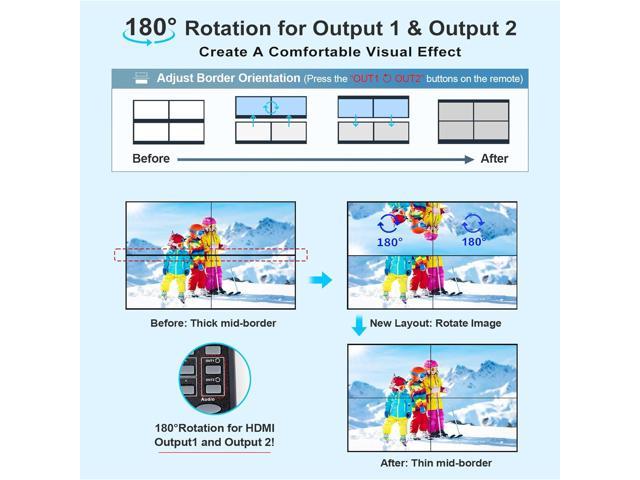

With the 180 degree rotation function, you can flip the image of HDMI output 1 & output 2 to 180°, which can adjust the screens in an orientation with the thinnest edges, reduce the thick middle border. This is easy to adjust it, just press the "Out1 flip Out2 flip" button on the remote.
NOTE: 180°rotation is suite for 2x2 display modes, and the output resolutions NOT more than 1080P@60Hz.
This 4K HDMI LED video wall controller is compliant with HDCP 1.4 and HDMI 1.4, HDMI input can support resolution can up to 4K@30Hz, including 3840x2160P @24/ 30Hz, 1920x1080P@25/ 30/ 50/ 60Hz; the HDMI output resolution can support 1920x1080P@60Hz. It also has an individual SPDIF and 3.5mm stereo audio port, which can connect to the external speaker, amplifier, soundbar etc. Please set the resolution of all screens to 1080p to ensure work well.
Features:
*Supports HDMI input.
*Input support HDMI1.4, HDCP1.4.
*Input format: RGB/YUV24bit;
*Output format: RGB444 24bit.
*Support 2X3 stitching, easy operation, plug and play;+
*intput support 4k 30HZ;
*output support 1920x1080P 60Hz
*Support Six HDM output, one 3.5mm stereo output.
*Supports RS232
*Supports remote control
*DC5V / 2A power supply

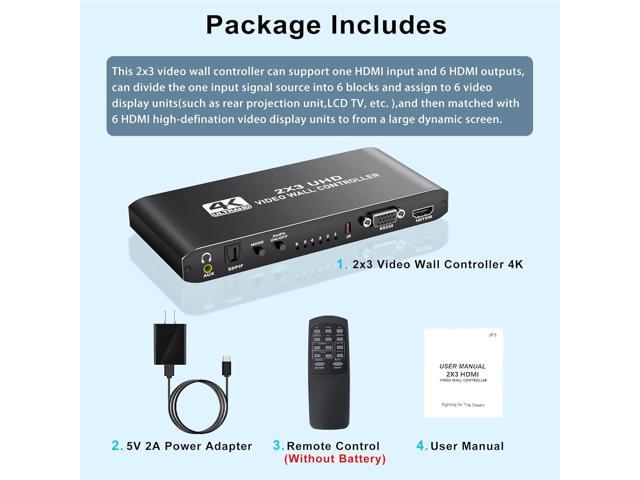

3x2 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1. Plug and play, no need install driver. With quick heat absorption and dissipation, more durable. Gold-plated port can reduce data transmission loss and improve signal transmission speed. So this 1080P HDMI video wall controller is the best choice for shopping mall video exhibition, video conference, security monitor and other large screen splicing display.
