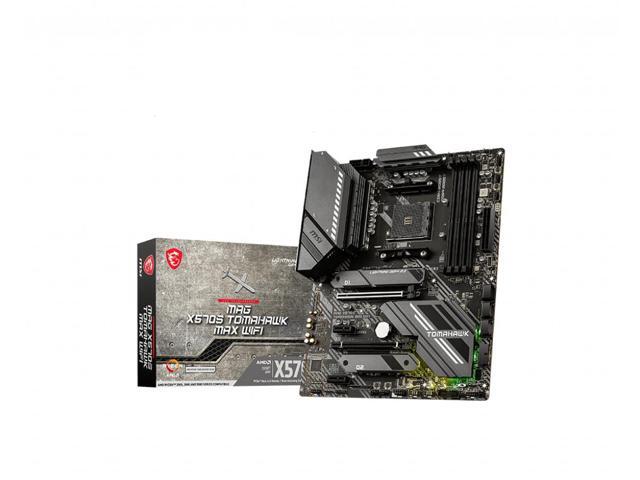

    MSI MAG X570S TOMAHAWK MAX WIFI AM4 AMD X570 SATA 6Gb/s ATX AMD Motherboard

    Be the first to review this product...
    • AMD X570
    • Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series and 2000 G-Series processors
    • DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 (by JEDEC)
    • Max overclocking frequency by A-XMP OC mode:
    • For Ryzen 5000 G-Series & 4000 G-Series processors
    • - 1DPC 1R Max speed up to 5100
    • - 1DPC 2R Max speed up to 4000
    • - 2DPC 1R Max speed up to 4266
    • - 2DPC 2R Max speed up to 3600
    • For Ryzen 5000 Series & 3000 Series processors
    • - 1DPC 1R Max speed up to 5100
    • - 1DPC 2R Max speed up to 3866
    • - 2DPC 1R Max speed up to 4000
    • - 2DPC 2R Max speed up to 3600
    +
    +
    Specs
    Reviews

    Learn more about the MSI MAG X570S TOMAHAWK MAX WIFI

    Model
    Brand MSI
    Model MAG X570S TOMAHAWK MAX WIFI
    Supported CPU
    CPU Socket Type AM4
    CPU Type Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series and 2000 G-Series processors*

    * Please go to msi.com to get the newest support status as new processors are released.
    Chipsets
    Chipset AMD X570
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 (by JEDEC)

    Max overclocking frequency by A-XMP OC mode:
    For Ryzen 5000 G-Series & 4000 G-Series processors
    - 1DPC 1R Max speed up to 5100
    - 1DPC 2R Max speed up to 4000
    - 2DPC 1R Max speed up to 4266
    - 2DPC 2R Max speed up to 3600

    For Ryzen 5000 Series & 3000 Series processors
    - 1DPC 1R Max speed up to 5100
    - 1DPC 2R Max speed up to 3866
    - 2DPC 1R Max speed up to 4000
    - 2DPC 2R Max speed up to 3600
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    ECC Supported Non-ECC
    Buffer Supported Un-buffered
    Expansion Slots
    PCI Express 4.0 x16 2 x PCI Express 4.0 x16*

    * Actual support may vary by CPU.
    PCI Express x1 2 x PCIe 3.0 x1
    Storage Devices
    SATA 6Gb/s 6 x SATA 6Gb/s
    M.2 2 x M.2 slots (Key M):
    - Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors
    - Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
    - Supports up to SATA 6Gb/s

    M2_1 slot (from Processor)
    - Support 2280/22110 storage devices

    M2_2 slot (from AMD X570 Chipset)
    - Supports 2242/2260/2280 storage devices
    SATA RAID 0/1/10
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Onboard Audio
    Audio Chipset Realtek ALC4080
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek 8125B
    Max LAN Speed 2.5Gbps
    Wireless LAN Intel Wi-Fi 6E AX210
    802.11a/b/g/n/ac/ax
    Bluetooth Bluetooth 5.2
    Rear Panel Ports
    Back I/O Ports 1 x HDMI
    1 x LAN (RJ45)
    1 x PS/2 Keyboard/Mouse Combo
    2 x USB 2.0/1.1
    2 x USB 3.2 Gen 1 Type-A
    1 x USB 3.2 Gen 2 Type-C
    3 x USB 3.2 Gen 2 Type-A
    Flash BIOS Button
    Wi-Fi Antenna
    1 x Optical S/PDIF Out
    5 x Audio Jacks
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
    1 x USB 3.2 Gen 2 10Gbps Type-C port
    Other Connectors 1 x 4-pin CPU fan connector
    1 x 4-pin water-pump connector
    4 x 4-pin system fan connectors
    1 x Front panel audio connector
    2 x System panel connectors
    1 x Chassis Intrusion connector
    1 x TPM module connector
    1 x Serial port connector
    1 x Chassis Intrusion connector
    2 x 4-pin RGB LED connectors
    2 x 3-pin RAINBOW LED connectors
    4 x EZ Debug LED
    1 x EZ LED Control switch
    Physical Spec
    Form Factor ATX
    LED Lighting RGB
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    Software Feature
    Windows 11 Supported
    Features
    Features Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors

    Supports DDR4 Memory, up to 5100(OC) MHz

    Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

    2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

    Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs

    AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

    Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire
    Additional Information
    Date First Available October 05, 2024
