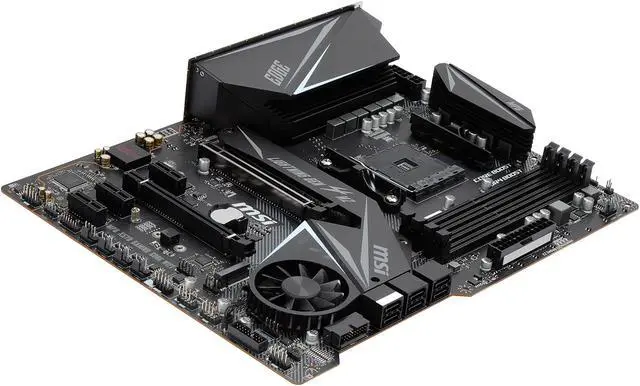

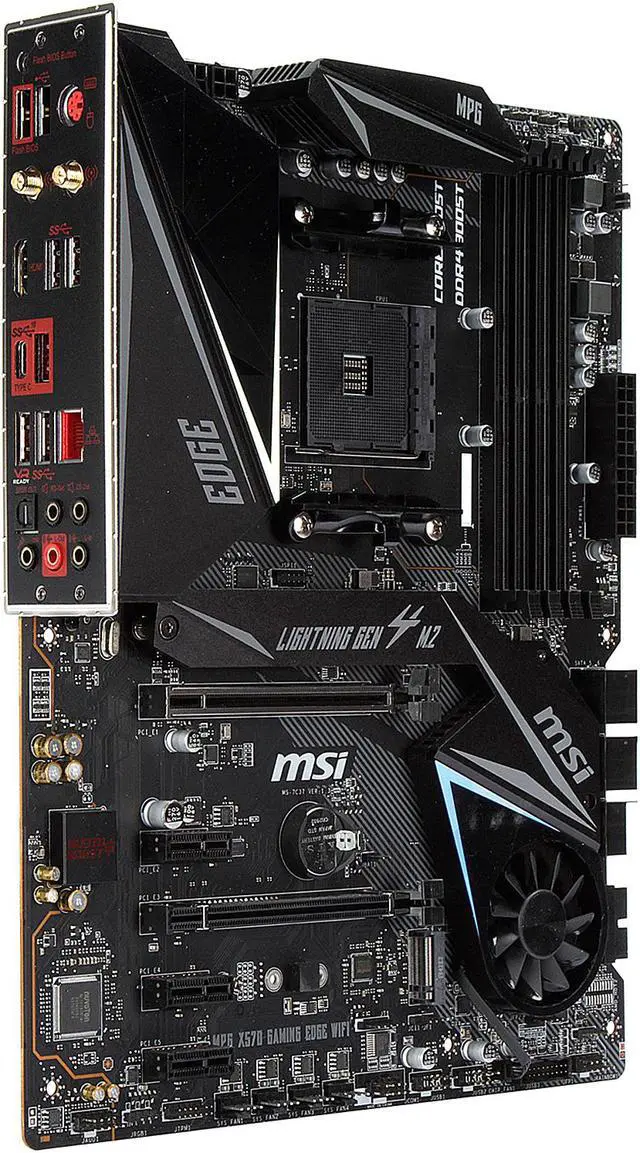

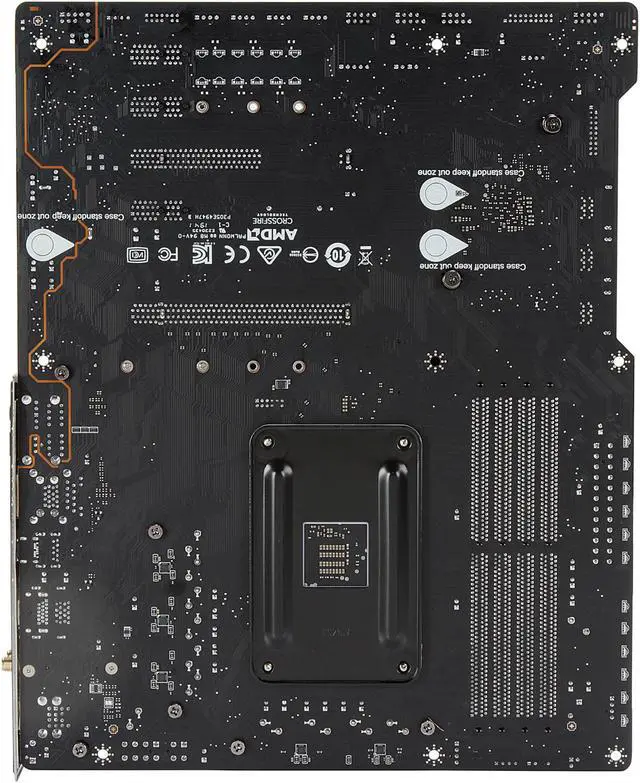

MSI MPG X570 GAMING EDGE WIFI AM4 AMD X570 ATX AMD Motherboard

REFURBISHED Product Type
(18)(3) Write a Review
  • AMD X570
  • Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket
  • 3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
  • 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
Specs
Reviews (18)

Learn more about the MSI MPG X570 GAMING EDGE WIFI

Model
Brand MSI
Model MPG X570 GAMING EDGE WIFI
Supported CPU
CPU Socket Type AM4
CPU Type Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket
Chipsets
Chipset AMD X570
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard 3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCIe 4.0/3.0 x16 slot (PCIE_1)
- 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode
- Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode
1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode)
PCI Express x1 3 x PCIe 3.0 x1 slots*
* The speeds may vary for different devices
Other Slots 1 x M2_3 Socket with E key
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
M.2 2 x M.2 slots (Key M):
M2_1 slot (from AMD Processor)
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)
- Supports 2242/2260/2280/22110 storage devices
M2_2 slot (from AMD X570 Chipset)
- Supports PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/2260/2280 storage devices
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic:

1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@24Hz

Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors
Maximum shared memory of 2048MB
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1-Channel High Definition Audio
Supports S/PDIF output
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 1Gbps
Wireless LAN Wi-Fi 1x1 802.11 AC by Intel 3168
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4 GHz, 5 GHz) up to 433 Mbps speed
Bluetooth Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

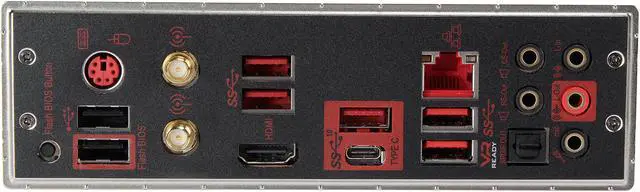

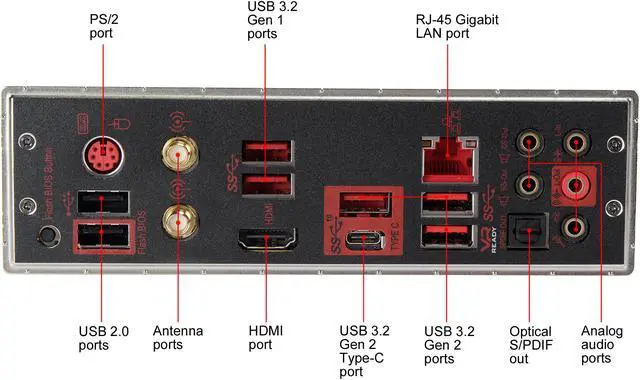

Rear Panel Ports
Back I/O Ports 1 x Flash BIOS Button
1 x WiFi/Bluetooth module
1 x PS/2 keyboard/mouse combo port
2 x USB 2.0 ports
1 x HDMI port
2 x USB 3.2 Gen1 ports
1 x LAN (RJ45) port
3 x USB 3.2 Gen2 Type A ports
1 x USB 3.2 Gen2 Type C port
5 x OFC audio jacks
1 x Optical S/PDIF OUT connector
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin water-pump connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Serial port connector
1 x Clear CMOS jumper
1 x Chassis Intrusion connector
2 x 4-pin RGB LED connectors
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LEDs
Physical Spec
Form Factor ATX
LED Lighting RGB

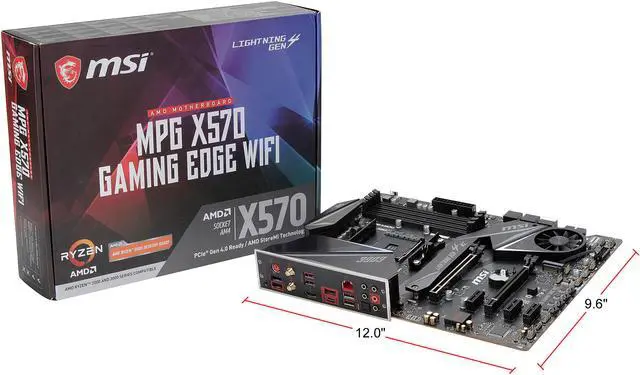

Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
Software Feature
Windows 11 Supported
Features
Features Multi-GPU Support:
Supports 2-Way AMD CrossFire Technology

I/O Controller:
NUVOTON NCT6797 Controller Chip

Hardware Monitor:
CPU/System/Chipset temperature detection
CPU/System/Chipset fan speed detection
CPU/System/Chipset fan speed control

BIOS Features:
Single BIOS
1 x 256MB flash
UEFI AMI BIOS
ACPI 6.1, SMBIOS 2.8
Multi-language

Special Features:
Audio
- Nahimic 3
- Audio Boost 4
Network
- Intel Wi-Fi
Storage
- Lightning Gen 4 M.2
- Turbo M.2
Fan
- Pump Fan
- GAMING Fan Control
- FROZR Heatsink Design
LED
- Mystic Light 3
- Mystic Light Extension (RGB)
- Mystic Light Extension (RAINBOW)
- Mystic light SYNC
- EZ DEBUG LED
Protection
- PCIe Steel Armor
- M.2 Shield Frozr
- Pre-installed IO shielding
Performance
- Multi GPU-CrossFire Technology
- DDR4 Boost
- Core Boost
- GAME Boost
- USB with type A+C
- AMD Turbo USB 3.2 Gen 2
BIOS
- Click BIOS 5
- Flash BIOS

Dragon Center Features:
DRAGON OPTIMIZATION
OC Performance
Hardware Monitor
True Color
Mystic Light
Live Update

Software:
Drivers
DRAGON CENTER
Nahimic Audio
CPU-Z MSI GAMING
MSI App Player (BlueStacks)
Google Chrome, Google Toolbar, Google
Drive
Norton Internet Security Solution
Packaging

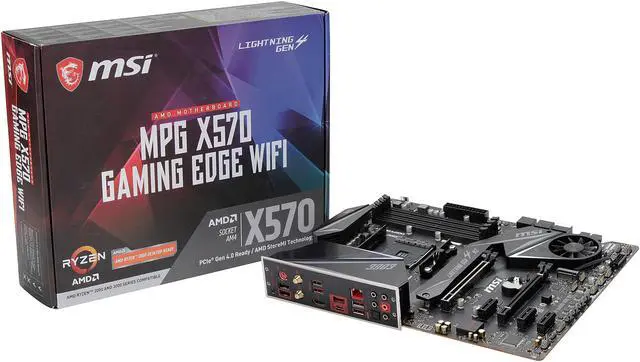

Package Contents Only Motherboard and IO shield and Sata cable
Additional Information
First Listed on Newegg June 02, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 90 days
  • Limited Warranty period (labor): 90 days
