Learn more about the NEC Display Solutions CB651Q-2
Model
Brand
NEC Display Solutions
Model
CB651Q-2
Cabinet Color
Black
Display
Touchscreen Type
IR touch
Panel
IPS
Screen Size
65"
Resolution
3840 x 2160 (4K)
Refresh Rate
60 Hz
Viewing Angle
178° (H) / 178° (V)
Display Colors
10bit
Brightness
300/m2 (Typical) 350cd/m2 (Max)
Contrast Ratio
1200:1
Response Time
9ms
Connectivity
Touchscreen Interface
USB
Input Video Compatibility
Analog RGB, Digital
Connectors
3 x HDMI 2.0 1 x 3.5mm Mini Jack External Control: RS232C (9pin D-Dub), LAN (RJ-45), 6 x USB Type A 2.0, 2 x USB Type B Optical
D-Sub
VGA 15pin D-Sub
USB 2.0
USB 2.0 x6 5V/2A Powered, USB Type-B (Upstream), USB x 2 (Both for touch)
Power
Power Supply
4.0A @ 100V, 1.6A @ 240V
Power Consumption
215W (Brightness Max), 400W (All Functions Maxed)
Convenience
Regulatory Approvals
Energy Star Compliance: 7.0 UL/C-UL RoHS
VESA Compatibility - Mountable
600 x 400mm
Features
Bezel Width (L/R, T/B): 1.3/1.3, 1.3/2in 34.2/34.2, 34.2/52mm Pixel Pitch: 67 Active Screen Area (W x H): 56.2 x 31.6in / 1428.5 x 803.5mm Aspect Ratio: 16:9 Protective/Touch Panel: IR touch with Anti-Glare Bezel Width (L/R, T/B): 1.3/1.3, 1.3/2in 34.2/34.2, 34.2/52mm Ethernet control: RJ-45 RS-232C control: RS232C (9pin D-Dub) Expansion Slot: OPS Operating Temperature: 32 degree F 0 degree C-104 degree F Operating Humidity: <90%

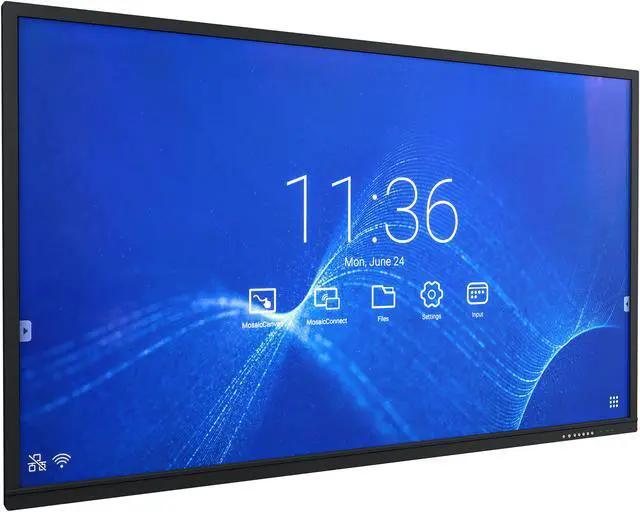

65" UHD collaborative display with integrated 10pt IR touch and built in Android SoC. Includes Mosaic wireless presentation and Mosaic Canvas interactive whiteboard software, browser, and annotation tools.OPS slot, 3x HDMI 2.0, VGA, LAN, 6x USB, RS-232, 350cd/m2 MAX, wall mount included
Packaging
Package Contents
Accessories Included 10W integrated speakers, 2 passive stylus, Mosiac Canvas whiteboarding software, Mosaic Connect wireless presentation software, wall mount, integrated 10pt IR touch w/ Anti-Glare glass, Built in SoC w/ Android 8.0
Dimensions
Dimensions (H x W x D)
36.00" x 59.80" x 3.90"
Weight
88.60 lbs.
Additional Information
First Listed on Newegg
December 31, 2020
