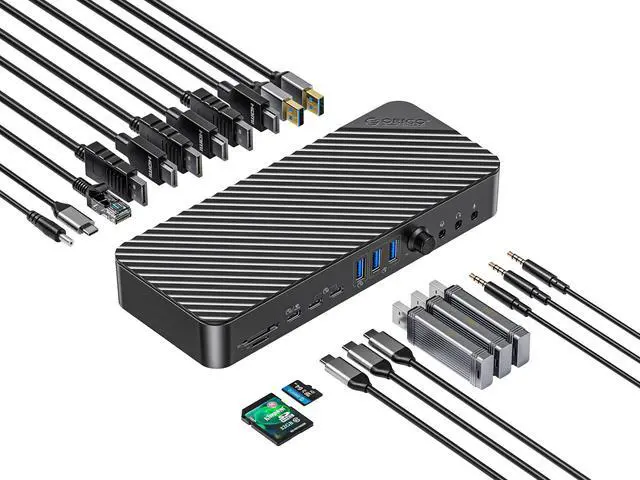

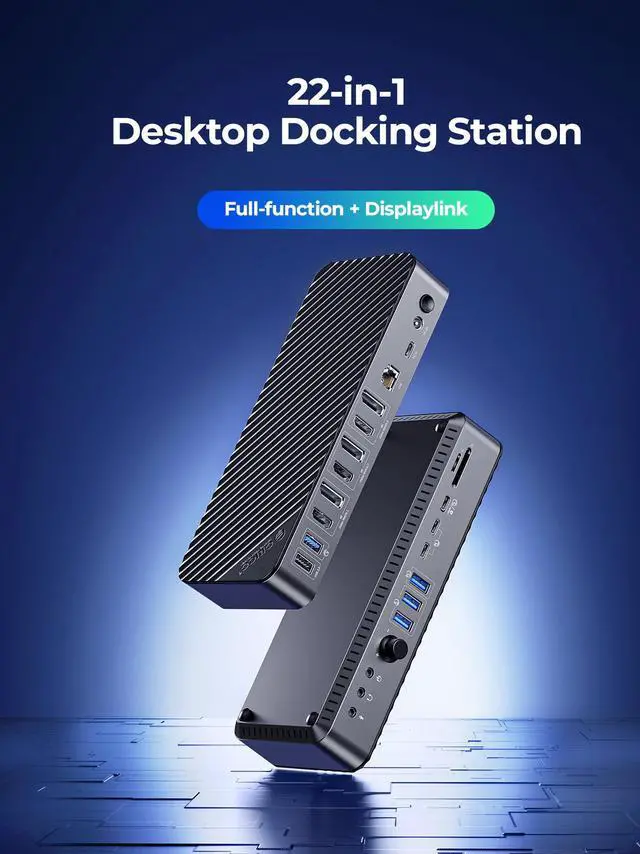

ORICO Enterprise-Level USB C Universal Docking Station, 22-in-1 Ultra 8K Dual 4K HD Multiple-Display Dock with 3 HDMI/4 Dispaly/60W PD Charging/18W PD/ 3.5mm Audio RJ45 USB 3.0 & 2.0 Ports, SD TF Card

The DisplayLink chip solution is a connection technology that realizes the connection of the display to the computer through the USB interface, which can connect the computer and multiple display devices very simply and conveniently. This technology can extend the desktop of the virtual computer through the USB interface. Up to 4 monitors can simultaneously display 32-bit color in any resolution. Simply put, by installing a driver on the computer, simulating multiple display devices in the system, transmitting compressed data to the DisplayLink chip in the docking station through the USB-C interface, converting it to DP signal or HDMI signal, thereby driving multiple displays.

Features:
5 screens Display USB C Dongle Adapter: HDMI-4K@60Hz 2 ports & HDMI-8K@30Hz 1 port &DP4K@60Hz 2 ports &DP8K@30Hz 1 port
With 3.5 mm Audio RJ45 USB 3.0 & 2.0 Ports, SD TF Card Reader, Gigabit Ethernet

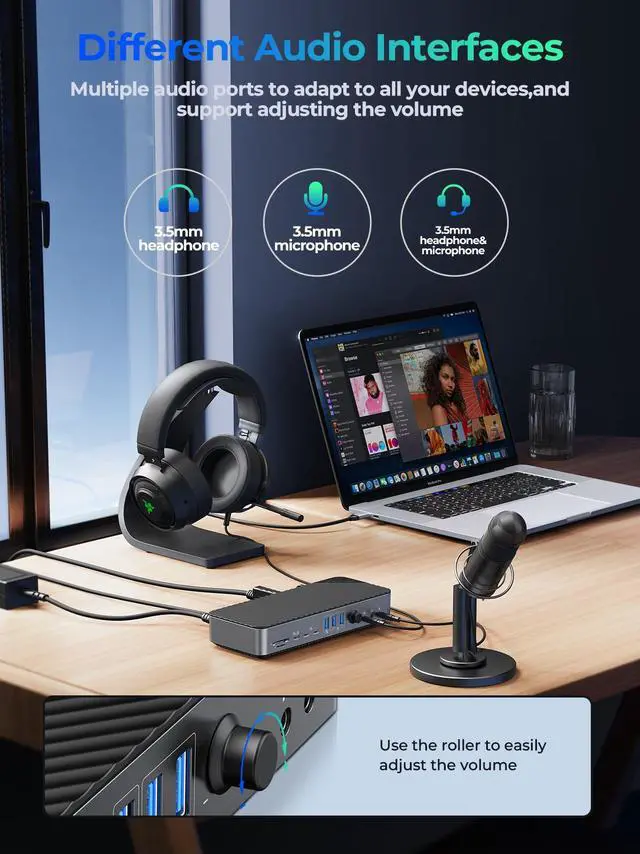

Rotate the audio adjustment design, the volume can be adjusted at any time instead of the computer

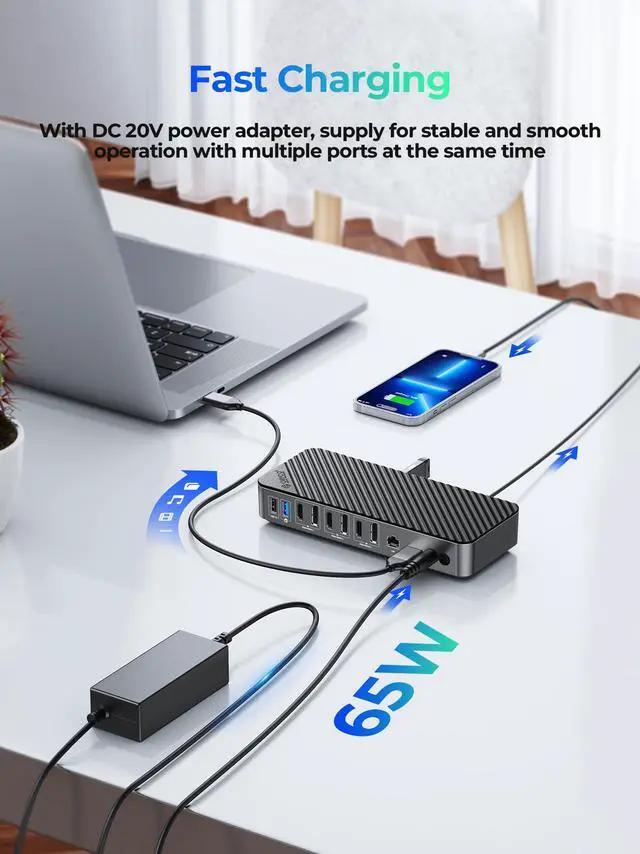

USB-C charging interface, PD60W (only for Laptop) and Type-C 3.2 Gen2 PD18W, easy to charge computers and mobile phones

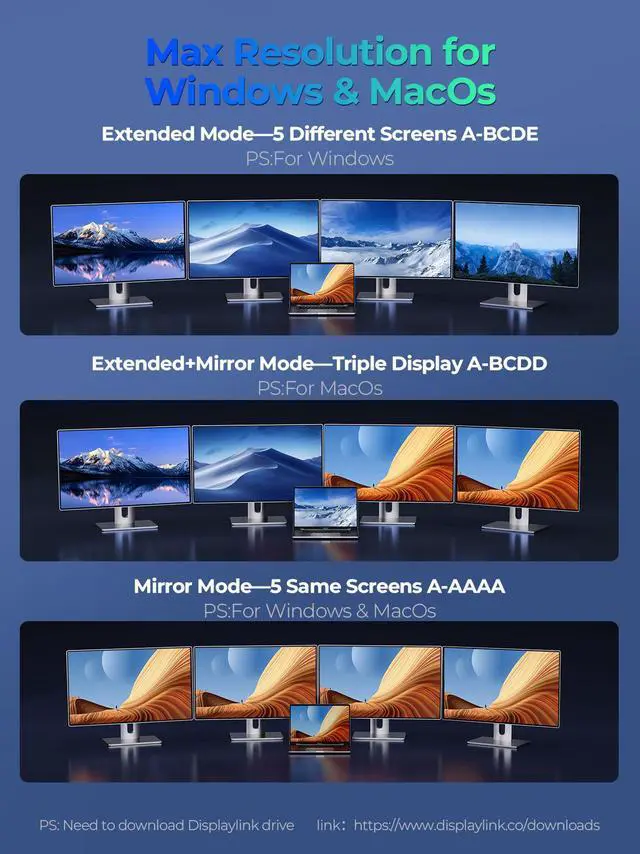

Screen mode: MAC OS: AAA/ABB; Windows: AAA/ABB
Supported systems: Windows, Mac OS, Linux, Android

Specifications

:
Brand: ORICO
Model: ORICO-DKA19
Material: Aluminum Alloy +ABS
Size: 209.8 * 85.8 *38mm
Color: Black
Input interface: USB-C

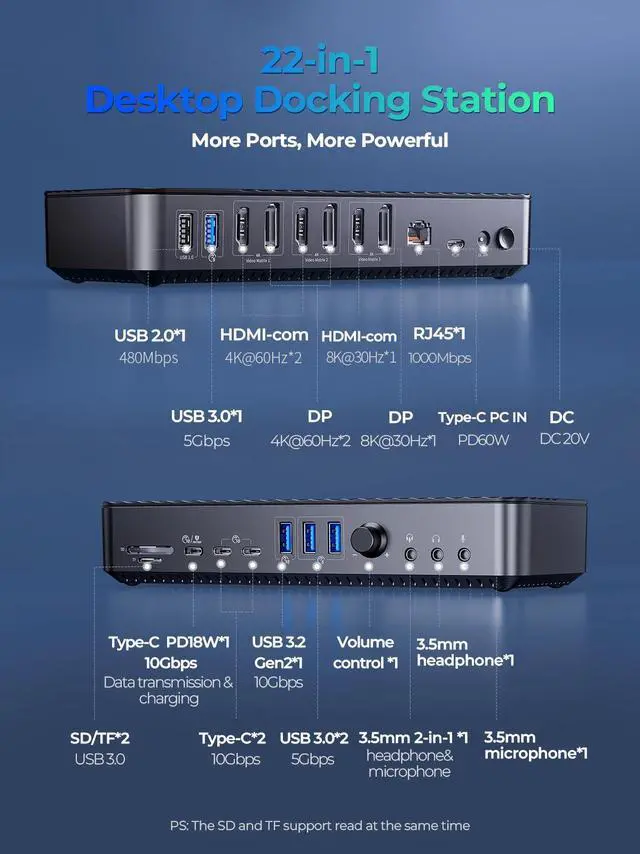

Output Ports Spec:
Type-C PD60W*1
Type-C 3.2 Gen2 PD18W*1
Type-C 3.2 Gen2*2
USB 2.0 *1
USB 3.0 *3
RJ45*1
SD/TF*2
3.5 mm headphone*1
3.5 mm microphone*1
3.5 mm headphones/microphone*1
HDMI-com 4K@60Hz*2
HDMI-com 8K@30Hz*1
DP 4K@60Hz*2
DP 8K@30Hz*1
Volume adjustment *1
Transfer Rate: 5Gbps
Power Adapter: 20V 3.25A 65W
Supported systems: Windows, Mac OS, Linux, Android

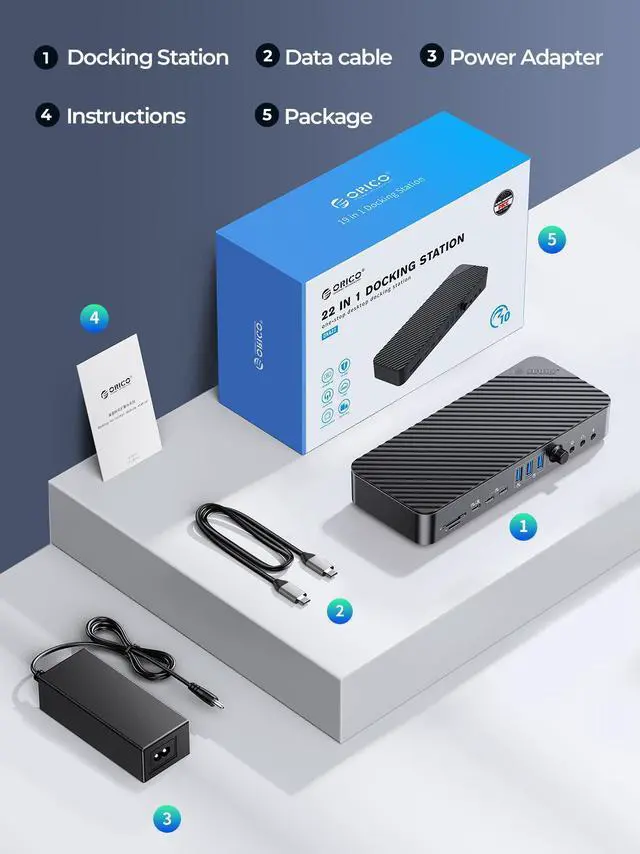

What in the Box:
1 x ORICO USB C Docking Station
1 x Type C Date Cable (100cm)
1 x Power Adapter
1 x User Manual

Note:
1. Not all computers with a type-c interface can be used with docking of the mst solution! The type-c port of your pc should support video oput, or the docking could not work (If you are not sure, pls contact us, we will help you confirm that)
2. For Mac OS, the docking could support to extend one monitor only, the external monitors will display the same screen
3. The Type-C PD60W port only supports to charging Laptops
4.
Displaylink driver download address:
https: //www. displaylink. com/downloads
